Home >> Toyota >> 2012 >> Camry LE >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Electrical Wiring Routing (Except Hybrid) >> Electrical Wiring Routing >> Position of Parts in Seat >> TMMK Made

TMMK Made

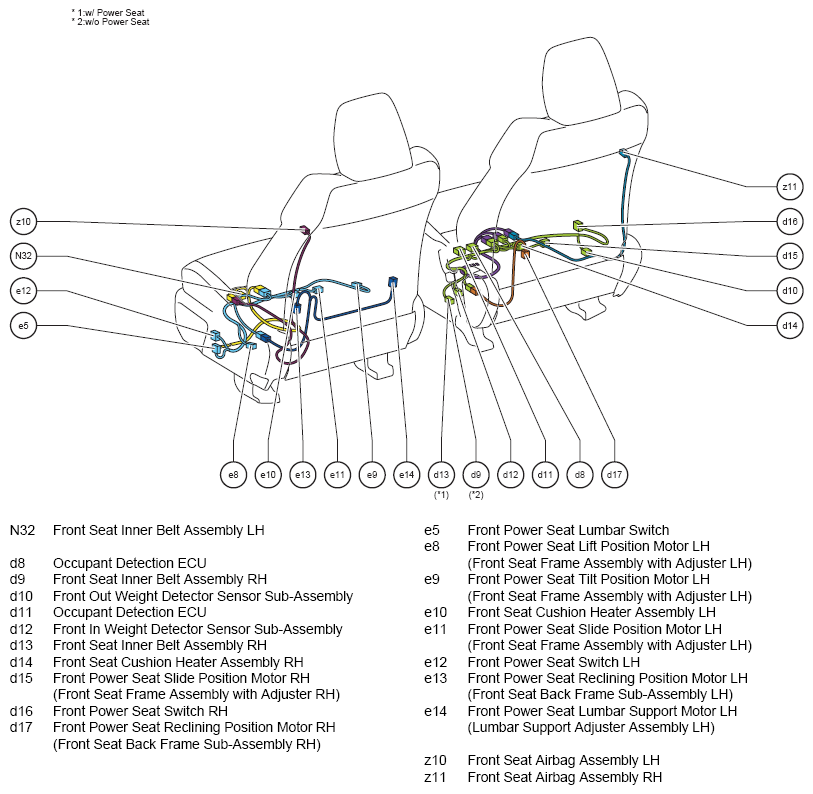

Fig 1: Seat Parts (TMMK Made)

G08798039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
