Position of Parts in Engine Compartment: 2AR-FE

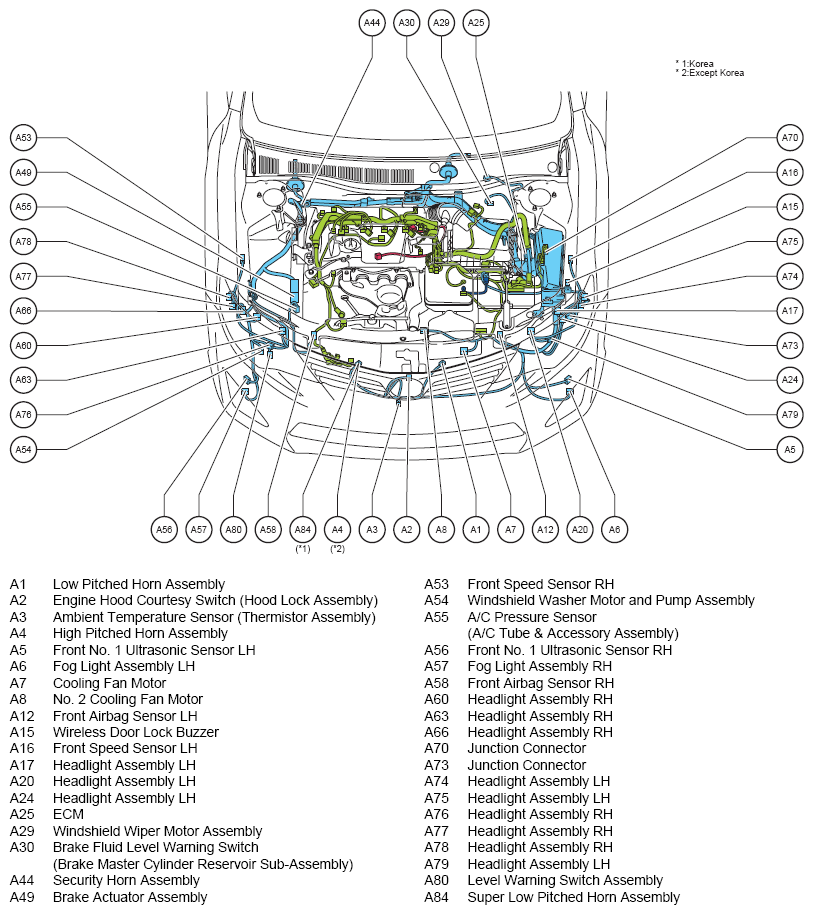

Fig 1: Engine Compartment Parts (2AR-FE; 1 Of 2)
G08798029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

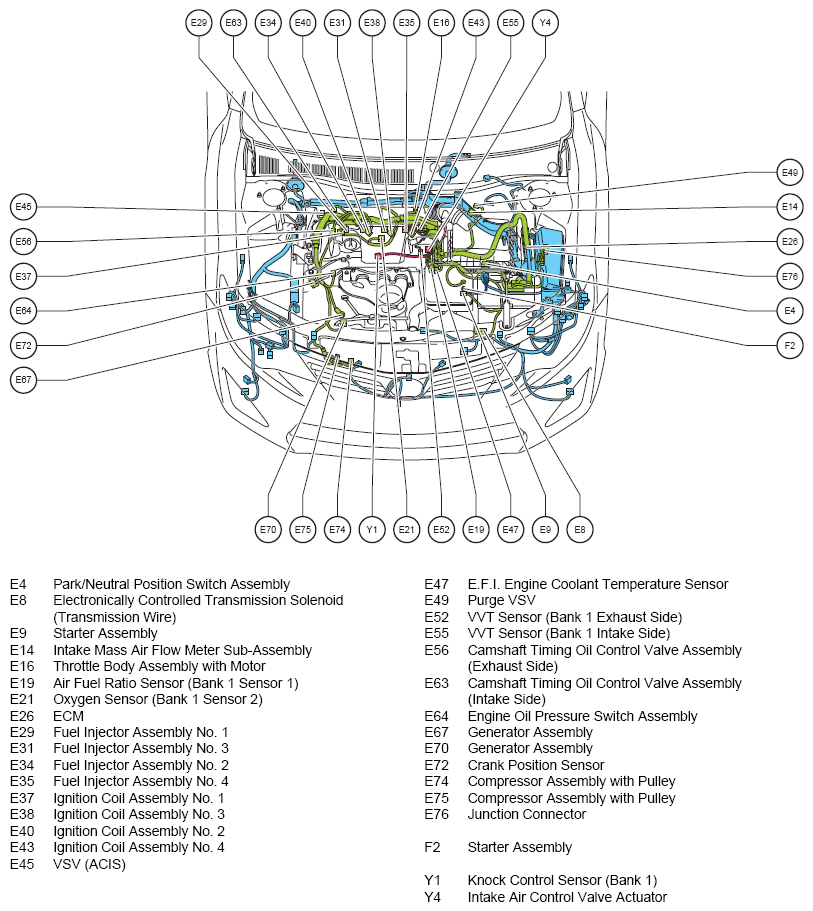

Fig 2: Engine Compartment Parts (2AR-FE; 2 Of 2)
G08798030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
