: Location of Connector Joining Wire Harness and Wire Harness: Overview

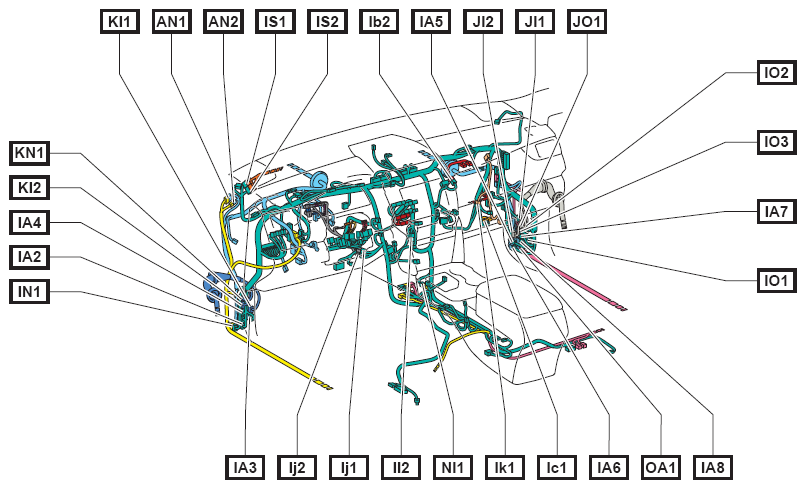

Fig 1: Locating Wiring Harnesses
G08798043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

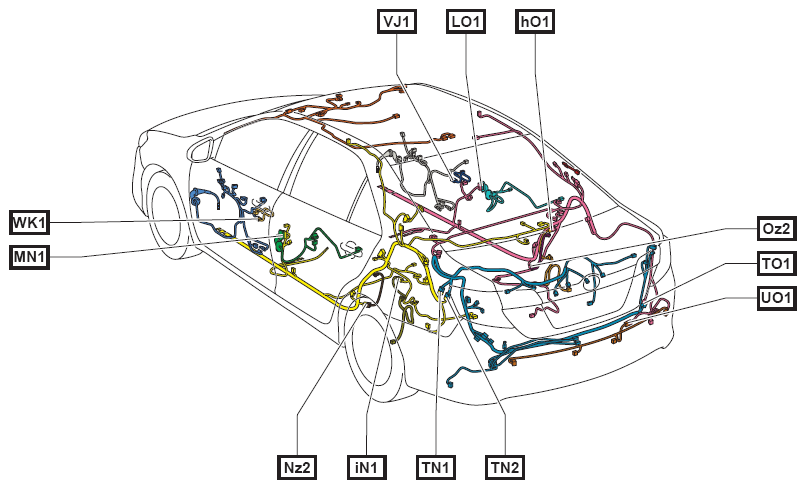

Fig 1: Locating Wiring Harnesses
G08798045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
