: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points: 2GR-FE

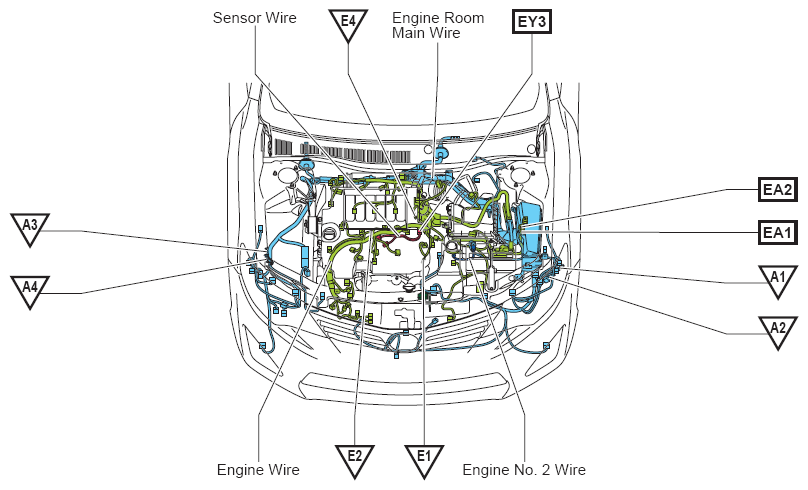

Fig 1: Locating Wiring Harnesses & Ground Points (2GR-FE)
G08798041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
