: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points: 2AR-FE

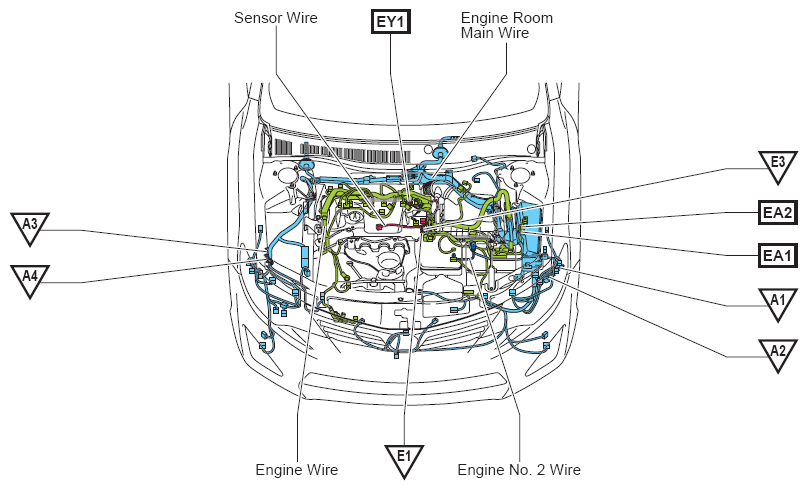

Fig 1: Locating Wiring Harnesses & Ground Points (2AR-FE)
G08798042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
