Starting System (w/o Smart Key System)

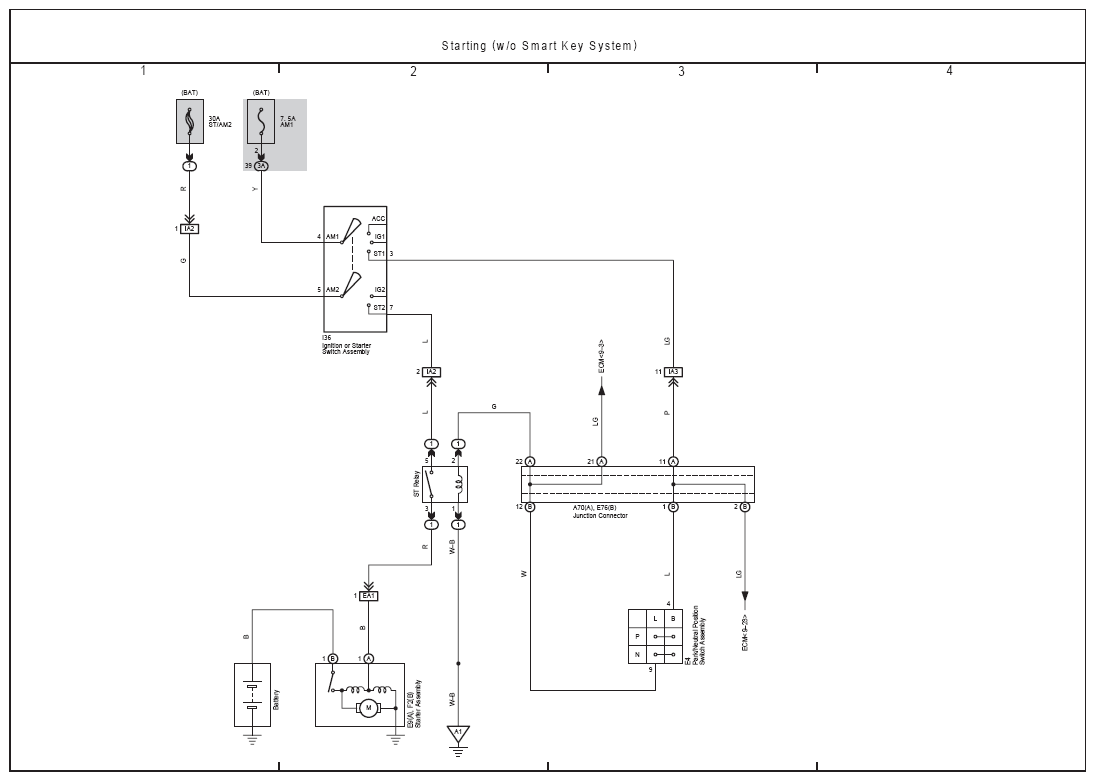

Fig 1: Starting System (w/o Smart Key System) Electrical Wiring Diagram

G08798742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
