Seat Heater (TMMK Made)

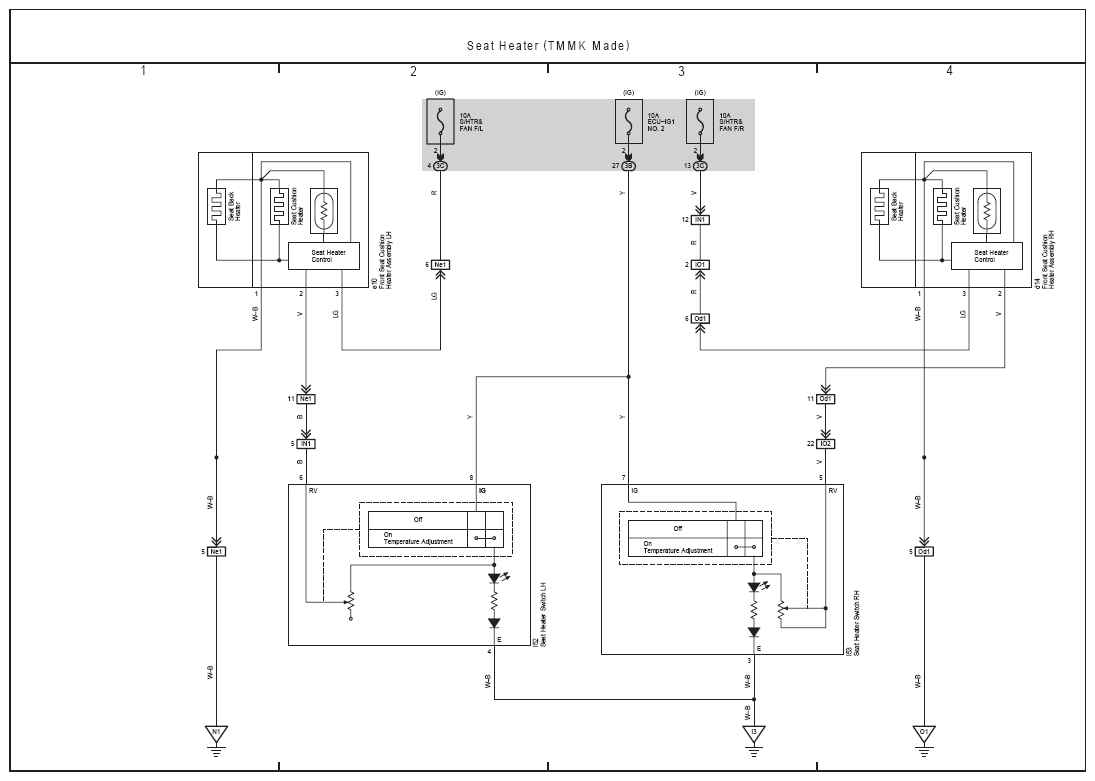

Fig 1: Seat Heater (TMMK Made) Electrical Wiring Diagram

G08798798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
