SRS, Seat Belt Warning

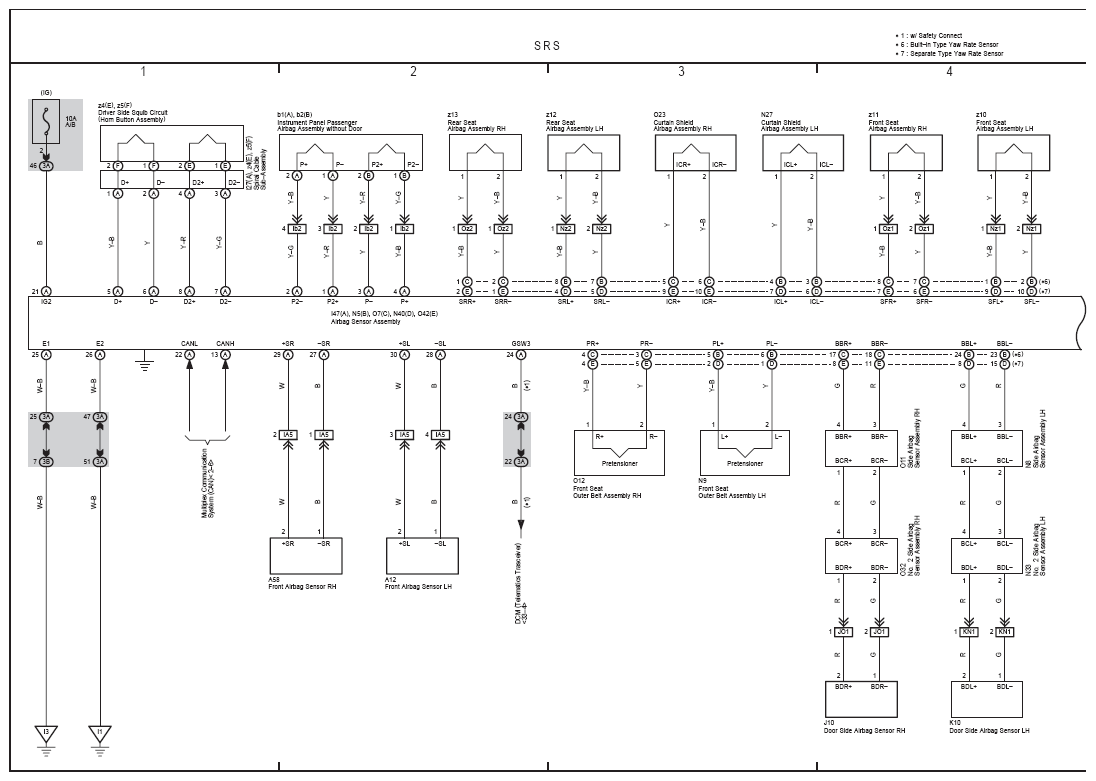

Fig 1: SRS Electrical Wiring Diagram
G08798783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

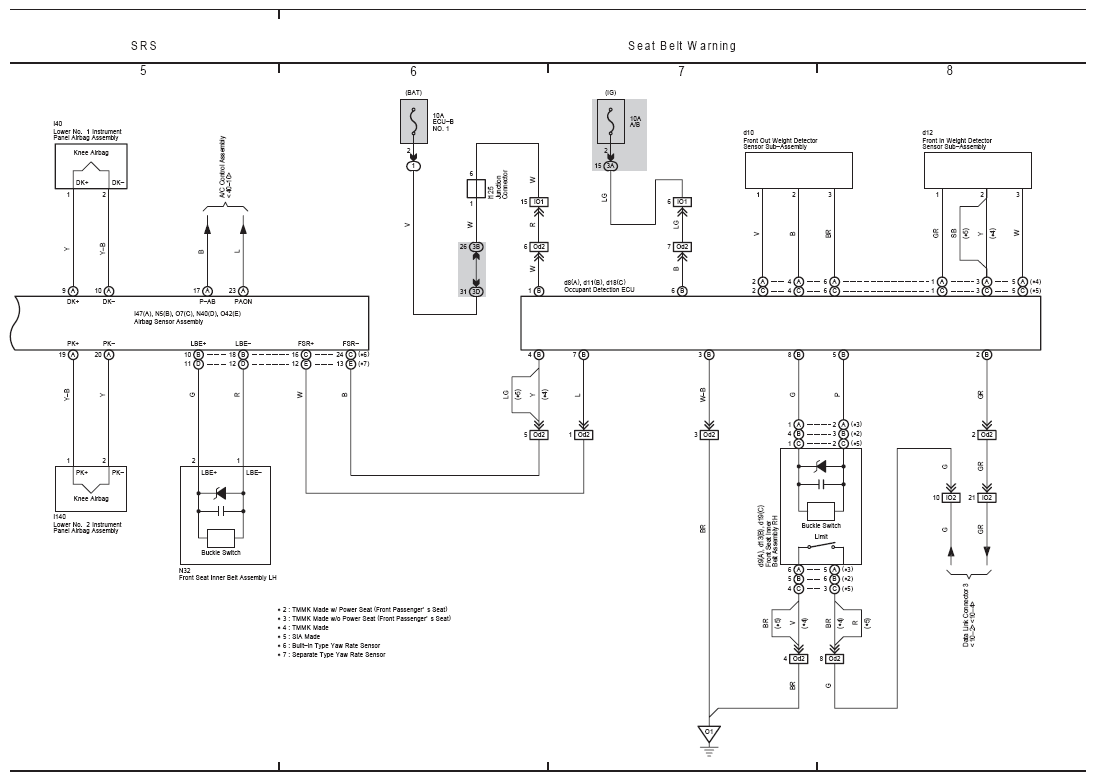

Fig 2: Seat Belt Warning Electrical Wiring Diagram (1 Of 2)
G08798784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

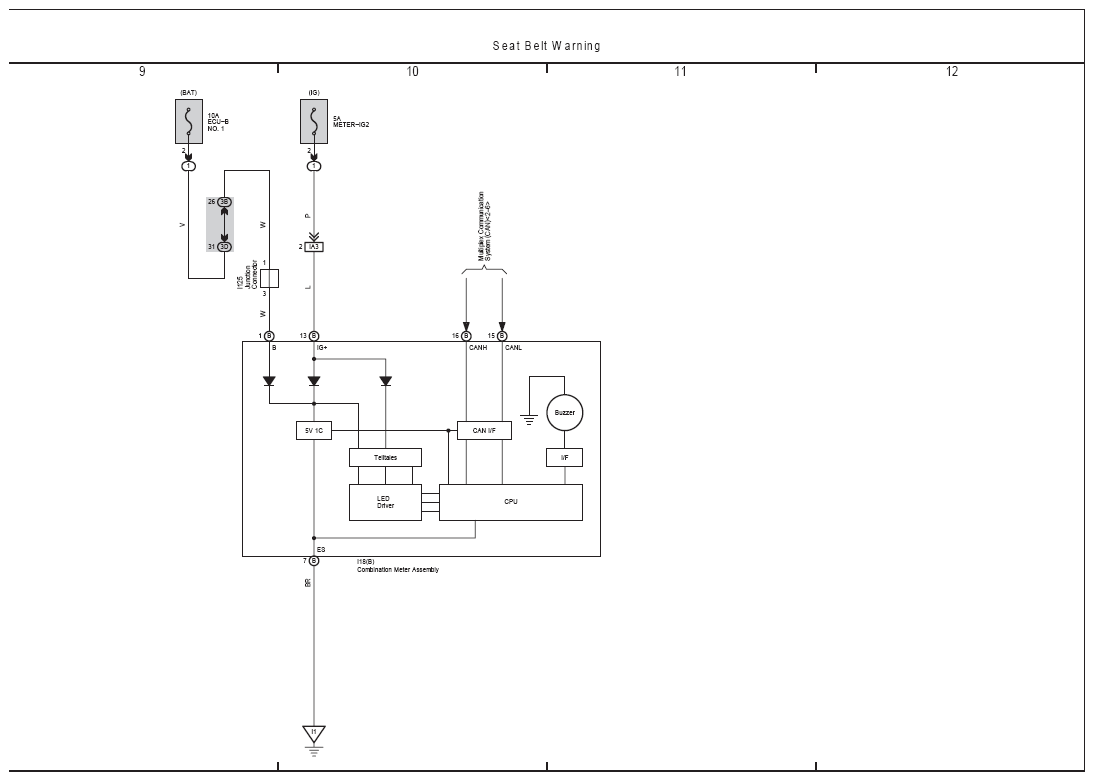

Fig 3: Seat Belt Warning Electrical Wiring Diagram (2 Of 2)
G08798785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
