Overall Electrical Wiring Diagram
>>
Remote Control Mirror
Remote Control Mirror

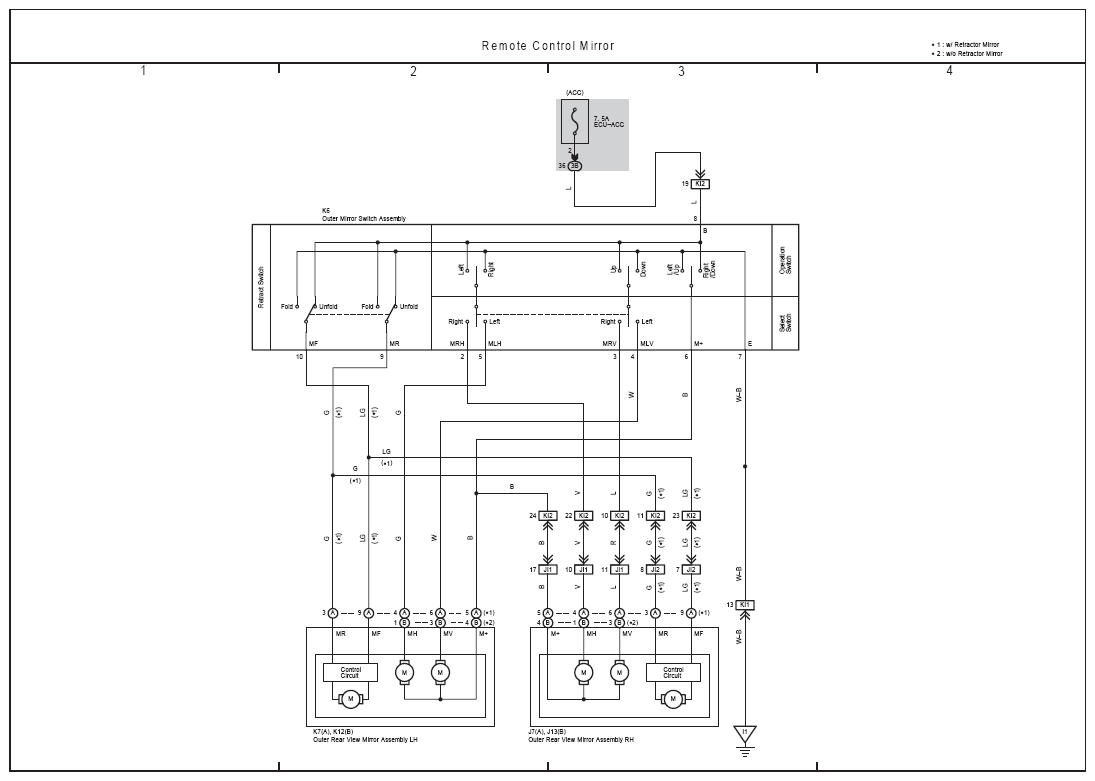

Fig 1: Remote Control Mirror Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
