Power Source

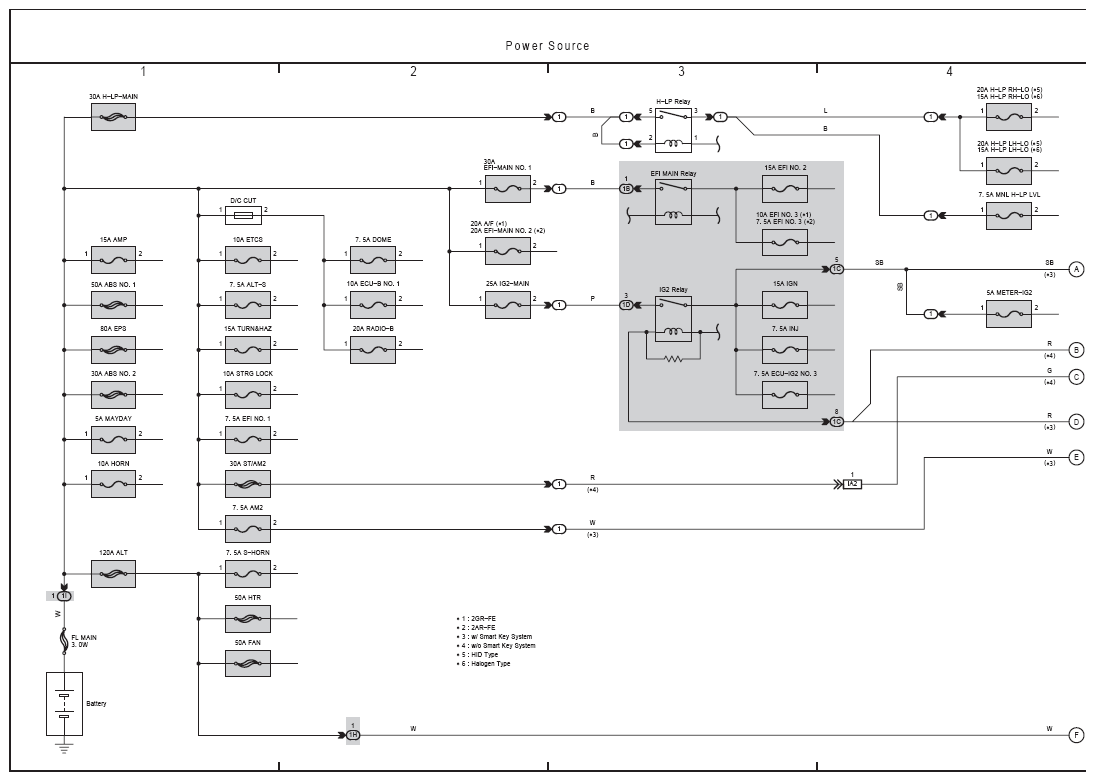

Fig 1: Power Source Electrical Wiring Diagram (1 Of 2)
G08798733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

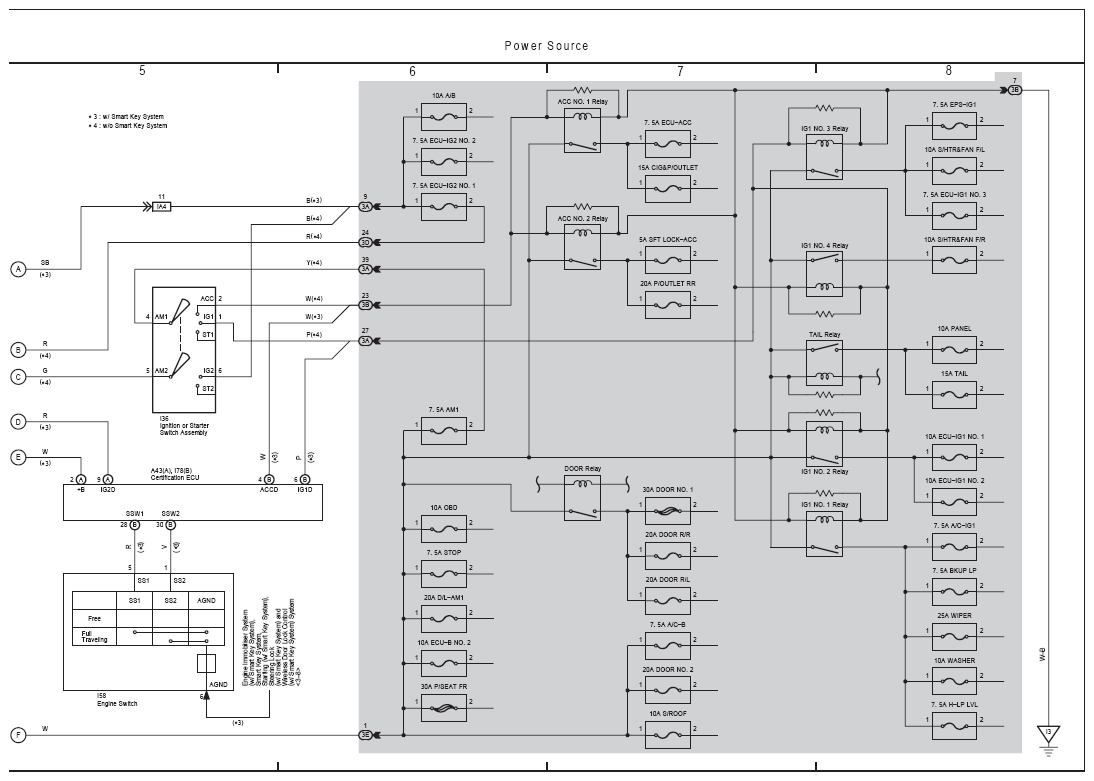

Fig 2: Power Source Electrical Wiring Diagram (2 Of 2)
G08798734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
