Ignition (2GR-FE)

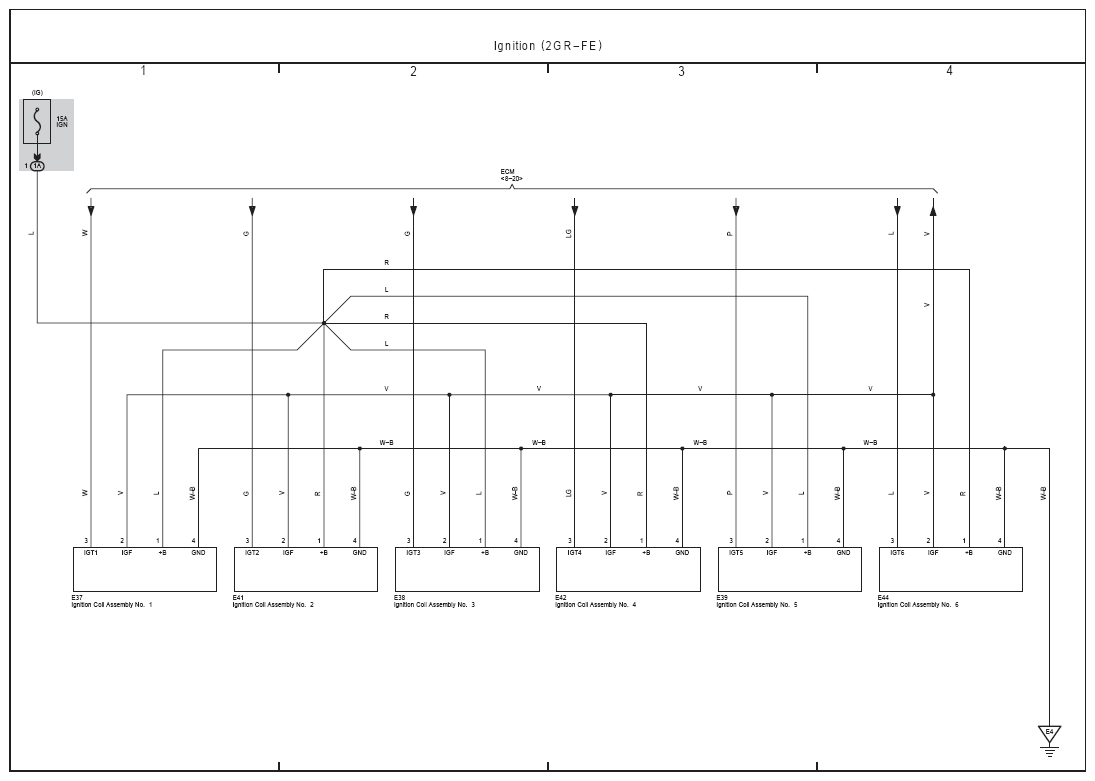

Fig 1: Ignition System Electrical Wiring Diagram (2GR-FE)

G08798744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
