Headlight Beam Level Control (Automatic)

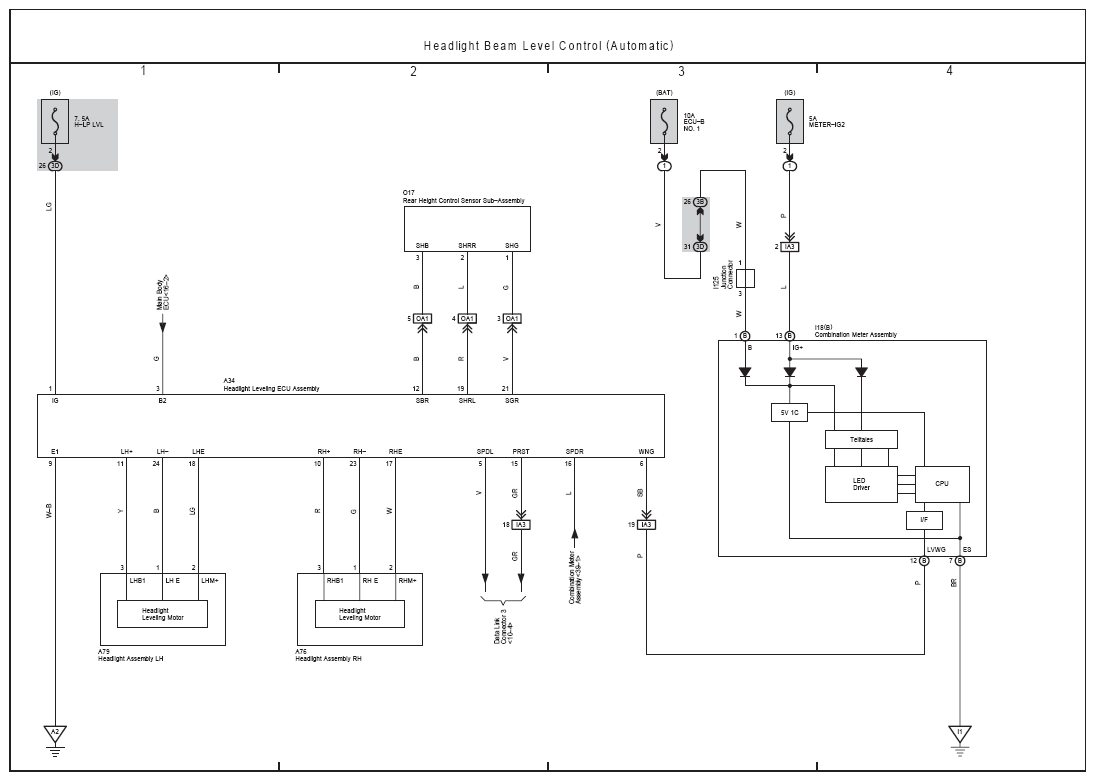

Fig 1: Headlight Beam Level Control (Automatic) Electrical Wiring Diagram

G08798768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
