Engine Immobilizer System (w/o Smart Key System)

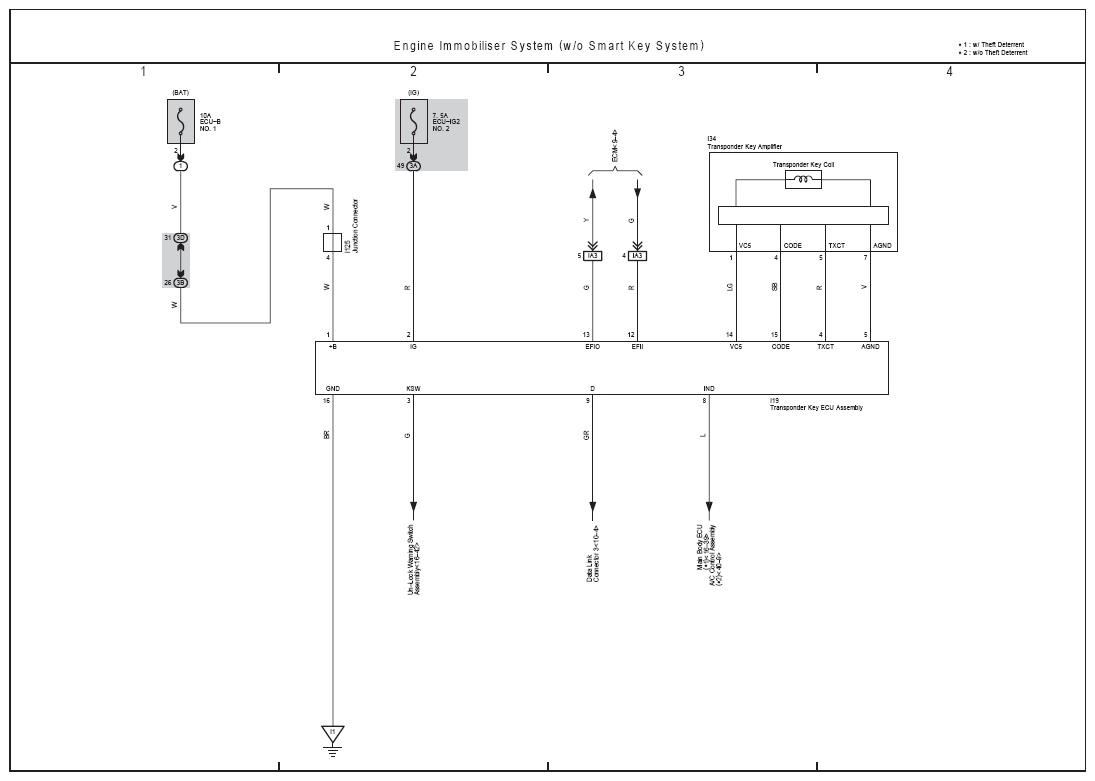

Fig 1: Engine Immobilizer System (w/o Smart Key System) Electrical Wiring Diagram

G08798765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
