EPS (2GR-FE)

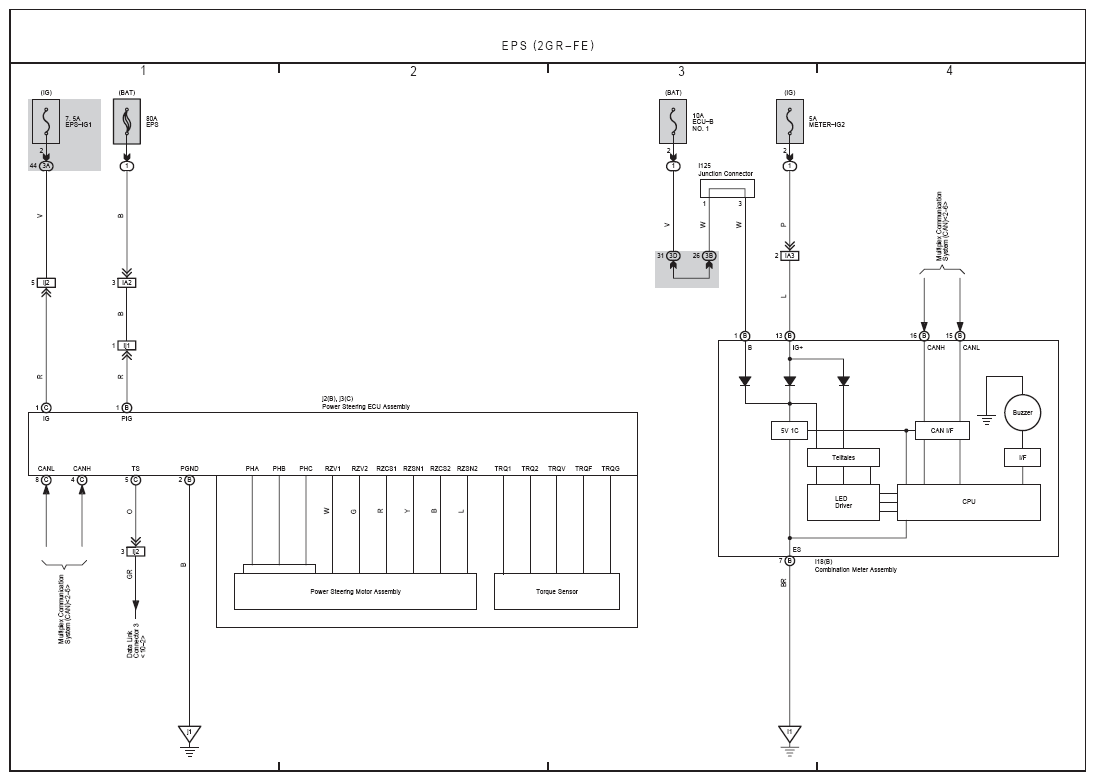

Fig 1: EPS Electrical Wiring Diagram (2GR-FE)

G08798786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
