Clock, Mirror Heater, Rear Window Defogger

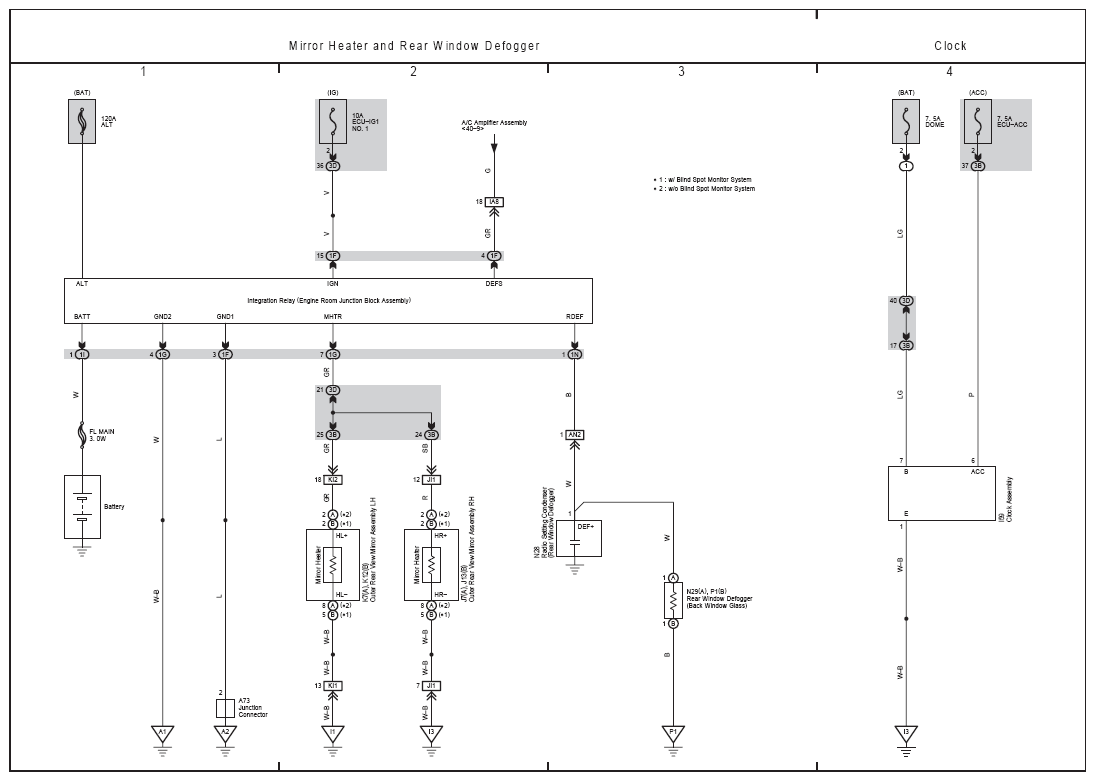

Fig 1: Clock, Mirror Heater And Rear Window Defogger Electrical Wiring Diagram

G08798797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
