Overall Electrical Wiring Diagram: Charging

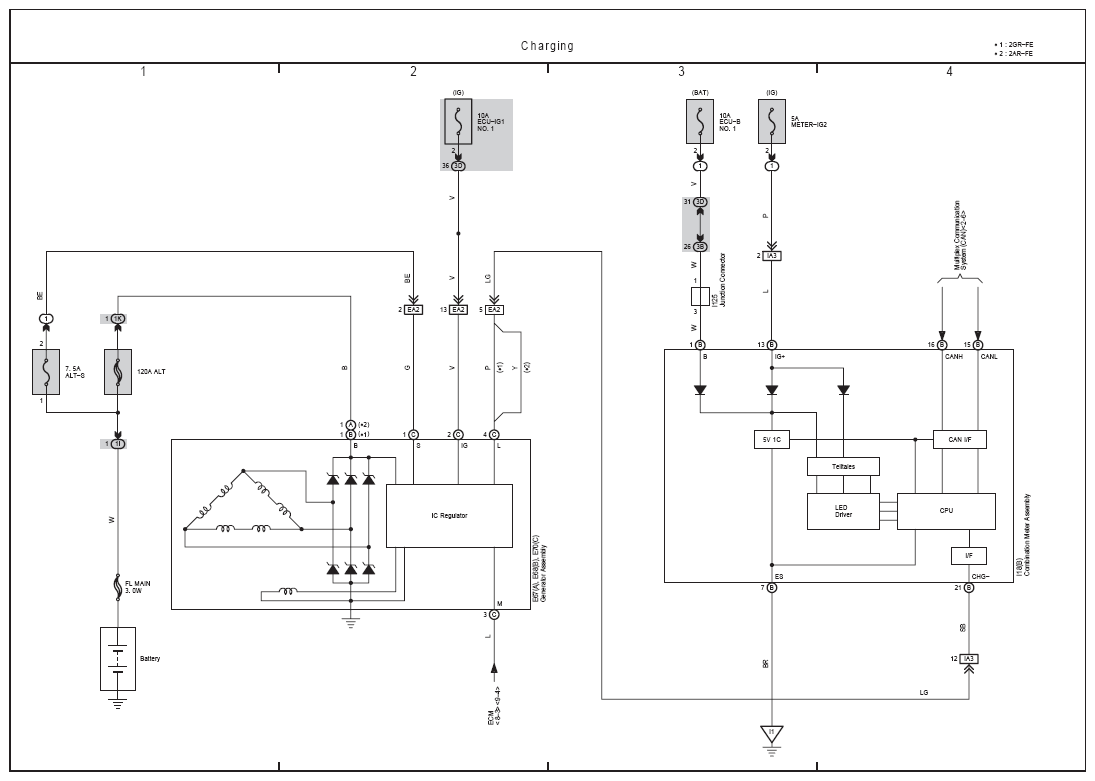

Fig 1: Charging System Electrical Wiring Diagram

G08798743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
