Overall Electrical Wiring Diagram
>>
Back-Up Light, Stop Light
Back-Up Light, Stop Light

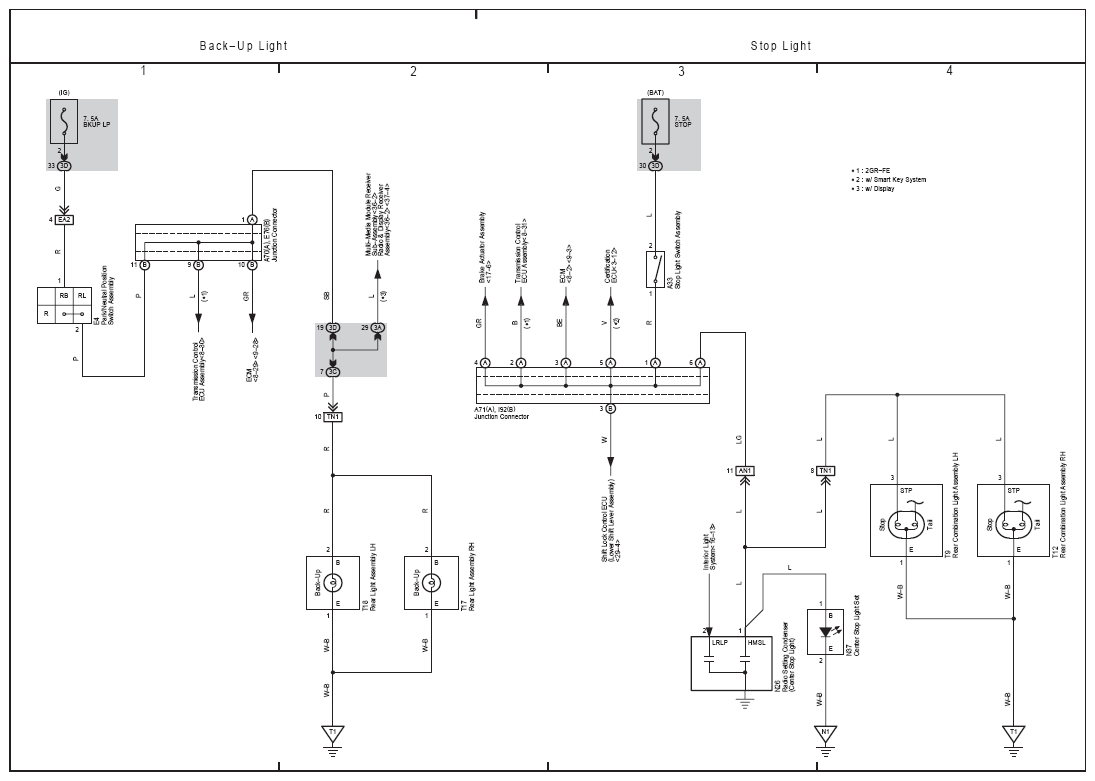

Fig 1: Back-Up Light And Stop Light Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
