Overall Electrical Wiring Diagram
>>
Automatic Glare-resistant EC Mirror With Compass, Option Connector (Automatic Glare-Resistant EC Mirror), Power Outlet
Automatic Glare-resistant EC Mirror With Compass, Option Connector (Automatic Glare-Resistant EC Mirror), Power Outlet

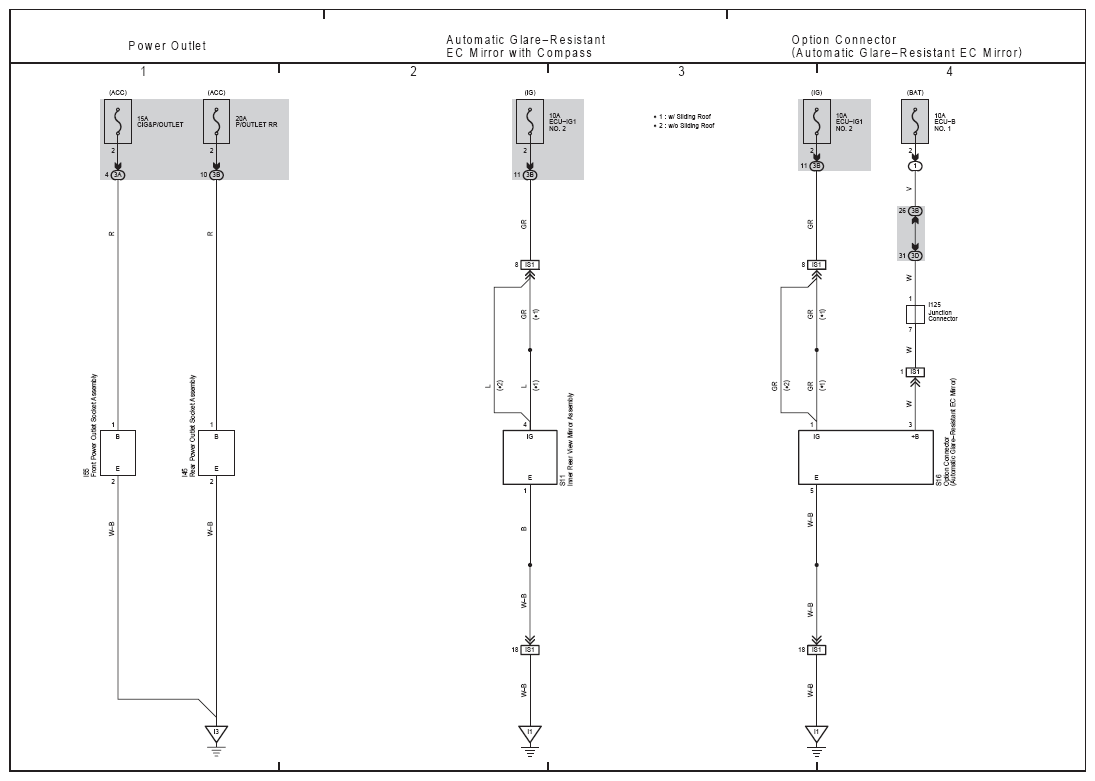

Fig 1: Automatic Glare-resistant EC Mirror With Compass, Option Connector (Automatic Glare-Resistant EC Mirror) And Power Outlet Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
