Audio, Navigation, Parking Assist (6 Speaker)

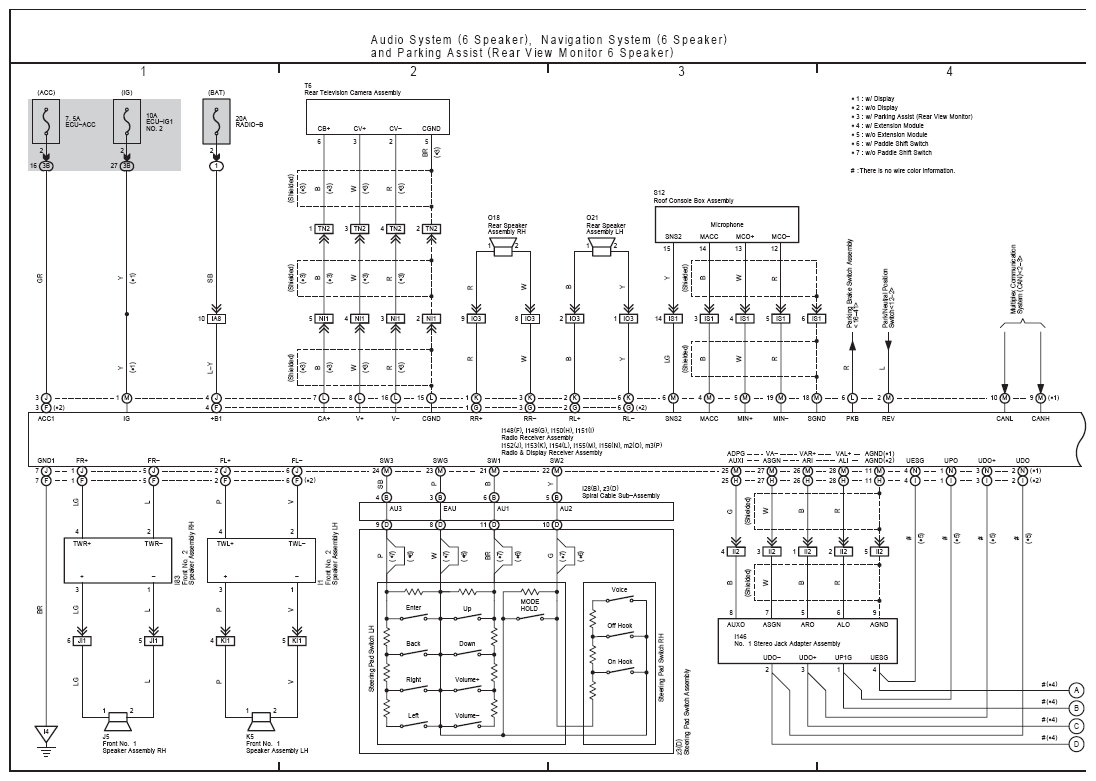

Fig 1: Audio, Navigation And Parking Assist (Rear View Monitor (6 Speaker)) Electrical Wiring Diagram (1 Of 2)
G08798807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

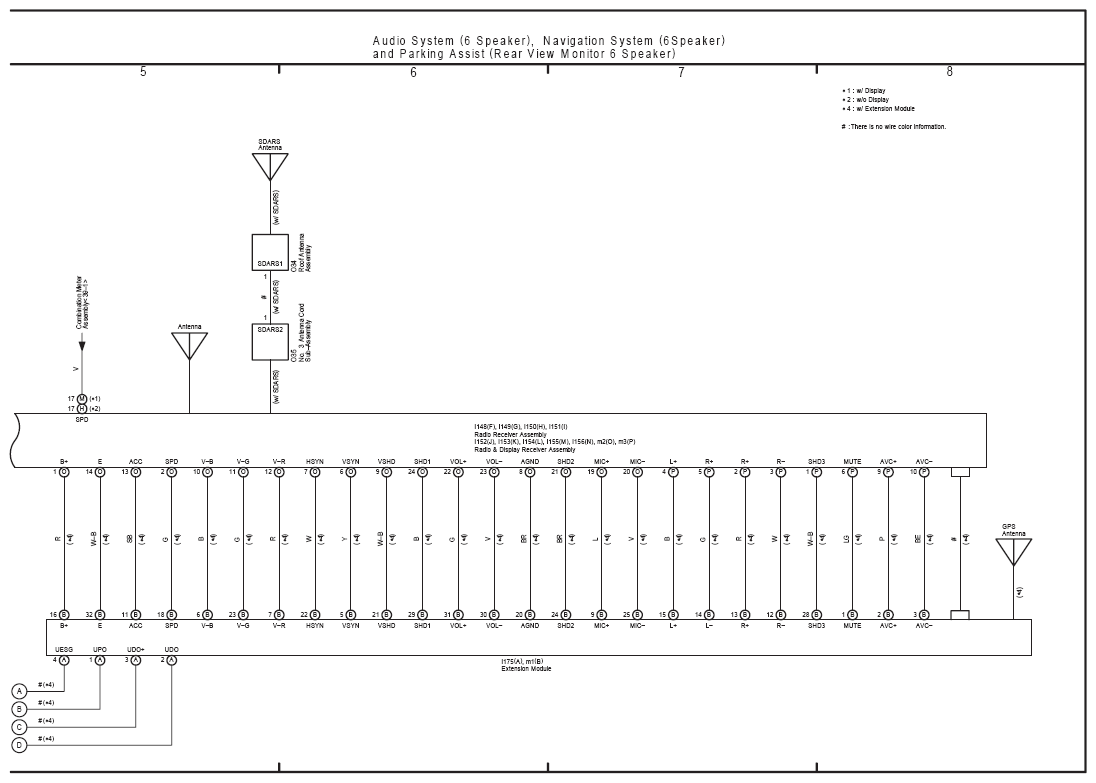

Fig 2: Audio, Navigation And Parking Assist (Rear View Monitor (6 Speaker)) Electrical Wiring Diagram (2 Of 2)
G08798808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
