Audio, Navigation And Parking Assist (Back Guide Monitor Or Rear View Monitor (10 Speaker))

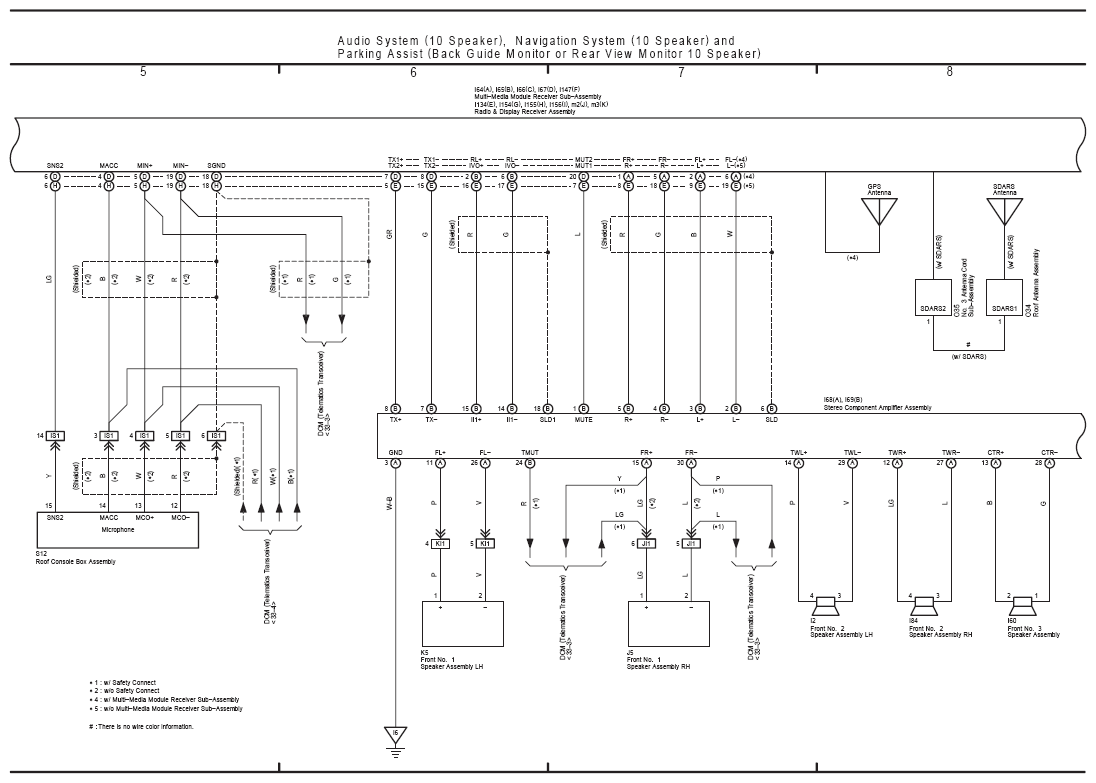

Fig 1: Audio, Navigation And Parking Assist (Back Guide Monitor Or Rear View Monitor (10 Speaker)) Electrical Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

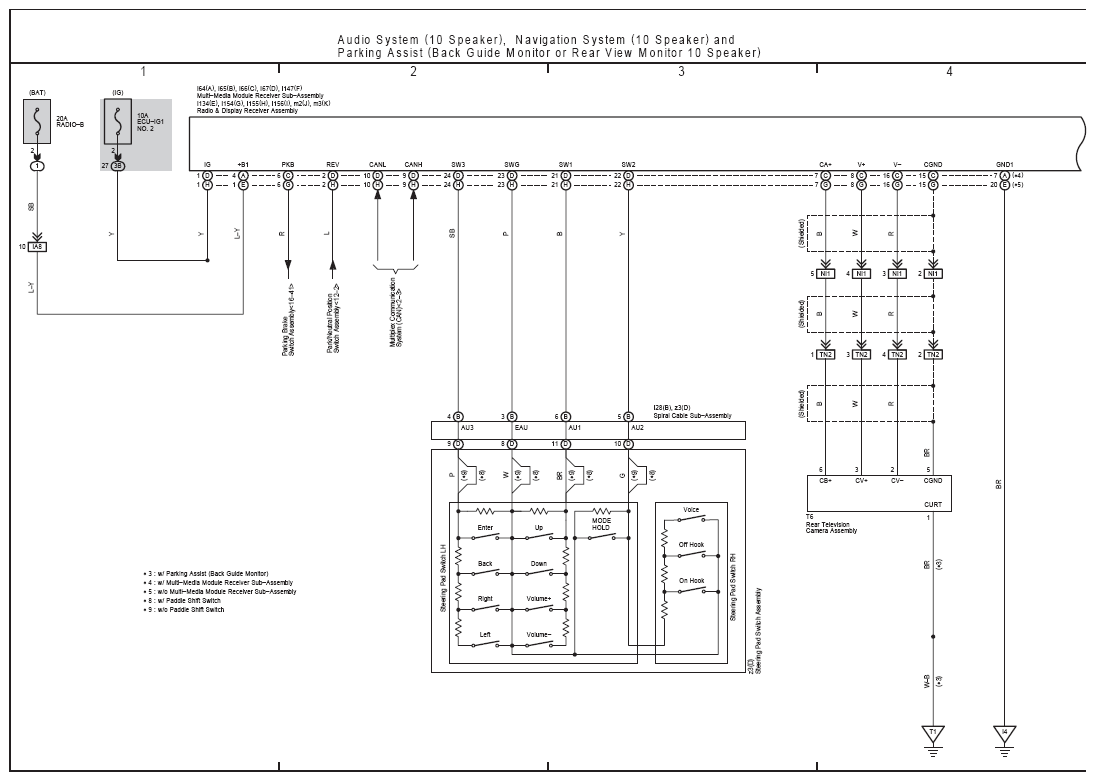

Fig 2: Audio, Navigation And Parking Assist (Back Guide Monitor Or Rear View Monitor (10 Speaker)) Electrical Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

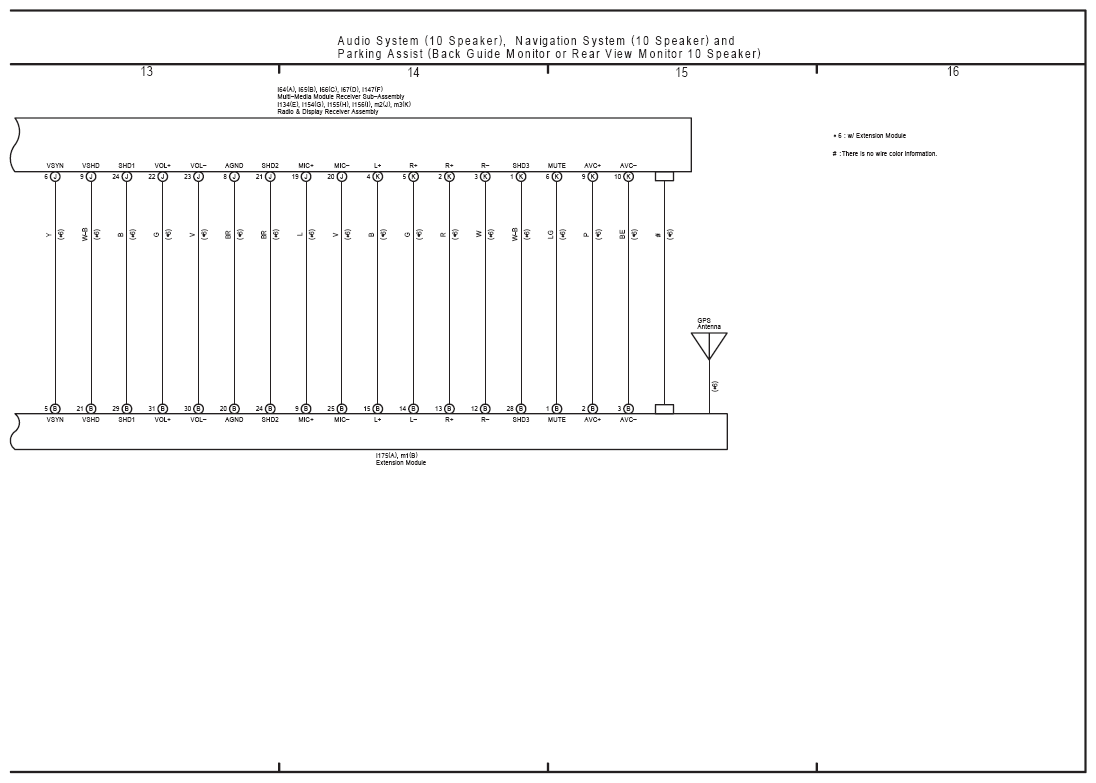

Fig 3: Audio, Navigation And Parking Assist (Back Guide Monitor Or Rear View Monitor (10 Speaker)) Electrical Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

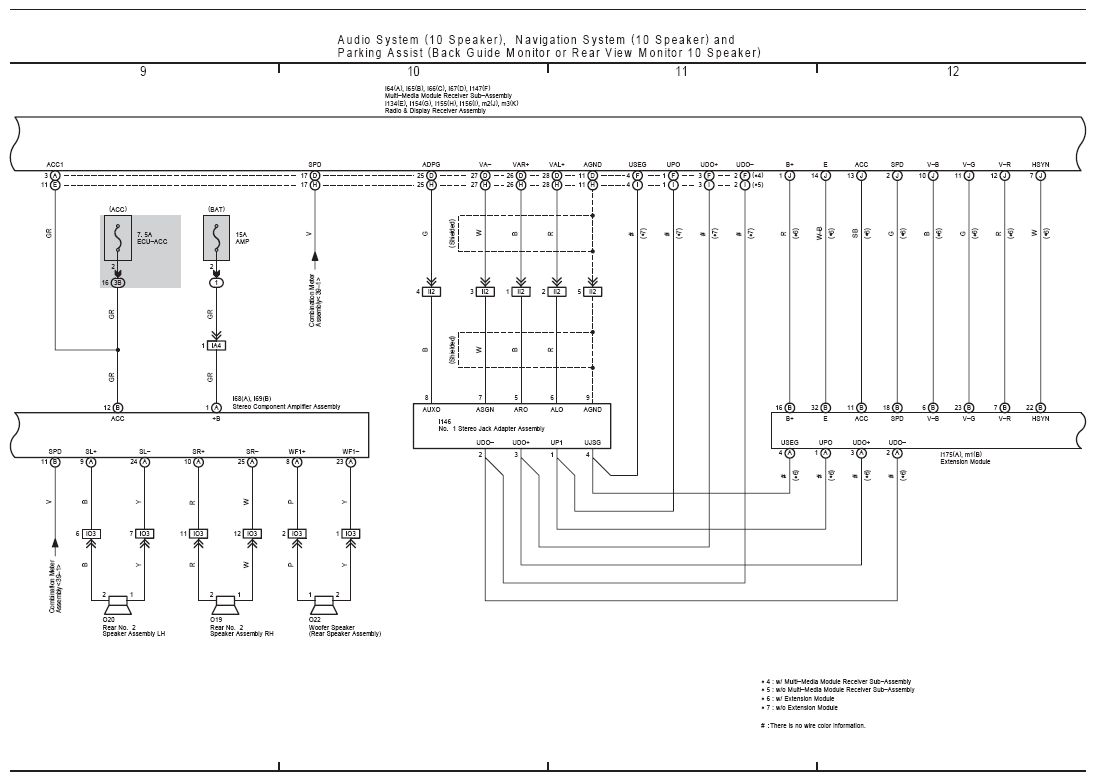

Fig 4: Audio, Navigation And Parking Assist (Back Guide Monitor Or Rear View Monitor (10 Speaker)) Electrical Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
