Air Conditioning

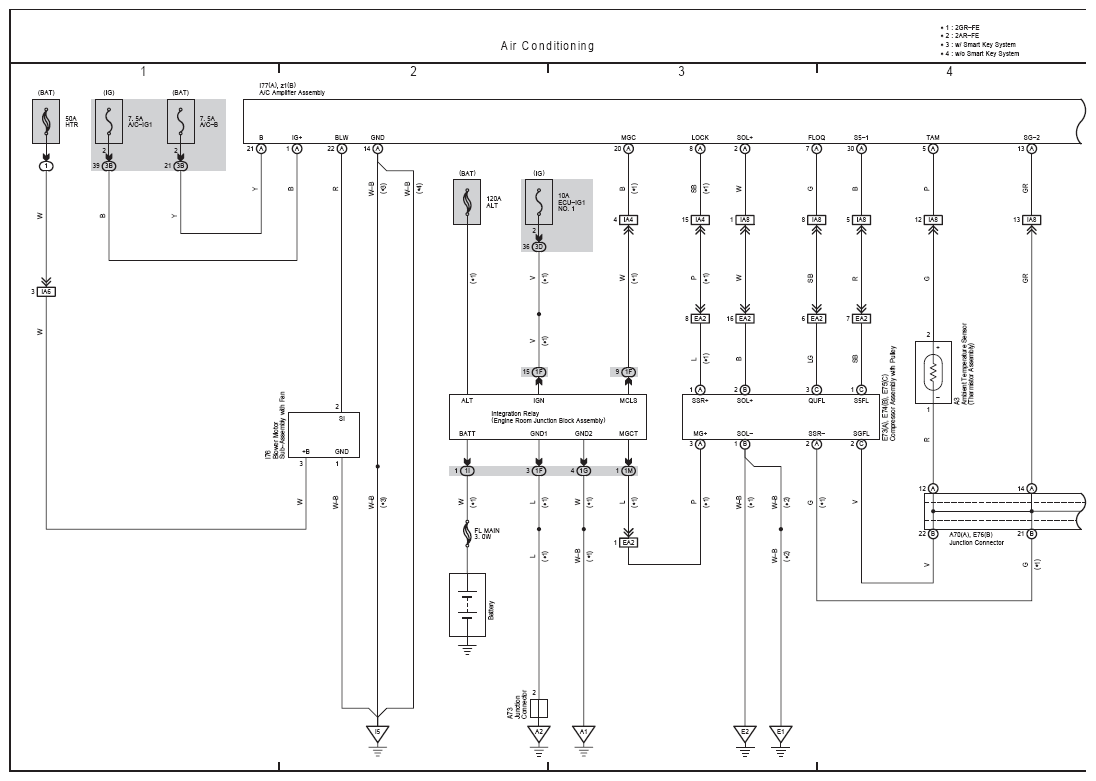

Fig 1: Air Conditioning System Electrical Wiring Diagram (1 Of 3)
G08798812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

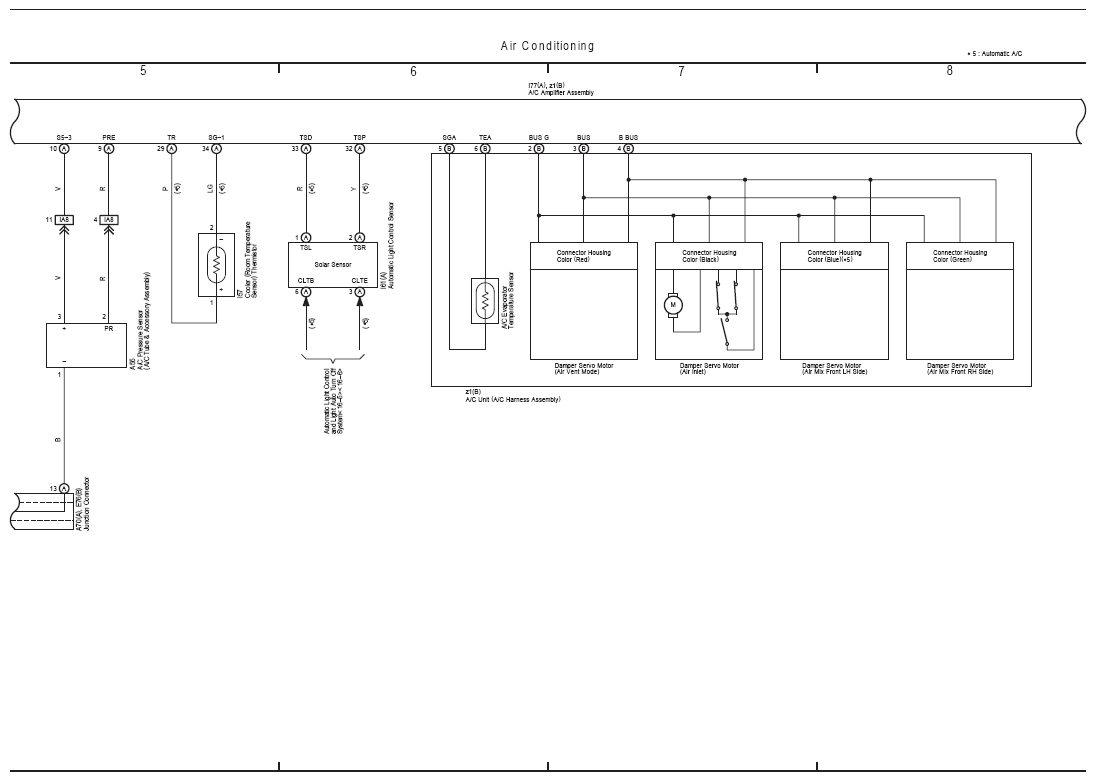

Fig 2: Air Conditioning System Electrical Wiring Diagram (2 Of 3)
G08798813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

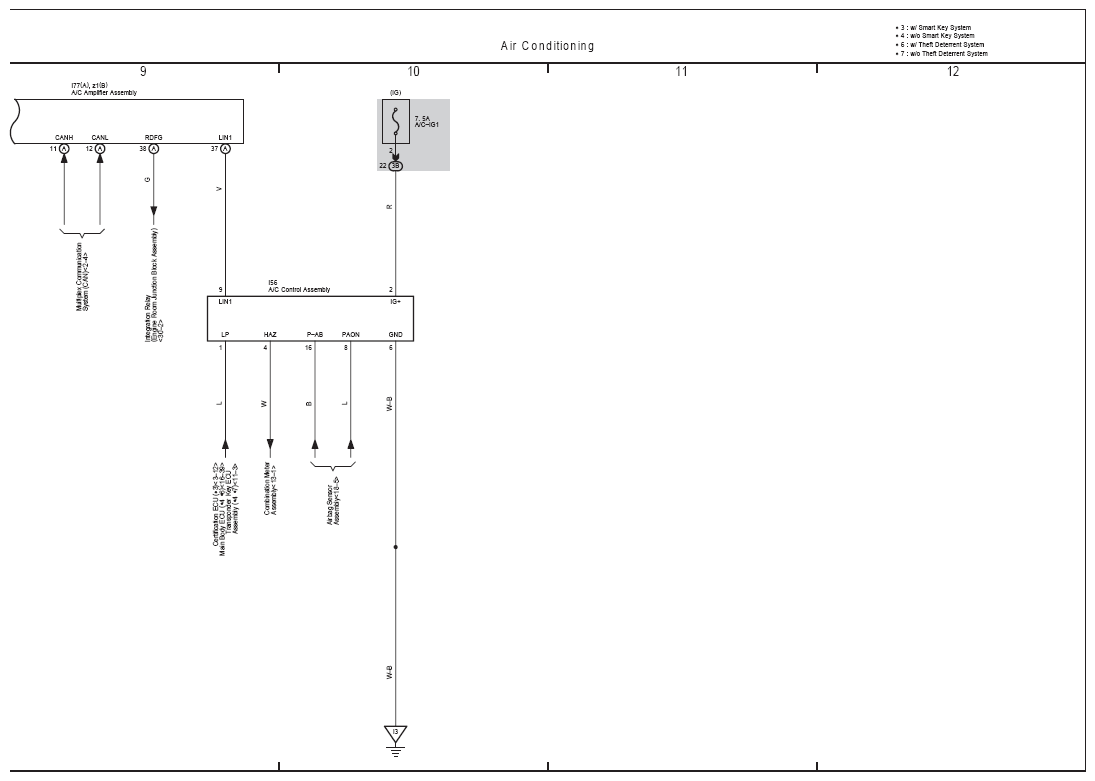

Fig 3: Air Conditioning System Electrical Wiring Diagram (3 Of 3)
G08798814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
