Luggage Compartment Door: Adjustment: Adjustment

Fig 1: Identifying Centering Bolt And Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Centering bolts are used to mount the door hinge to the door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.
• Specified torque for standard bolts is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER  . See step  1.
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT  . See step  1.
3. REMOVE BAGGAGE HOLDER NET (w/ Partition Net)  . See step  3.
4. REMOVE REAR FLOOR FINISH PLATE  . See step  4.
5. ADJUST LUGGAGE COMPARTMENT DOOR
   1. Loosen the door side hinge bolts to adjust the door horizontally and vertically.

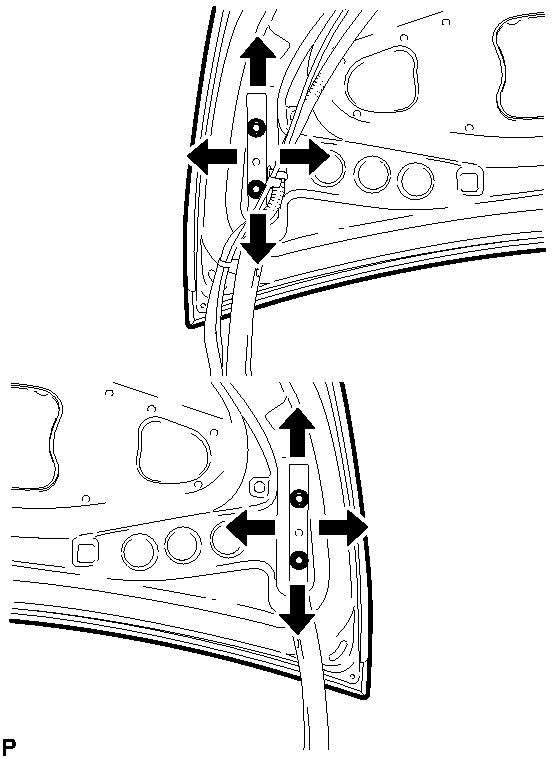

      Fig 2: Adjusting Luggage Compartment Door

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)

   2. Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.

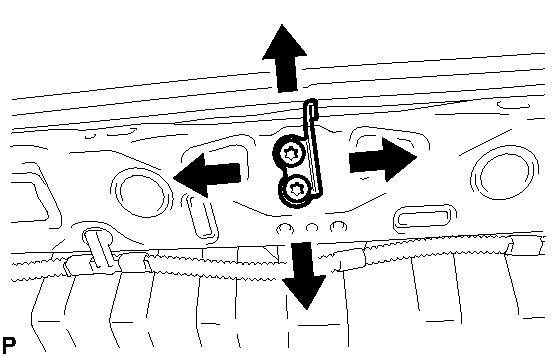

      Fig 3: Adjusting Luggage Compartment Door Striker

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a brass bar and a hammer, hit the striker to adjust its position.
   4. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

6. INSTALL REAR FLOOR FINISH PLATE  . See step  9.
7. INSTALL BAGGAGE HOLDER NET (w/ Partition Net)  . See step  10.
8. INSTALL LUGGAGE COMPARTMENT FLOOR MAT  . See step  12.
9. INSTALL LUGGAGE COMPARTMENT DOOR COVER  . See step  12.
10. INSPECT LUGGAGE COMPARTMENT DOOR
    1. Check that the clearance measurements of areas a through d are within each standard range.

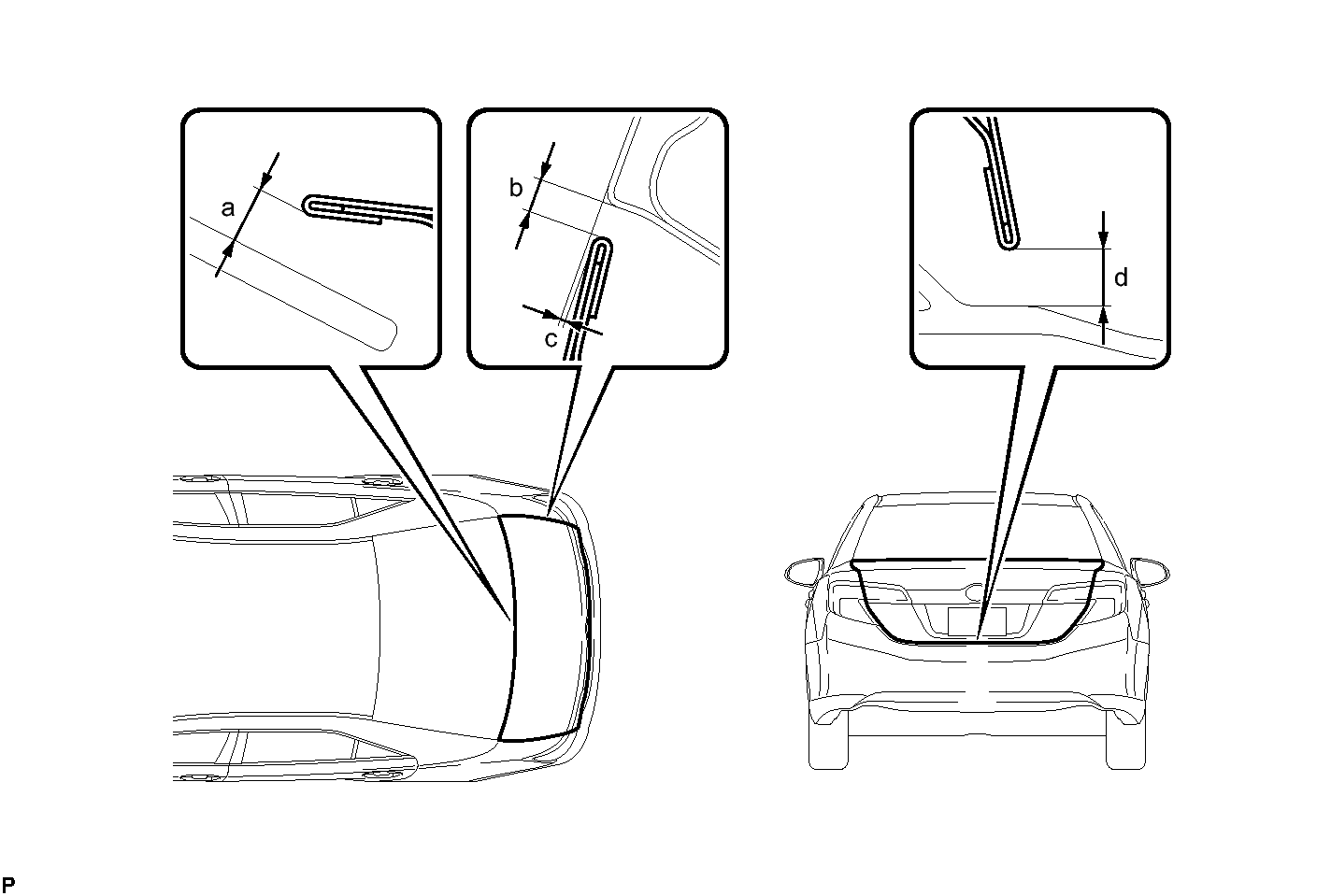

       Fig 4: Checking Luggage Compartment Door Clearance Measurements

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       STANDARD CLEARANCE



       Area	Measurement	Area	Measurement
       a	6.4 mm (0.252 in.)	b	2.0 to 5.0 mm (0.0787 to 0.197 in.)
       c	-1.0 to 2.0 mm (-0.0394 to 0.0787 in.)	d	3.85 to 7.85 mm (0.152 to 0.309 in.)
