Hood Support: Removal: Removal

HINT:

Use the same procedure for both the RH and LH sides.
The procedure described below is for the LH side.

REMOVE HOOD SUPPORT ASSEMBLY
NOTE:
- Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.
- Do not wear cotton gloves or other similar materials when handling the piston rod. Fibers may attach to the rod and result in gas leaks.
- In order to prevent the piston rod from deforming, do not apply any horizontal load to the door stay.
1. Using a screwdriver, remove the 2 stop rings as indicated by the arrows, in the order shown in the illustration.

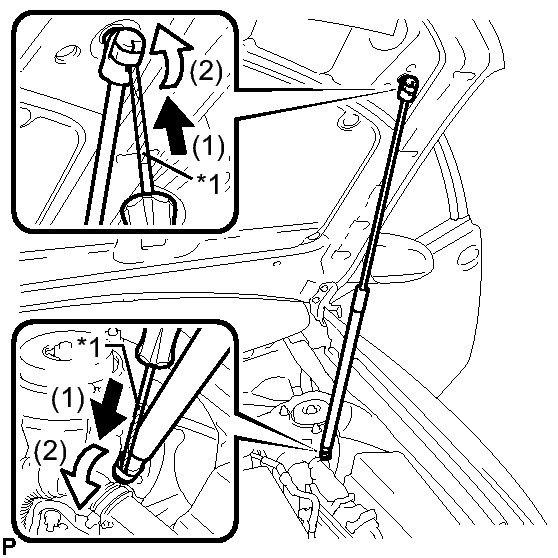

  Fig 1: Removing Hood Support Stop Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protective Tape

  HINT:

  Tape the screwdriver tip before use.
2. Release the ball joint and remove the hood support assembly.
  NOTE:
  Remove the hood support assembly while supporting the hood by hand.
