Rear Combination Light Assembly: Components: Illustration

Fig 1: Identifying Rear Combination Light Assembly Replacement Components (1 Of 2)
GTY316126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

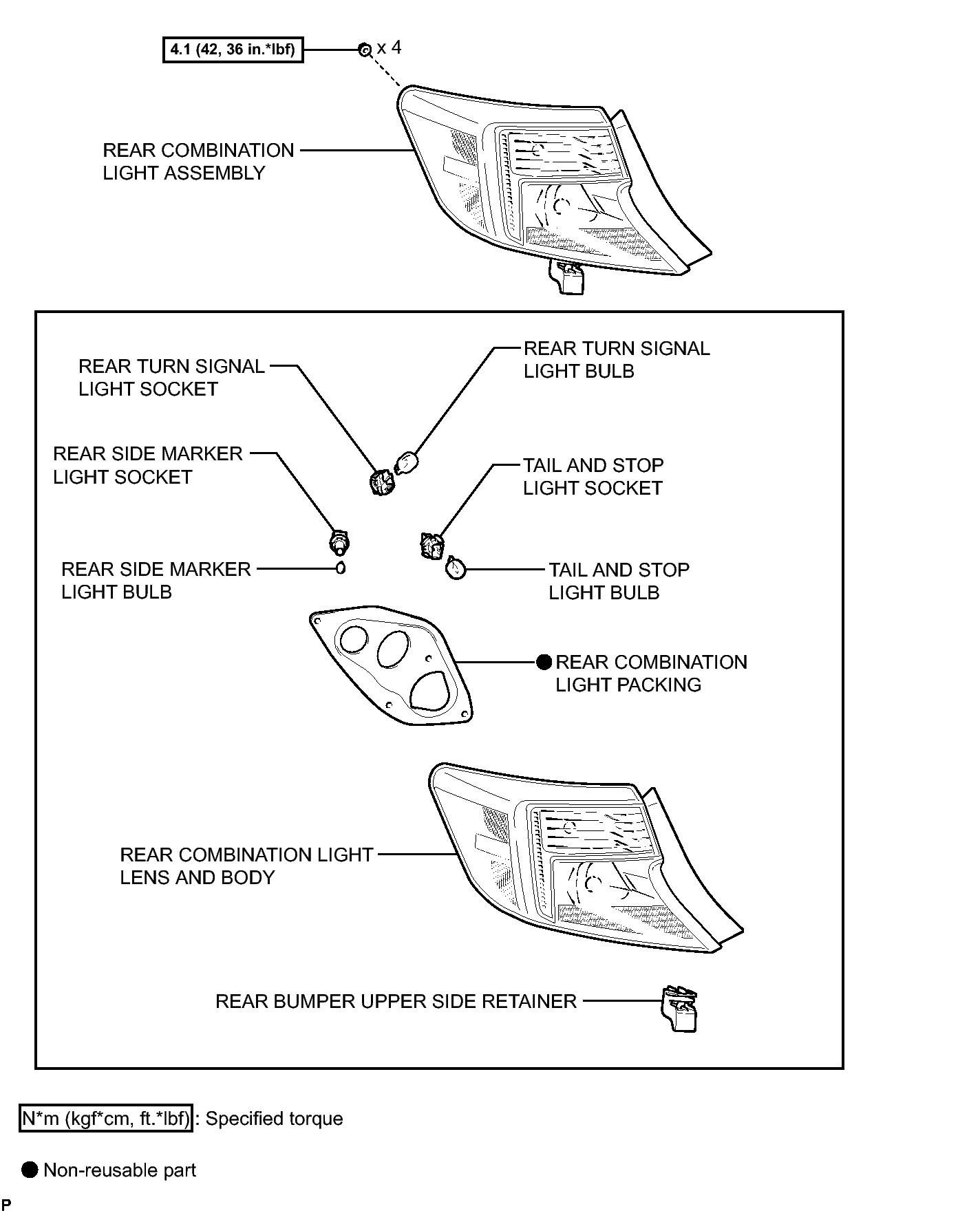

Fig 1: Identifying Rear Combination Light Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY316015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
