Headlight Leveling Ecu: Components: Illustration

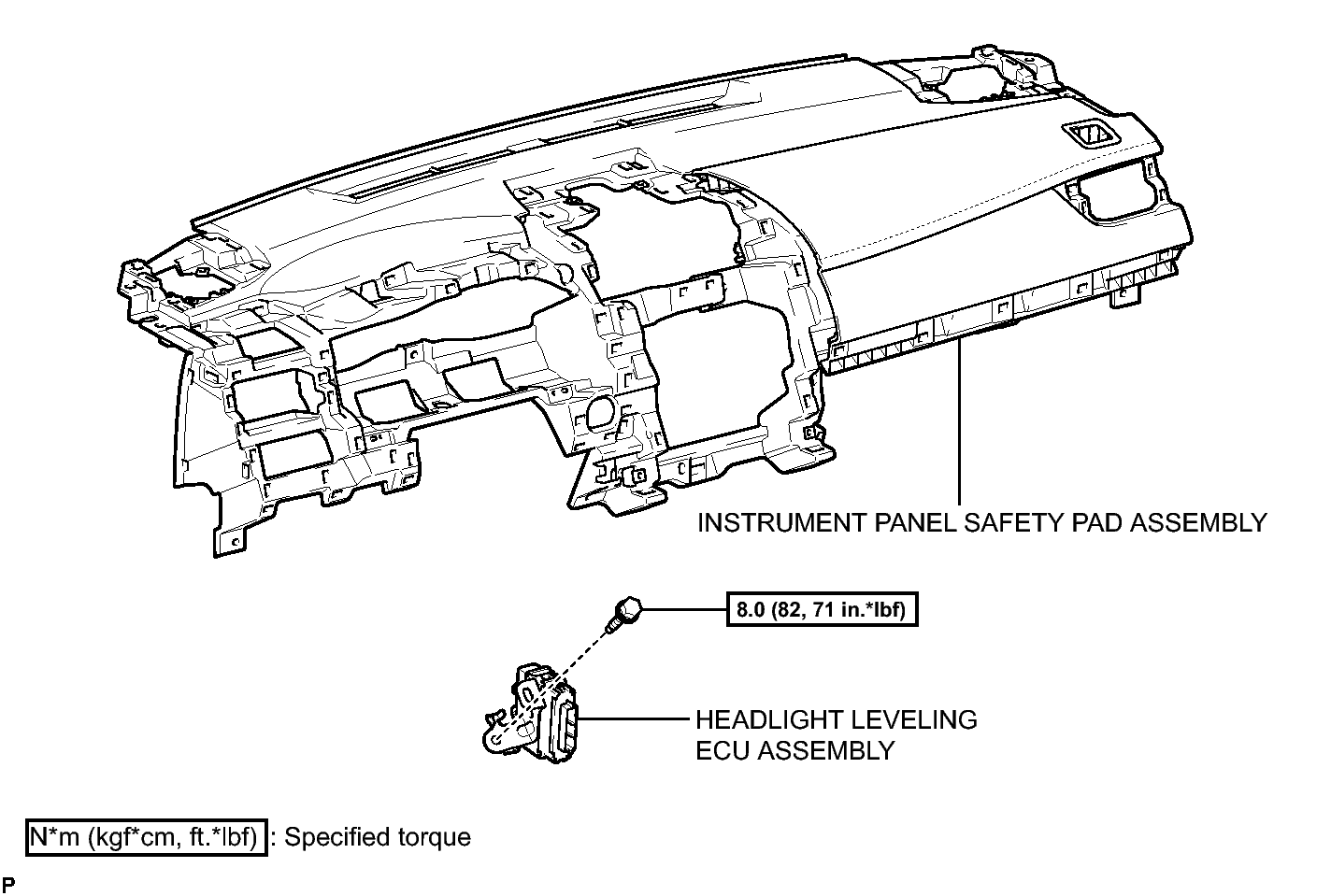

Fig 1: Identifying Headlight Leveling ECU Replacement Components With Torque Specifications

GTY316159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
