Headlight Assembly: Components: Illustration

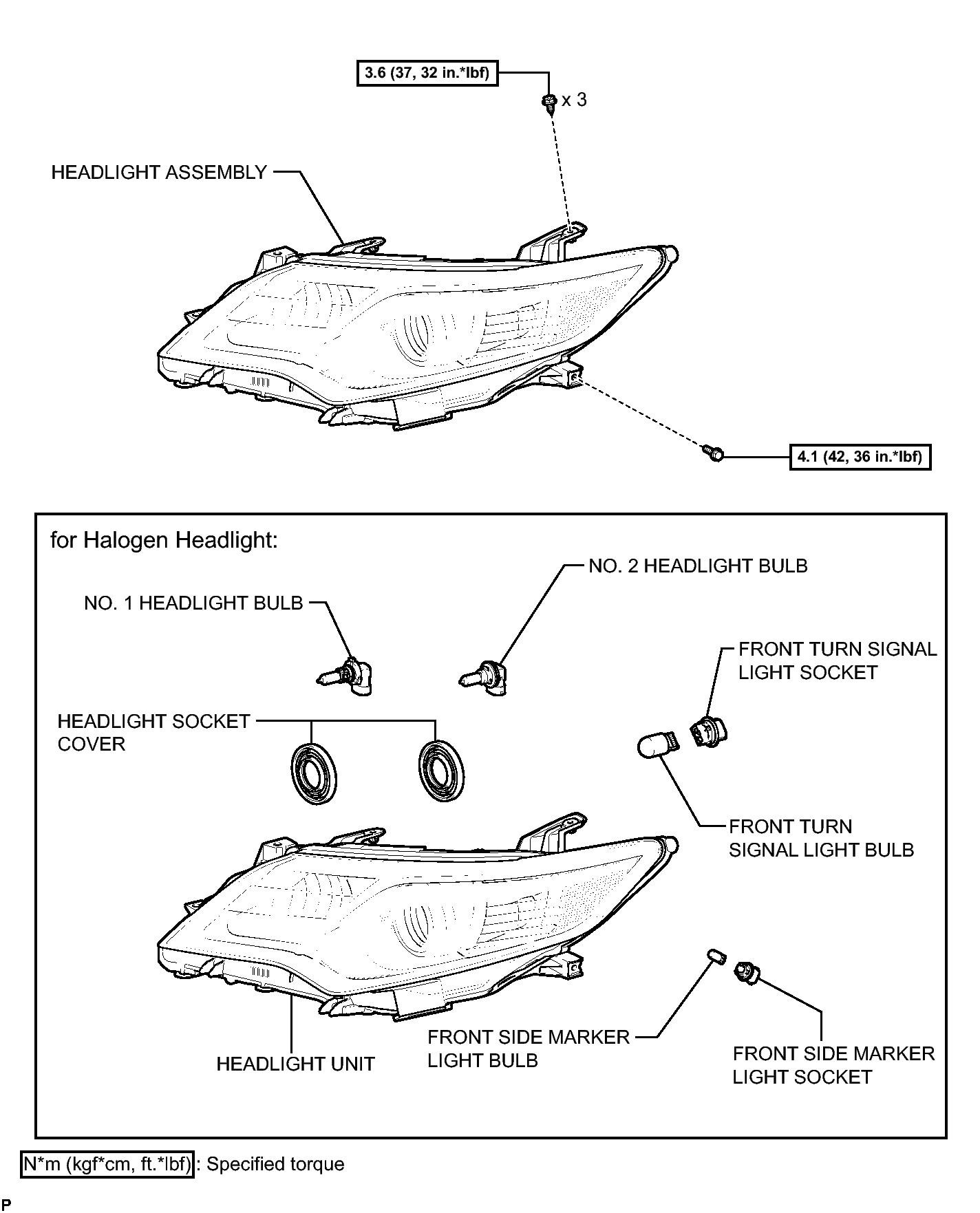

Fig 1: Identifying Headlight Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY321601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

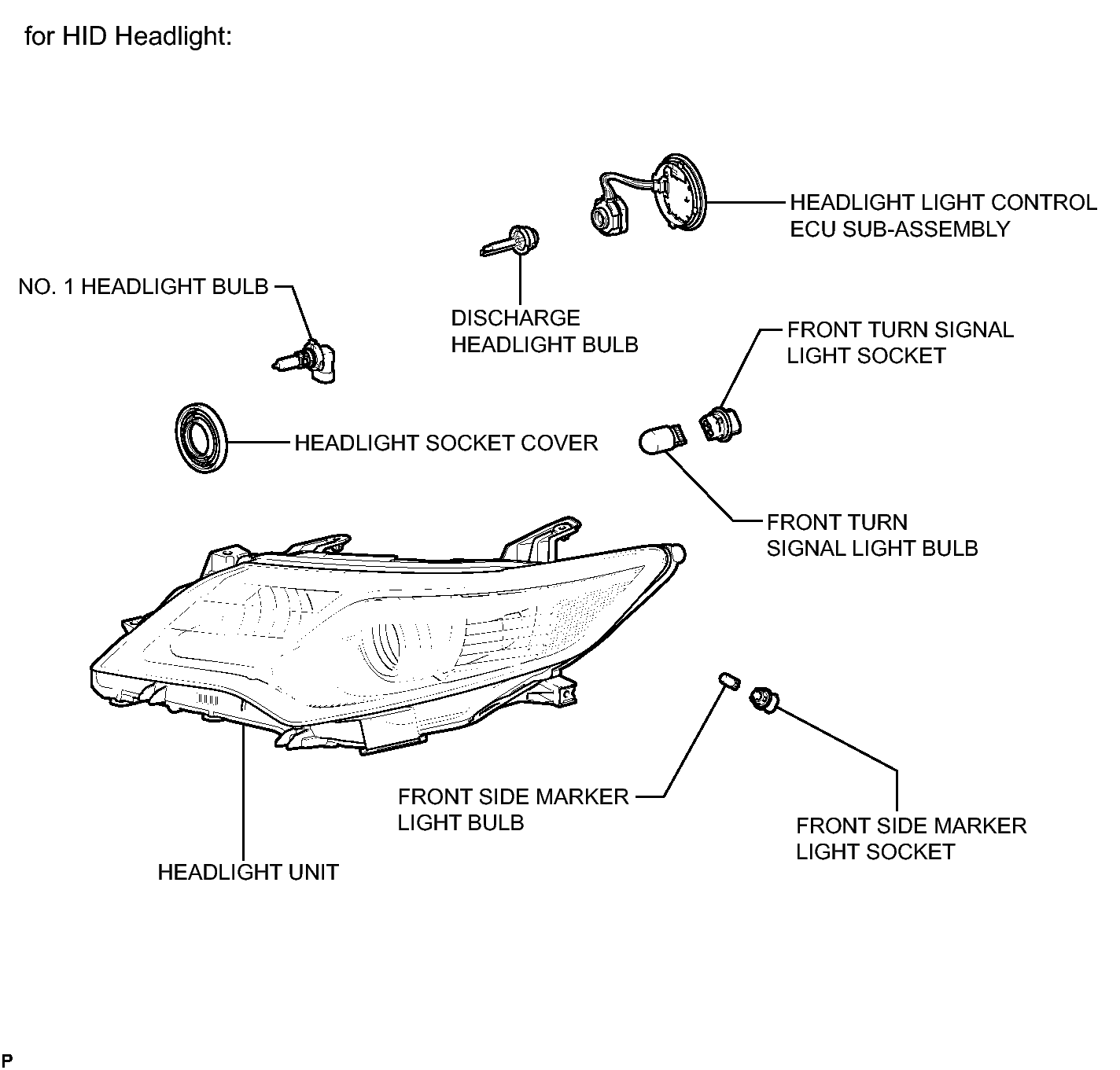

Fig 1: Identifying Headlight Assembly Replacement Components (2 Of 2)
GTY322115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
