Hazard Warning Switch: Components: Illustration

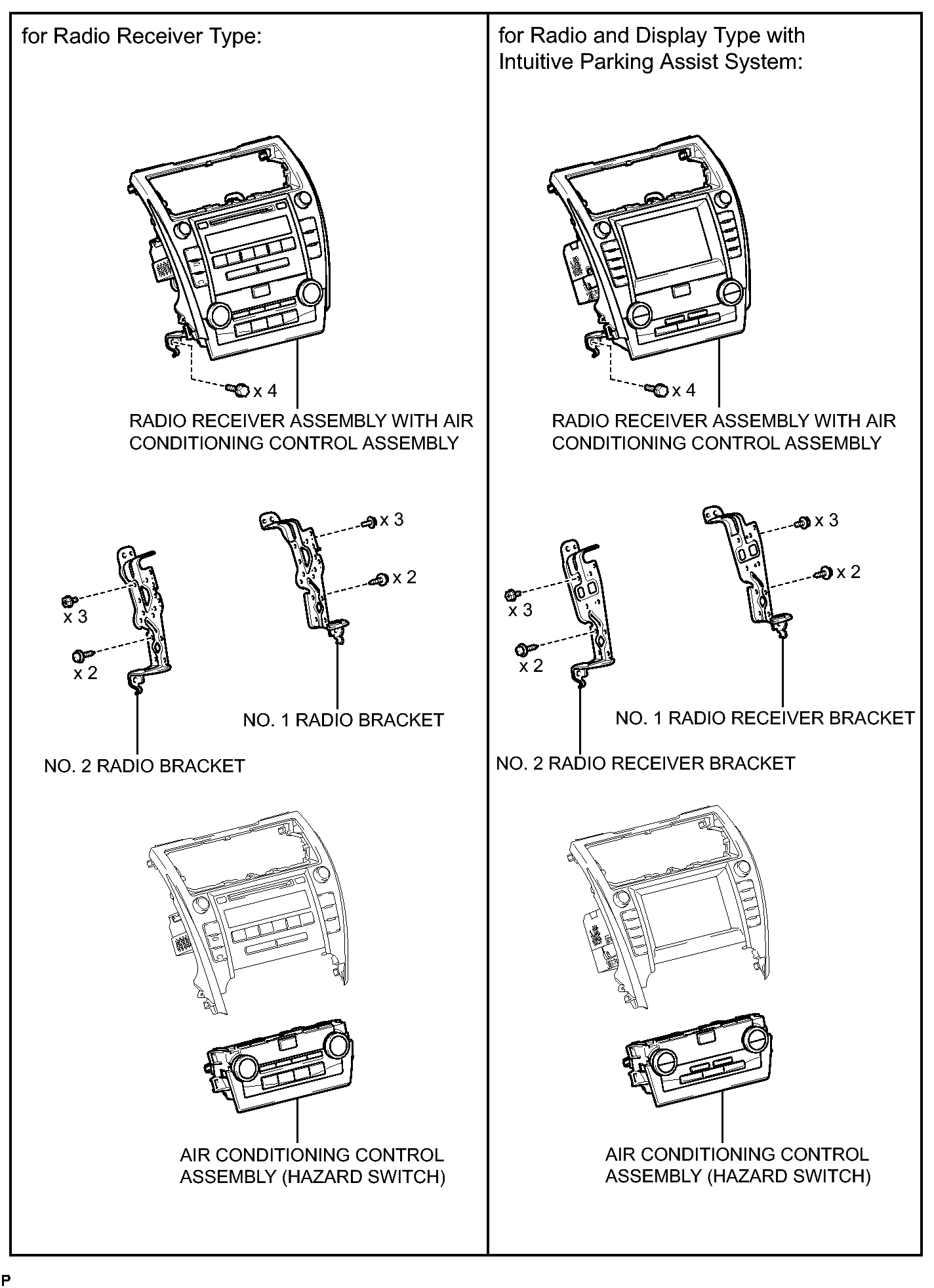

Fig 1: Identifying Hazard Warning Switch Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

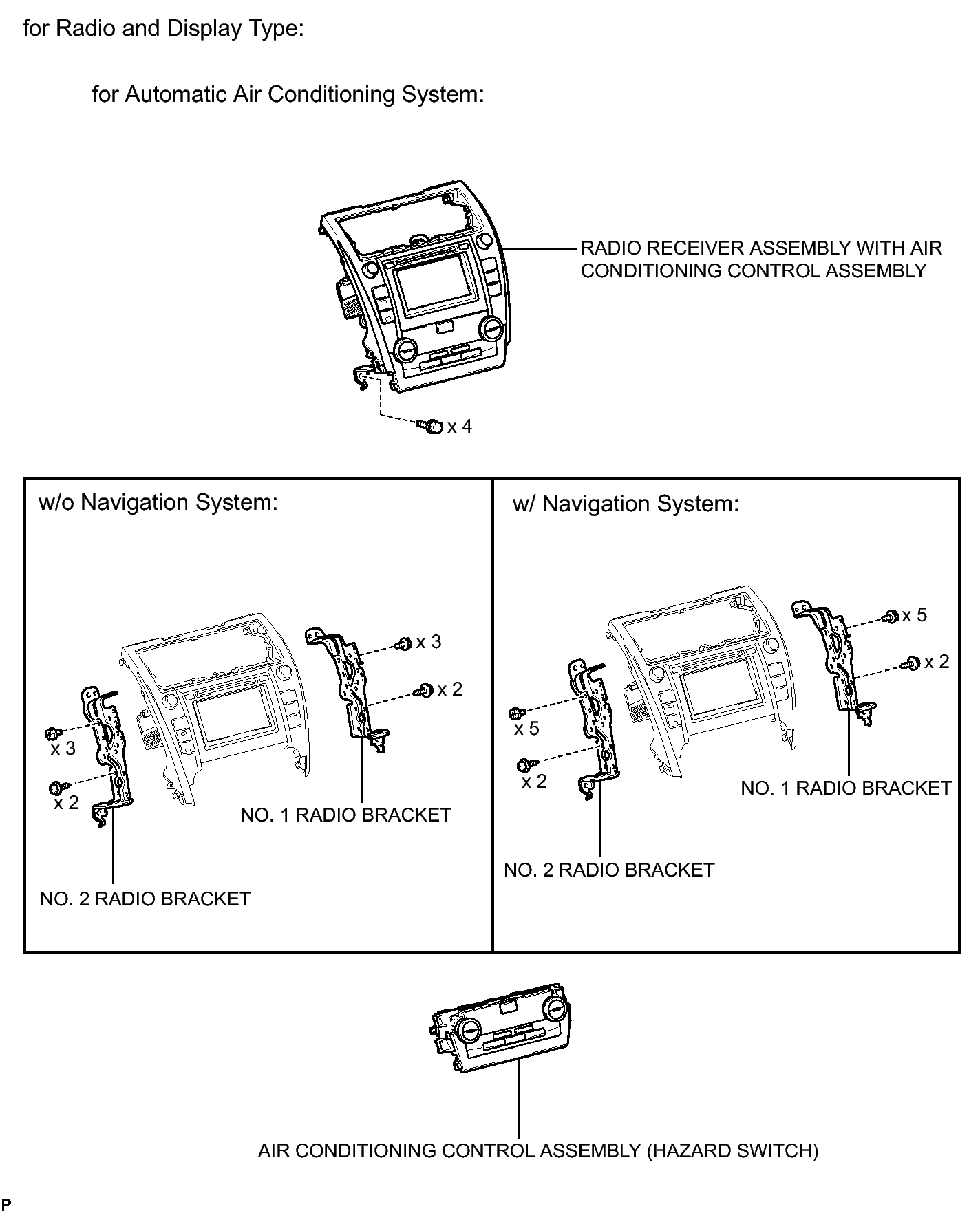

Fig 1: Identifying Hazard Warning Switch Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

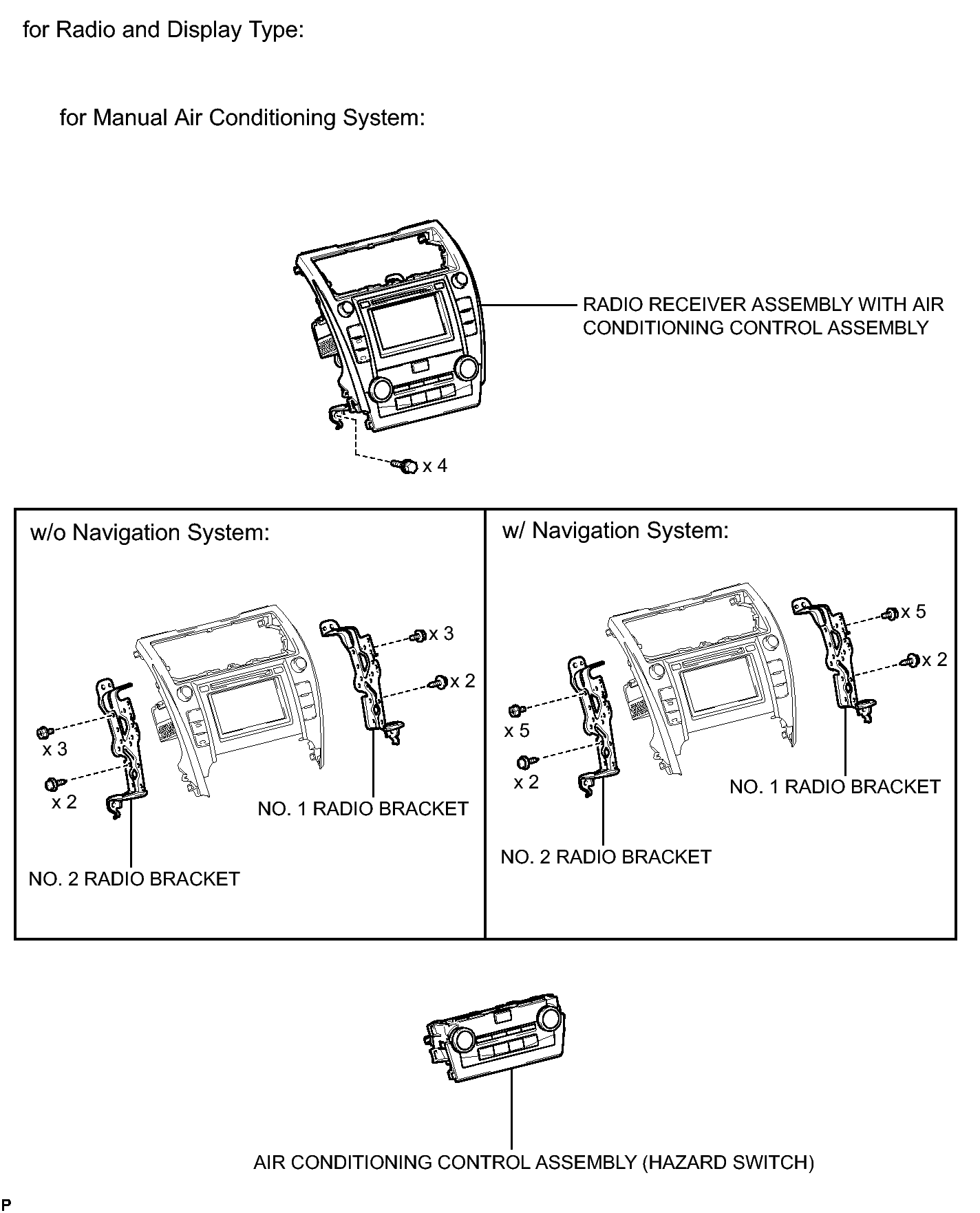

Fig 1: Identifying Hazard Warning Switch Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

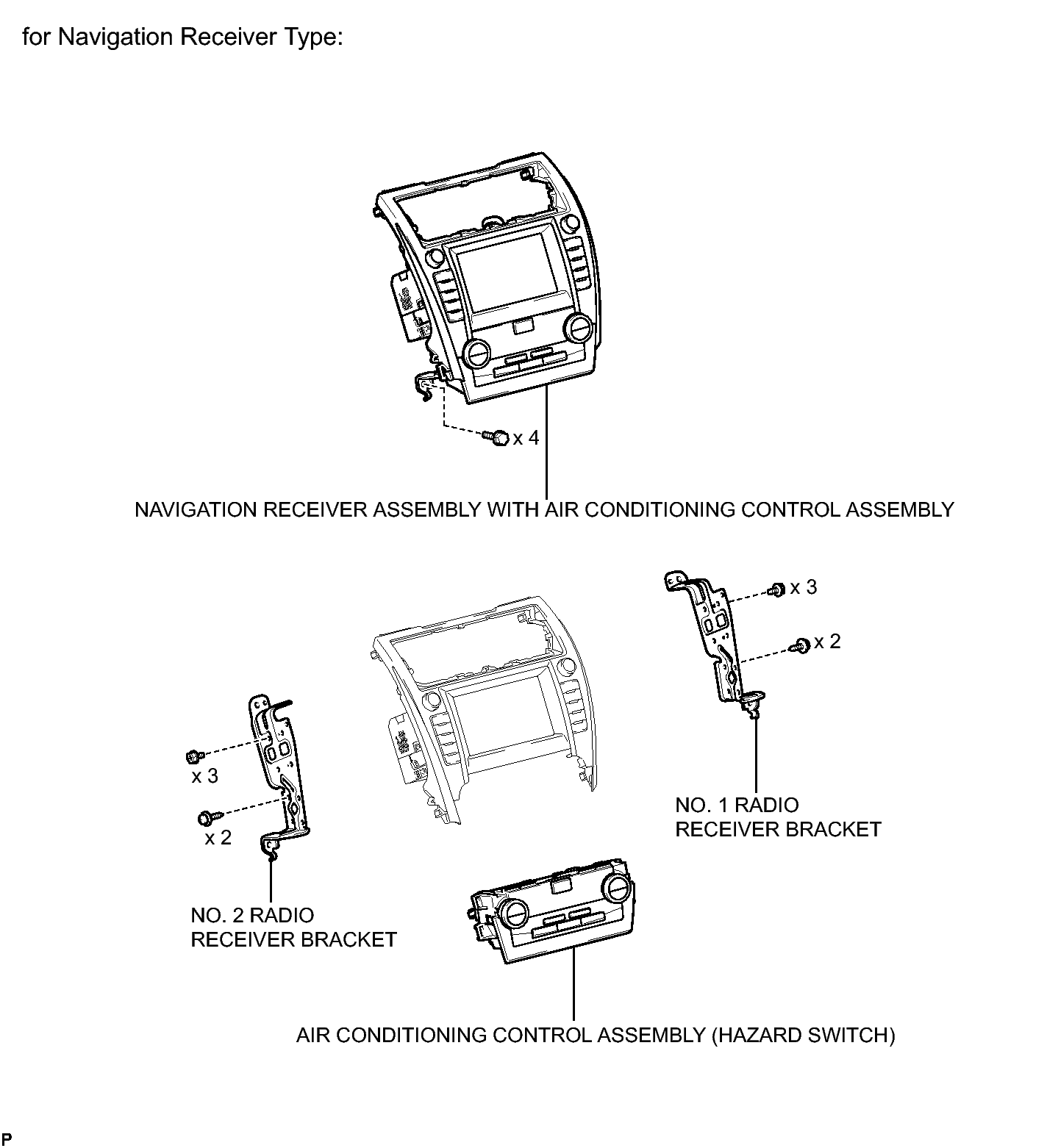

Fig 1: Identifying Hazard Warning Switch Replacement Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

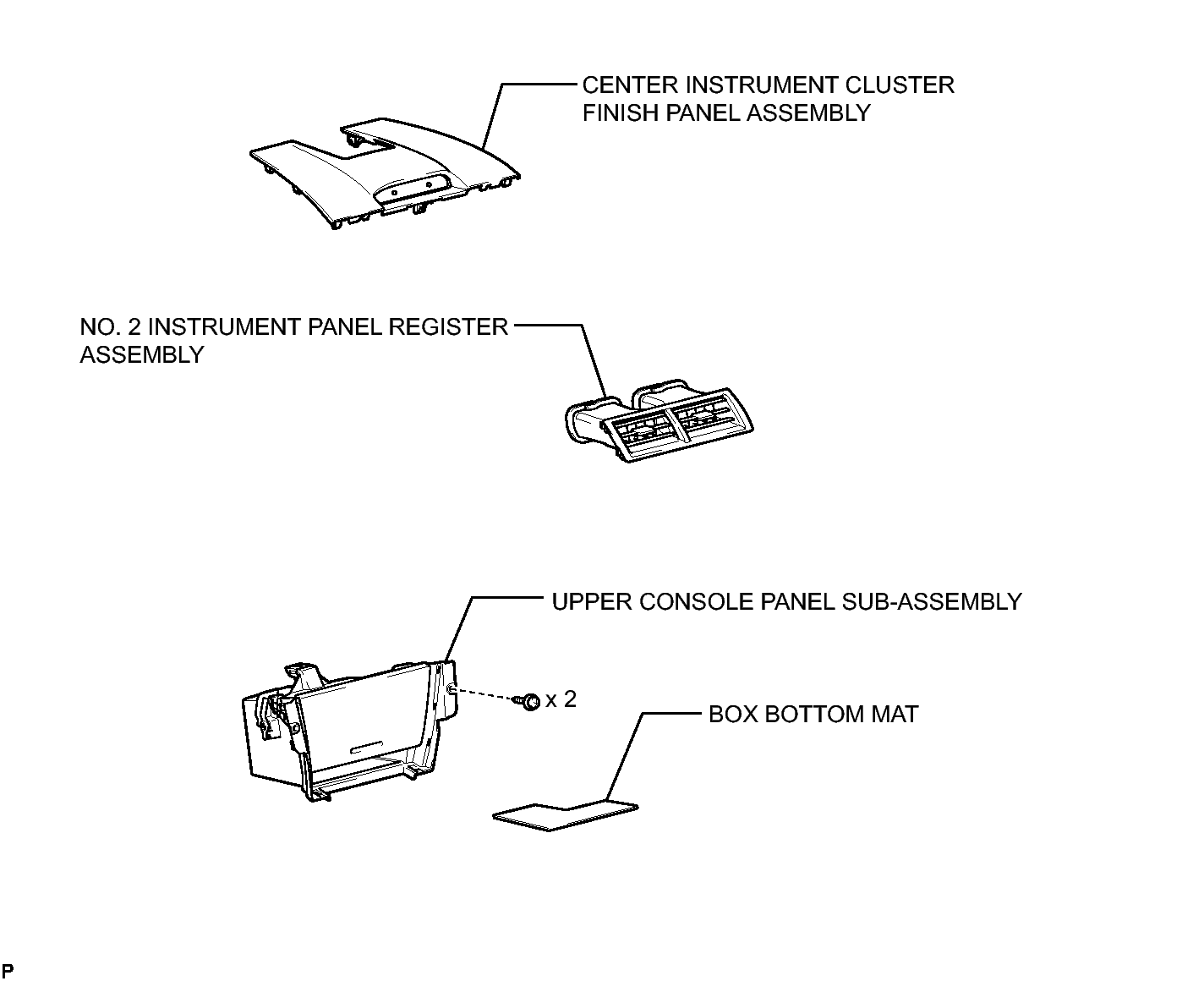

Fig 1: Identifying Hazard Warning Switch Replacement Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
