Fog Light Assembly: Components: Illustration

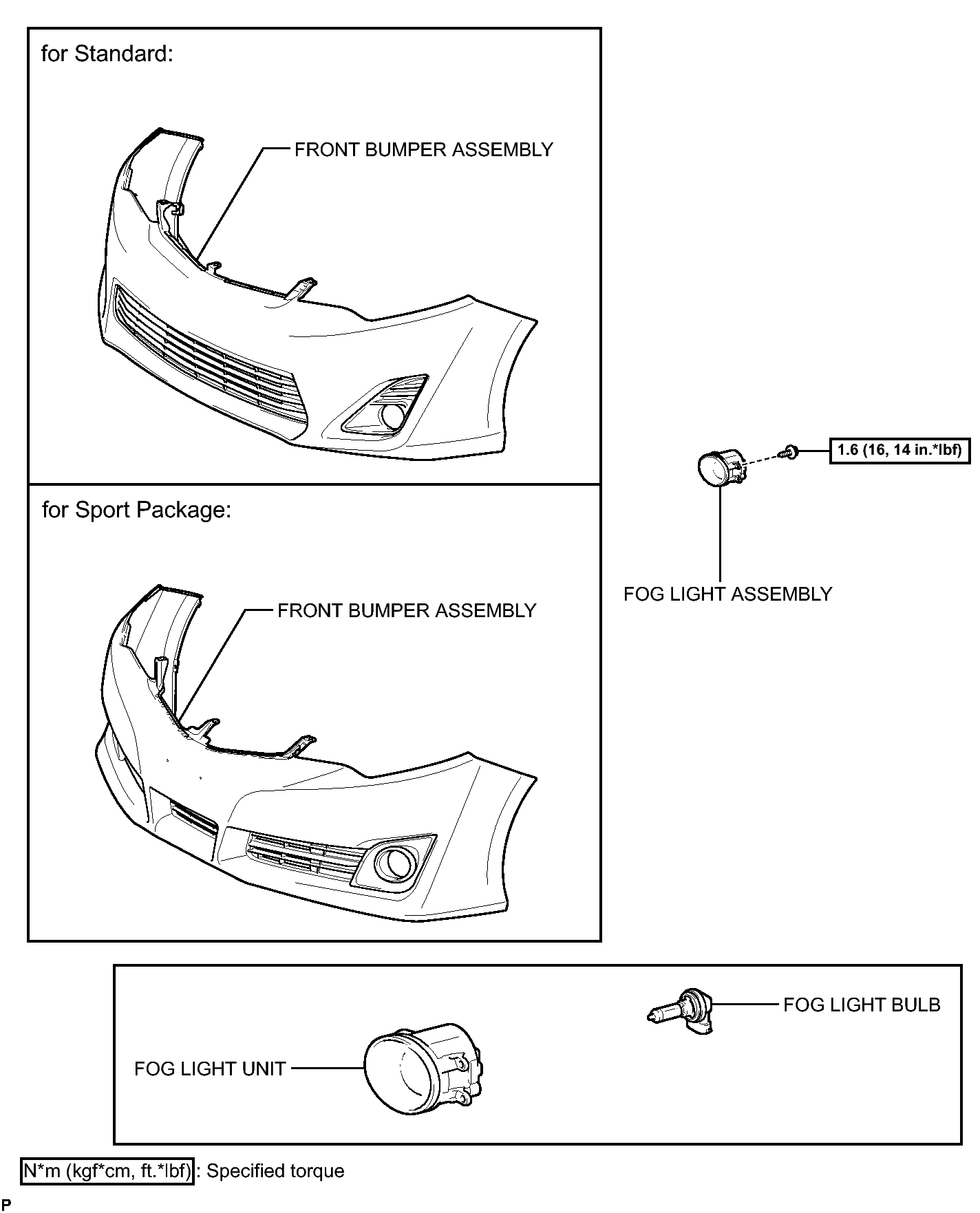

Fig 1: Identifying Fog Light Assembly Replacement Components With Torque Specifications

GTY319087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
