Low Beam Headlight Circuit: Wiring Diagram

  1. for HID Headlight:

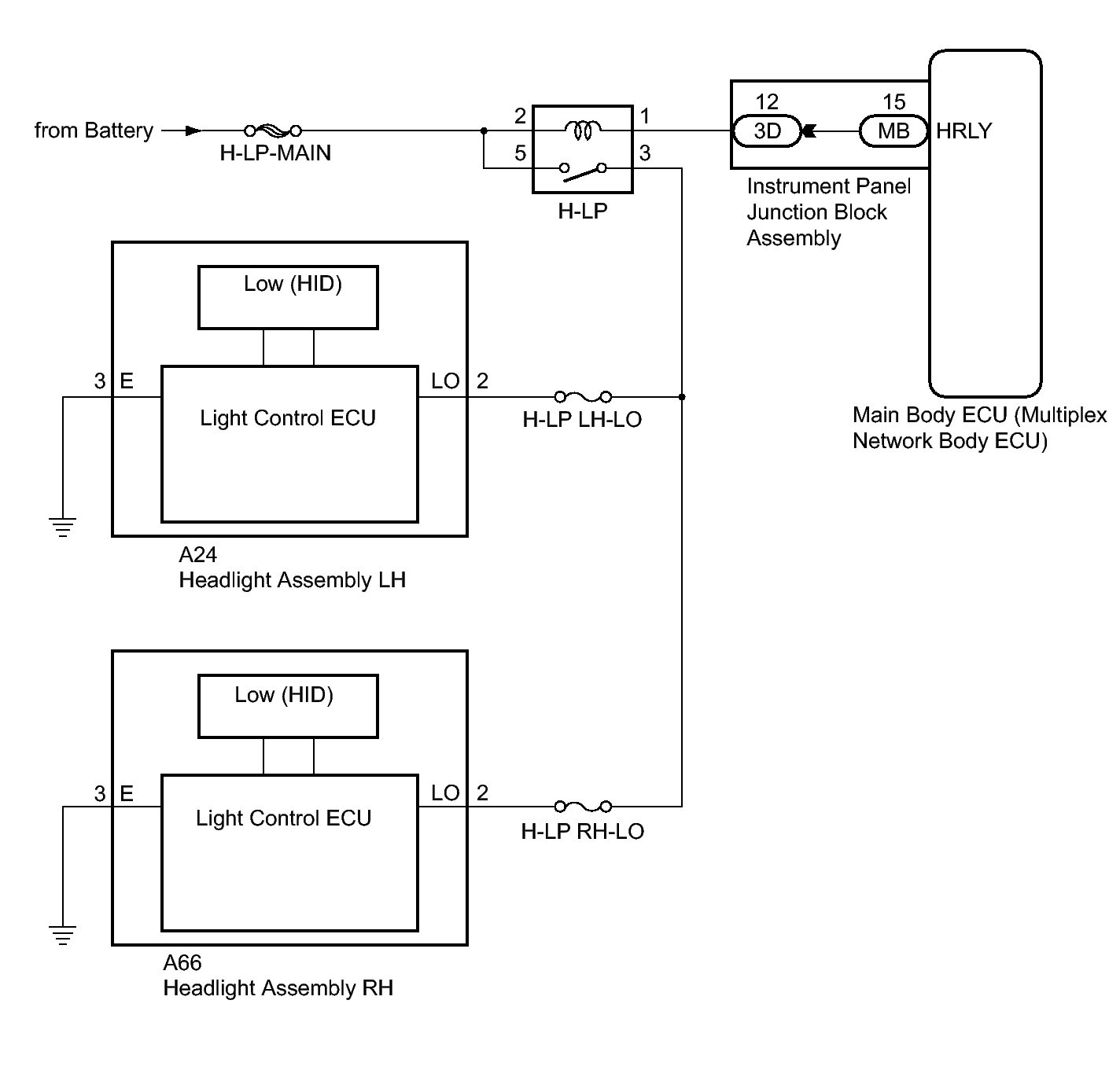

    Fig 1: Low Beam Headlight Circuit (For HID Headlight) - Wiring Diagram
    GTY315335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Halogen Headlight:

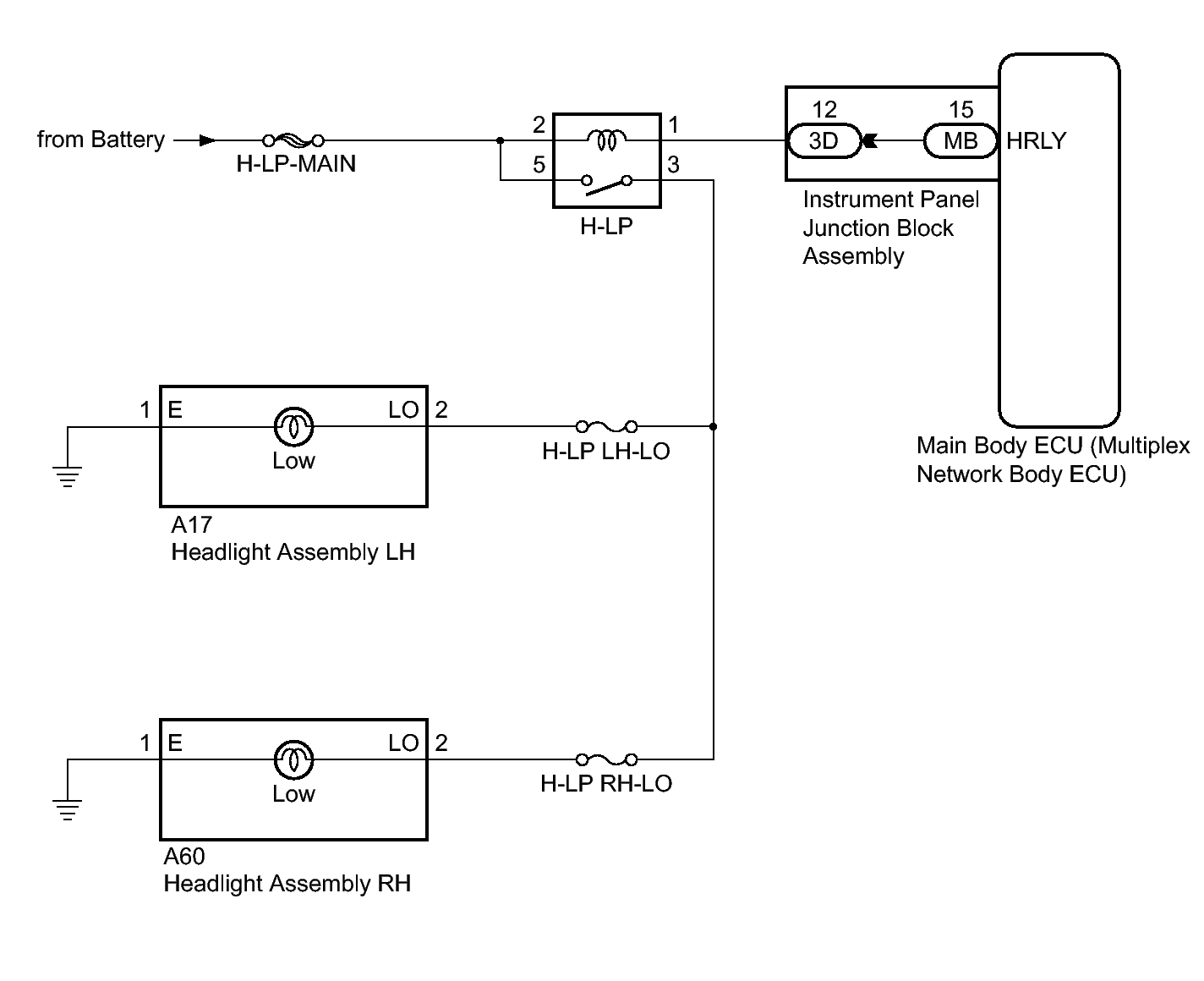

    Fig 2: Low Beam Headlight Circuit (For Halogen Headlight) - Wiring Diagram
    GTY318523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
