Headlight Dimmer Switch Circuit: Wiring Diagram

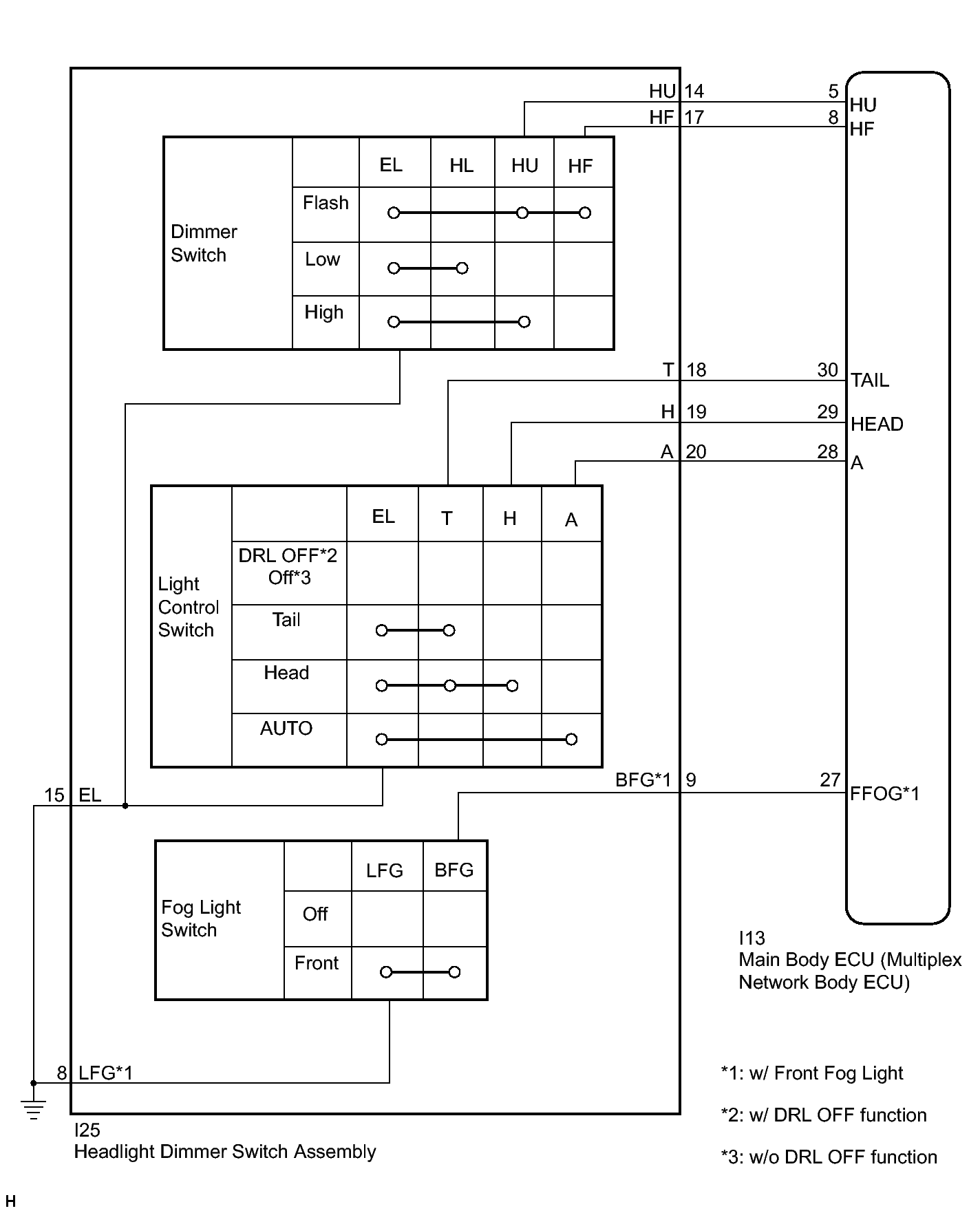

Fig 1: Headlight Dimmer Switch Circuit - Wiring Diagram

GTY323394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
