DTC B2325: LIN Communication Bus Malfunction: Wiring Diagram

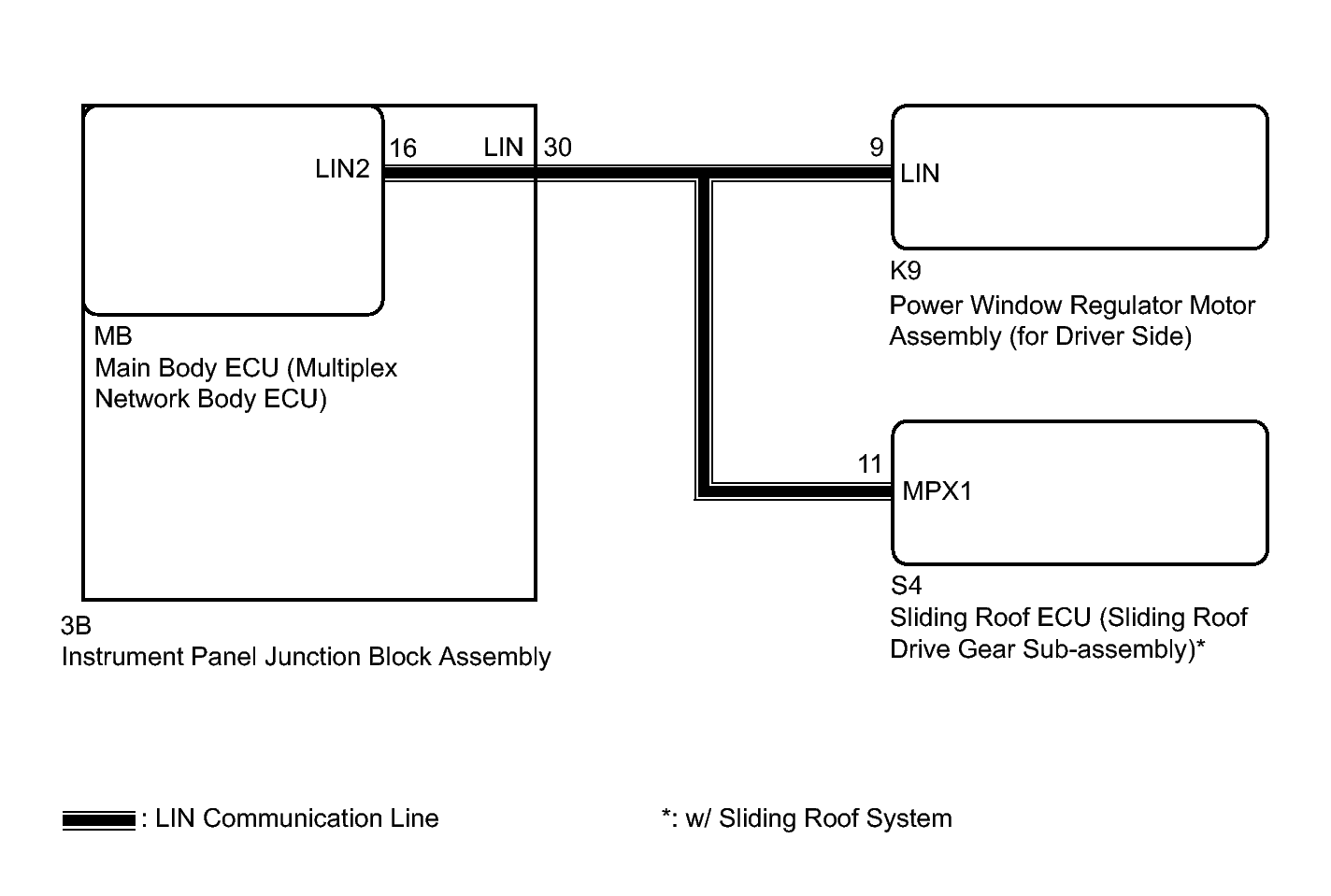

Fig 1: LIN Communication Bus Circuit - Wiring Diagram

GTY322736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
