DTC B1247: Tire Pressure Monitor Receiver Communication Stop: Wiring Diagram

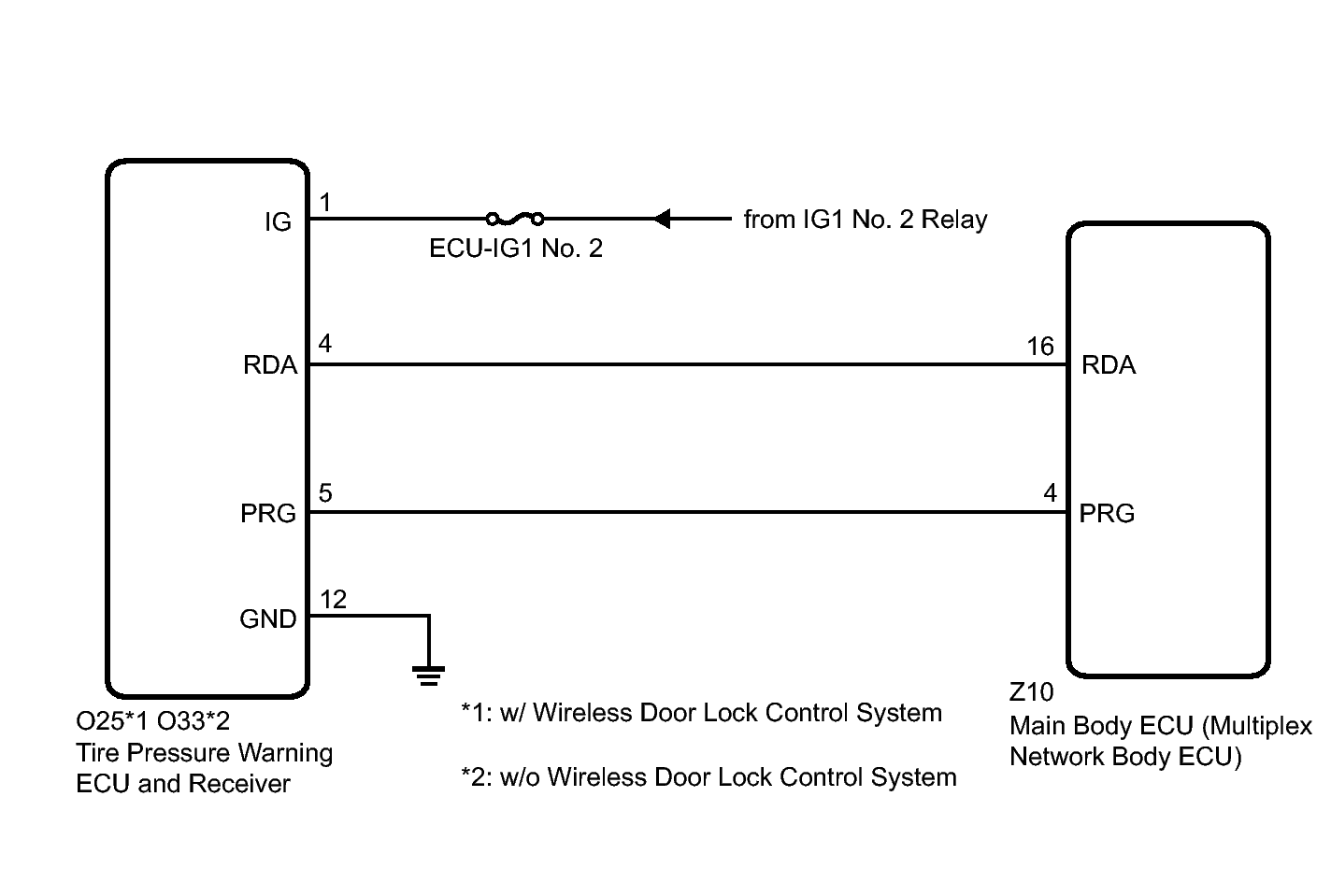

Fig 1: Tire Pressure Monitor Receiver Circuit - Wiring Diagram

GTY320763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
