Rear Strut Rod: Removal: Removal

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
   1. Remove the bolt and separate the No. 3 parking brake cable assembly from the vehicle.
      Fig 1: Identifying No. 3 Parking Brake Cable Assembly Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR STRUT ROD ASSEMBLY
   1. Support the rear axle carrier sub assembly with a jack using a wooden block.

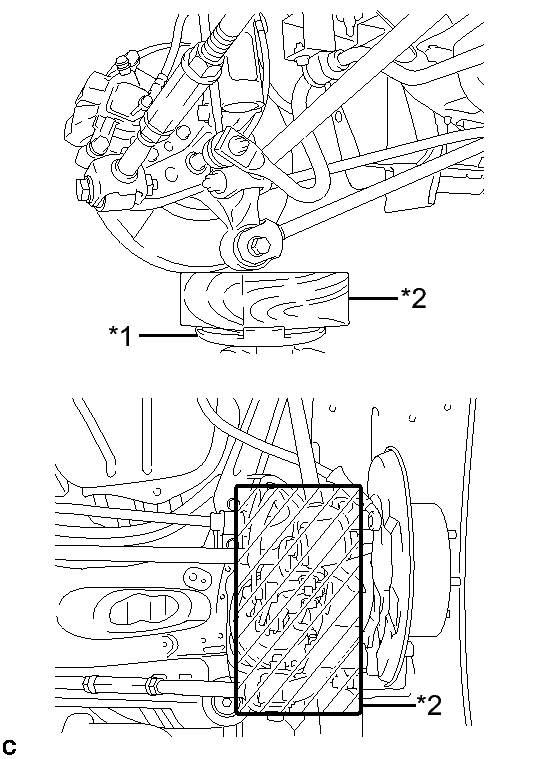

      Fig 2: Identifying Jack And Wooden Block

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Jack
      *2	Wooden Block

   2. Remove the 2 bolts and separate the rear strut rod assembly (front side).
      Fig 3: Identifying Rear Strut Rod Assembly And Bolts (Front Side)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt, nut and rear strut rod assembly from the rear axle carrier sub-assembly.
      Fig 4: Locating Rear Strut Rod Assembly Fasteners

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the bolt, keep the nut from rotating.
