Rear Seat Outer Belt Assembly: Components: Illustration

Fig 1: Identifying Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY319906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

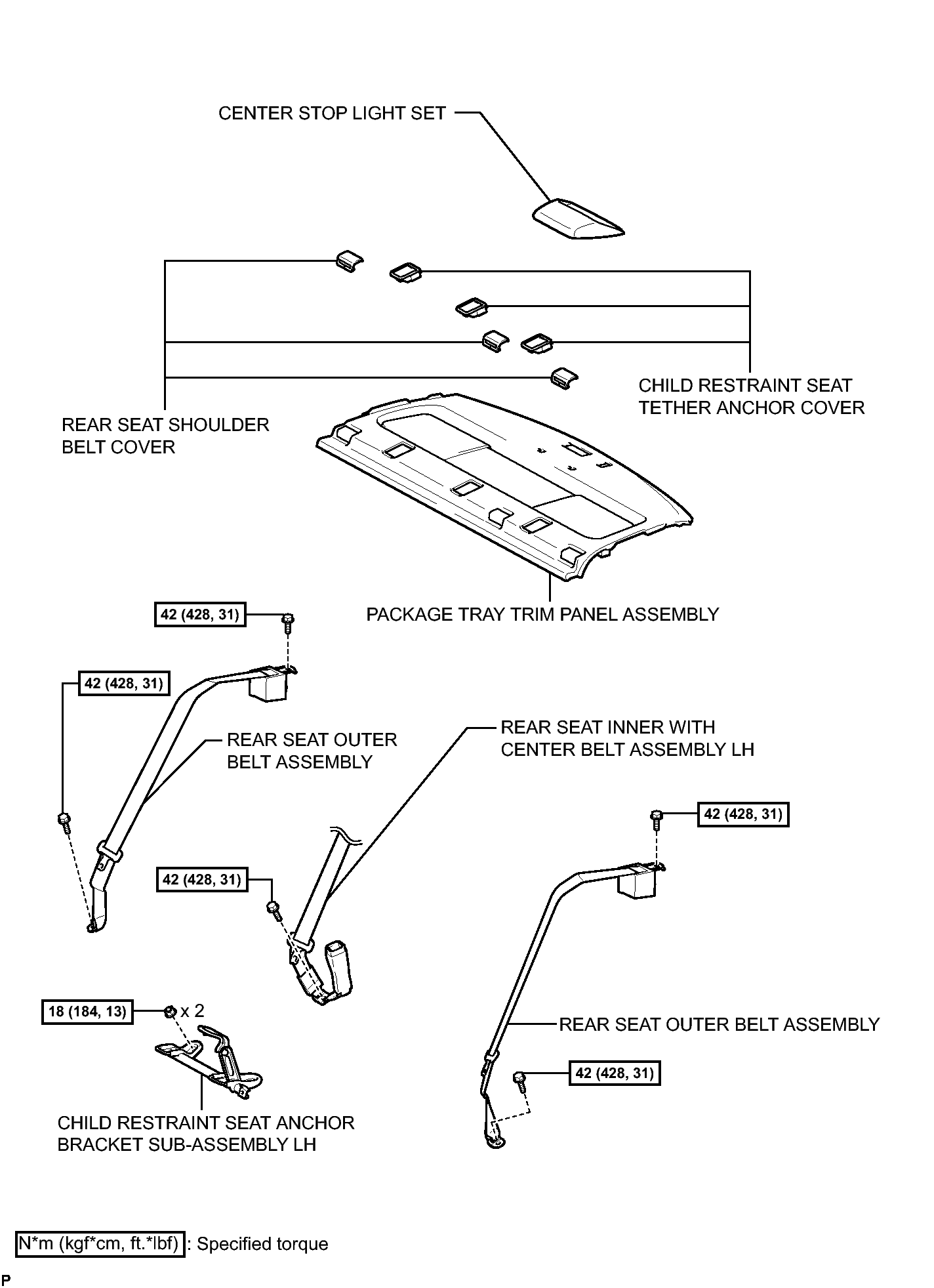

Fig 1: Identifying Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY315837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
