Home >> Toyota >> 2012 >> Camry L >> Repair and Diagnosis >> Restraints >> Seat Belts >> Seat Belt (Service Information) (Except Hybrid) >> Front Seat Outer Belt Assembly With PRETENSIONER >> Components >> Illustration

Front Seat Outer Belt Assembly With PRETENSIONER: Components: Illustration

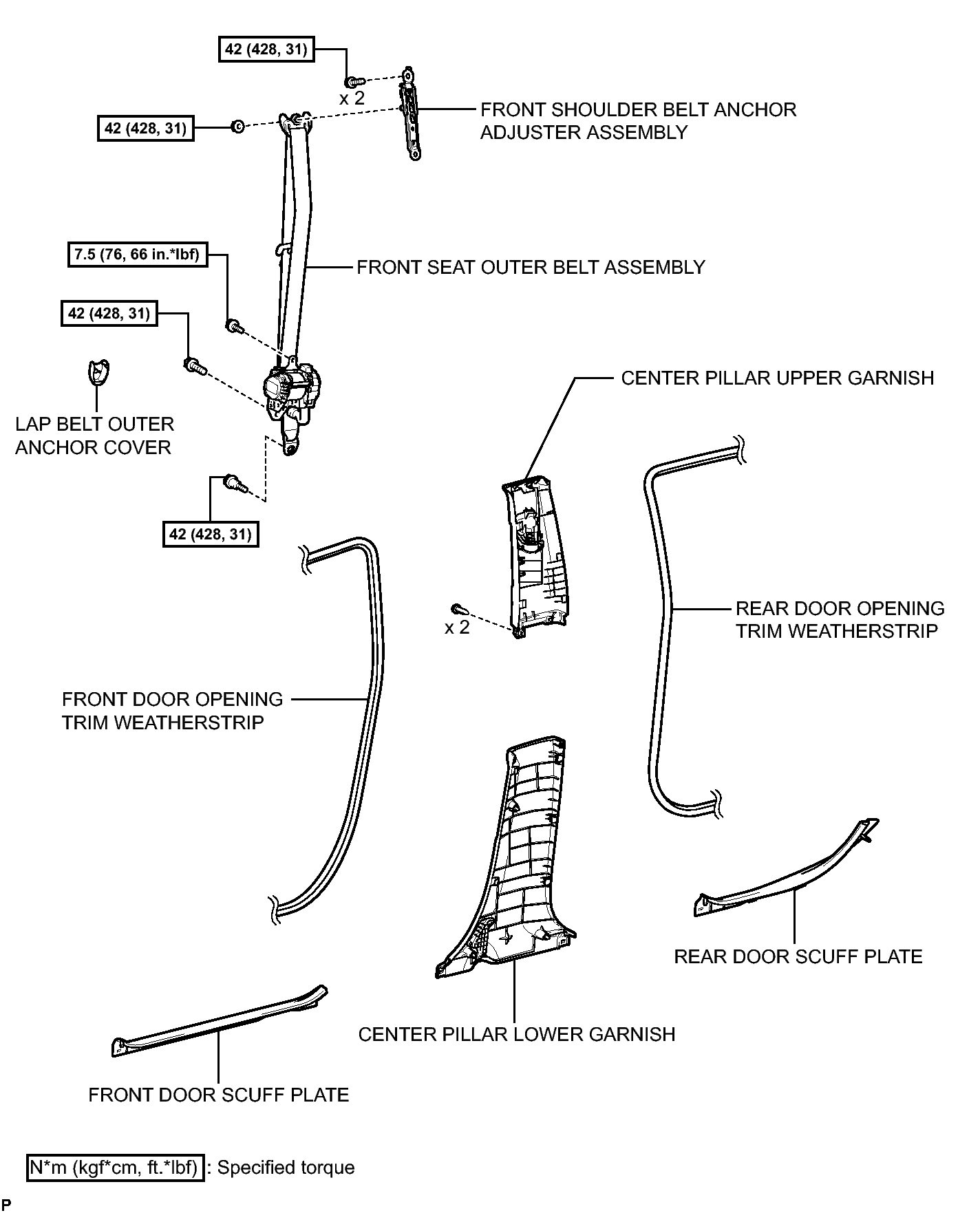

Fig 1: Identifying Front Seat Outer Belt Assembly Replacement Components With Torque Specifications
GTY321400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
