FRONT SEAT INNER BELT ASSEMBLY (for Power Seat): Components: Illustration

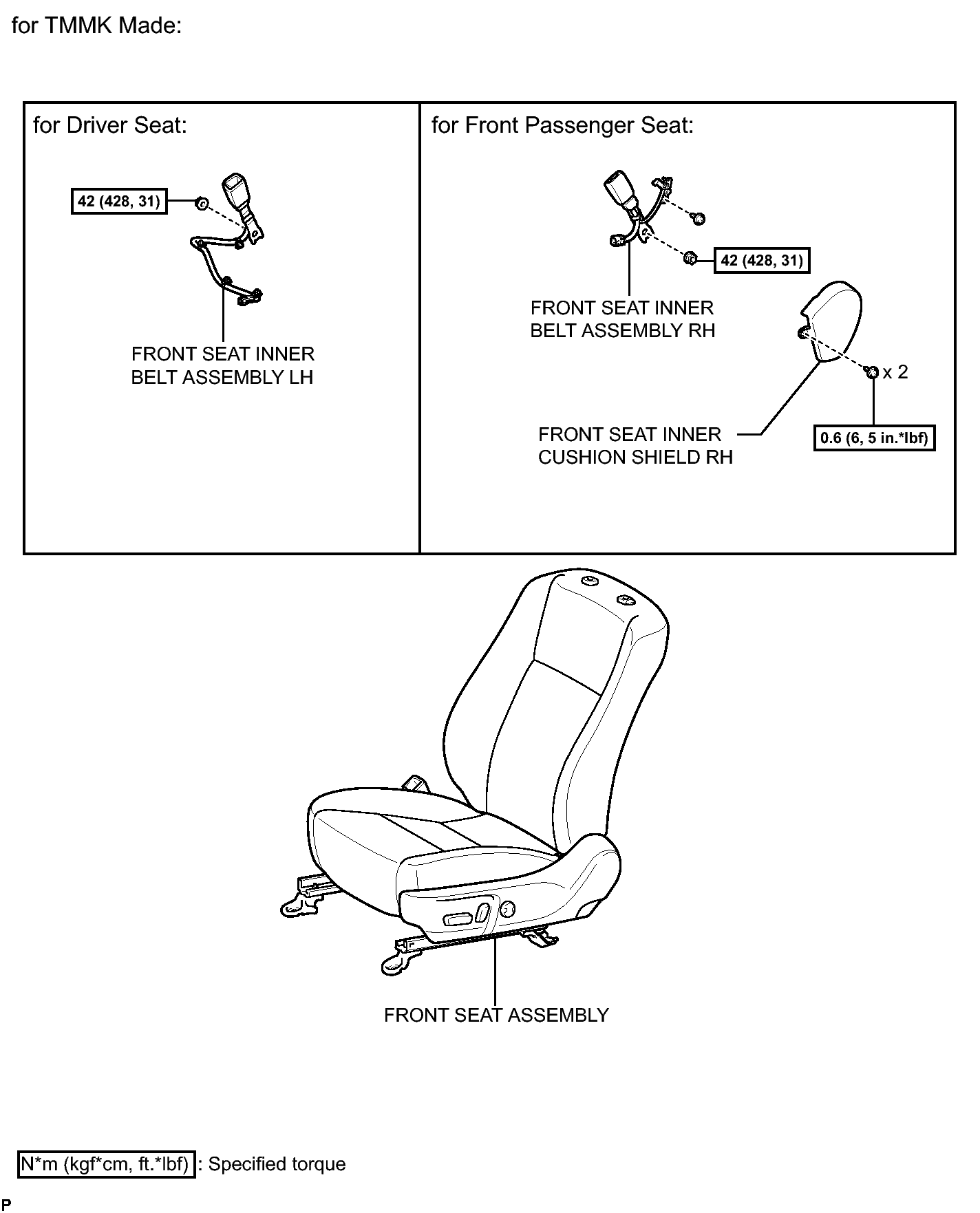

Fig 1: Identifying Front Seat Inner Belt Assembly (For Power Seat) (For TMMK Made) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

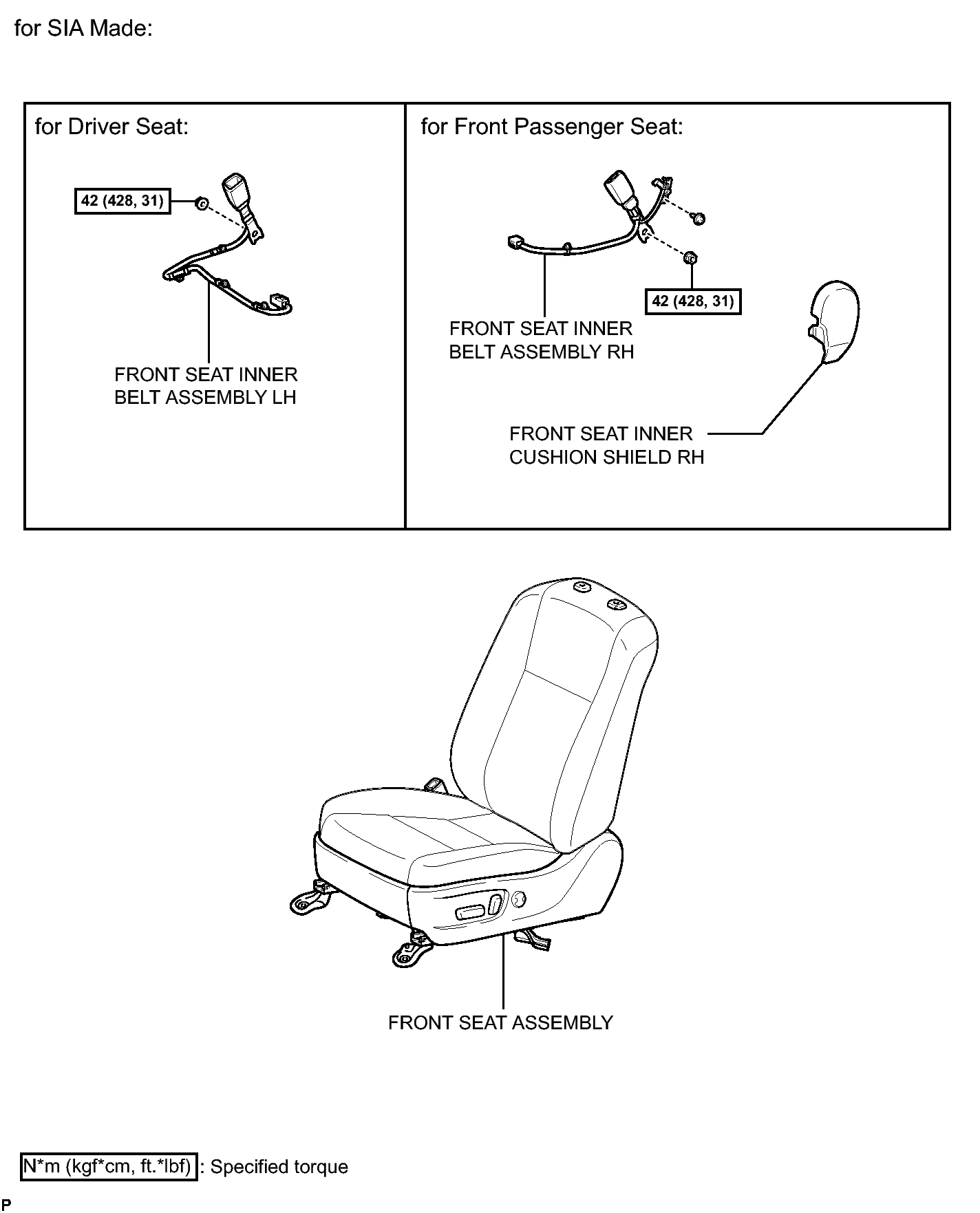

Fig 1: Identifying Front Seat Inner Belt Assembly (For Power Seat) (For SIA Made) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
