Child Restraint Seat Anchor Bracket: Components: Illustration

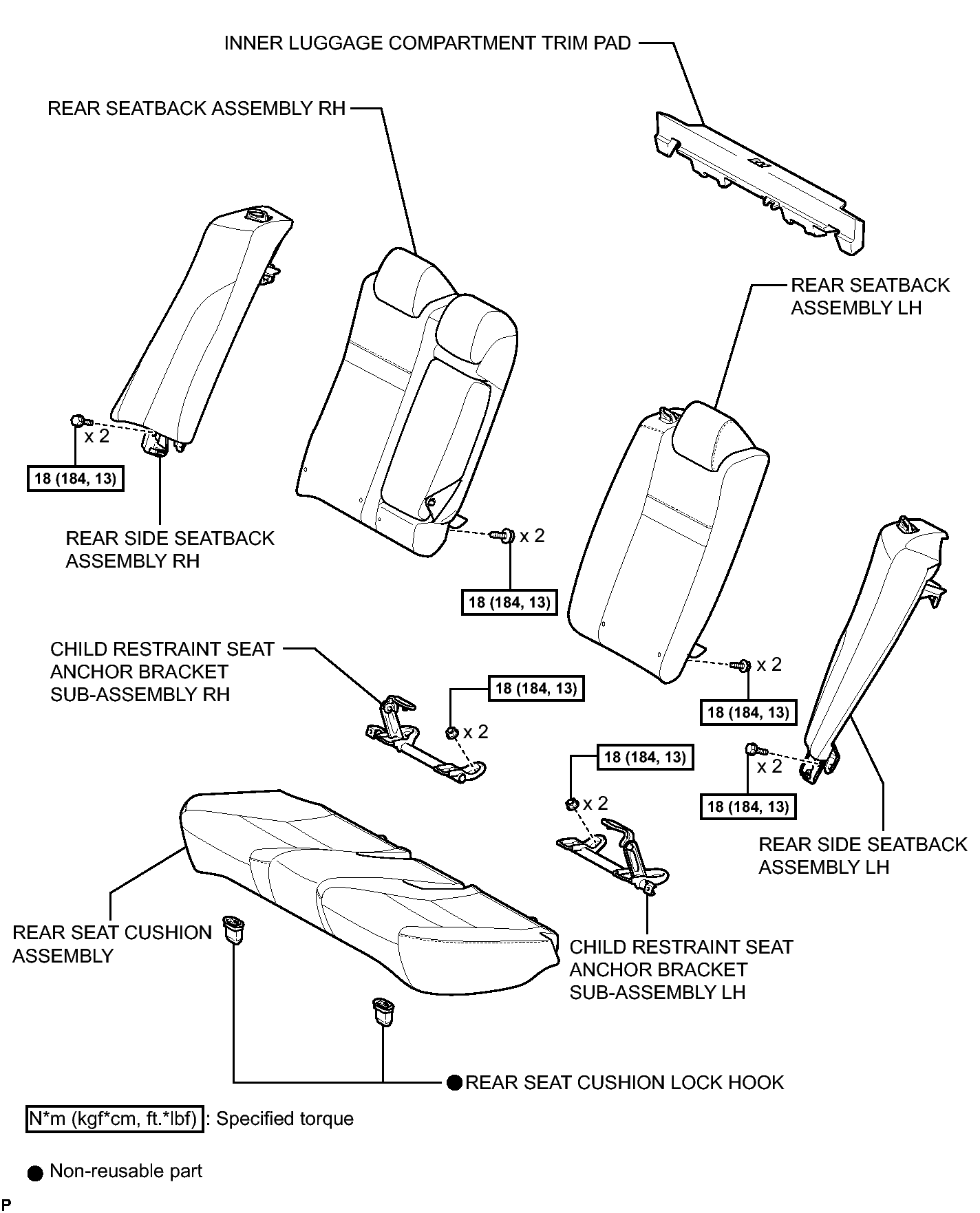

Fig 1: Identifying Child Restraint Seat Anchor Bracket Replacement Components With Torque Specifications
GTY318620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
