Horn, Shift Lock

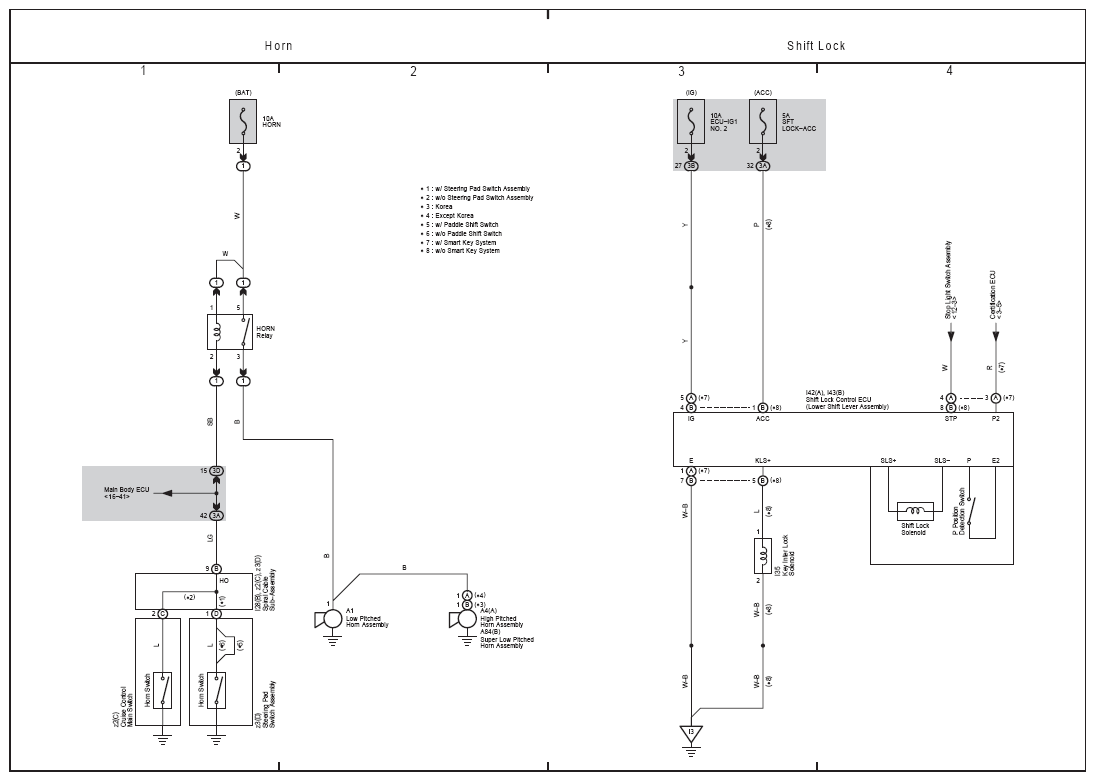

Fig 1: Horn And Shift Lock Electrical Wiring Diagram

G08798796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
