Rear Door Belt Moulding: Removal: Removal

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION .

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG  . Refer to DISASSEMBLY - Step 3 .
  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL  . Refer to DISASSEMBLY - Step 4 .
  5. REMOVE REAR ARMREST ASSEMBLY  . Refer to DISASSEMBLY - Step 5 .
  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY  . Refer to DISASSEMBLY - Step 6 .
  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP  . Refer to DISASSEMBLY - Step 8 .
  8. REMOVE REAR DOOR SERVICE HOLE COVER  . Refer to DISASSEMBLY - Step 9 .
  9. REMOVE REAR DOOR CHECK ASSEMBLY  . Refer to DISASSEMBLY - Step 10 .
  10. REMOVE REAR DOOR WEATHERSTRIP  . Refer to DISASSEMBLY - Step 11 .
  11. REMOVE REAR DOOR GLASS RUN  . Refer to DISASSEMBLY - Step 12 .
  12. REMOVE REAR DOOR LOWER WINDOW FRAME SUB-ASSEMBLY  . Refer to DISASSEMBLY - Step 13 .
  13. REMOVE REAR DOOR QUARTER WINDOW GLASS  . Refer to DISASSEMBLY - Step 14 .
  14. REMOVE REAR DOOR GLASS SUB-ASSEMBLY  . Refer to DISASSEMBLY - Step 15 .
  15. REMOVE REAR DOOR BELT MOULDING ASSEMBLY
    1. Put protective tape around the rear door belt moulding assembly.

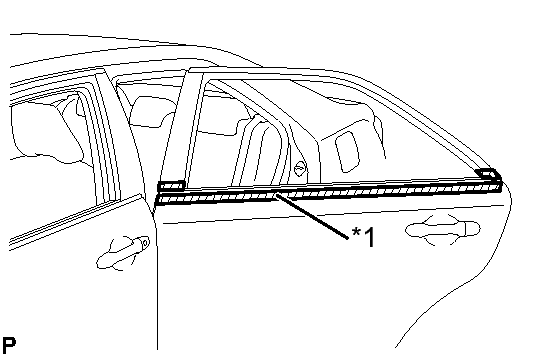

      Fig 1: Identifying Protective Tape On Rear Door Belt Moulding Assembly
      GTY319844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a screwdriver with the tip wrapped with protective tape, disengage the 6 claws to remove the rear door belt moulding assembly as shown in the illustration.

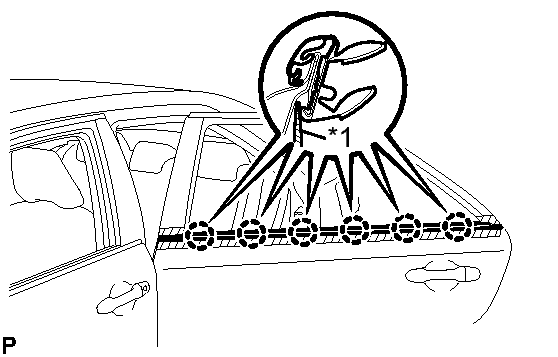

      Fig 2: Identifying Rear Door Belt Moulding Assembly Claws
      GTY316995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.
