Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

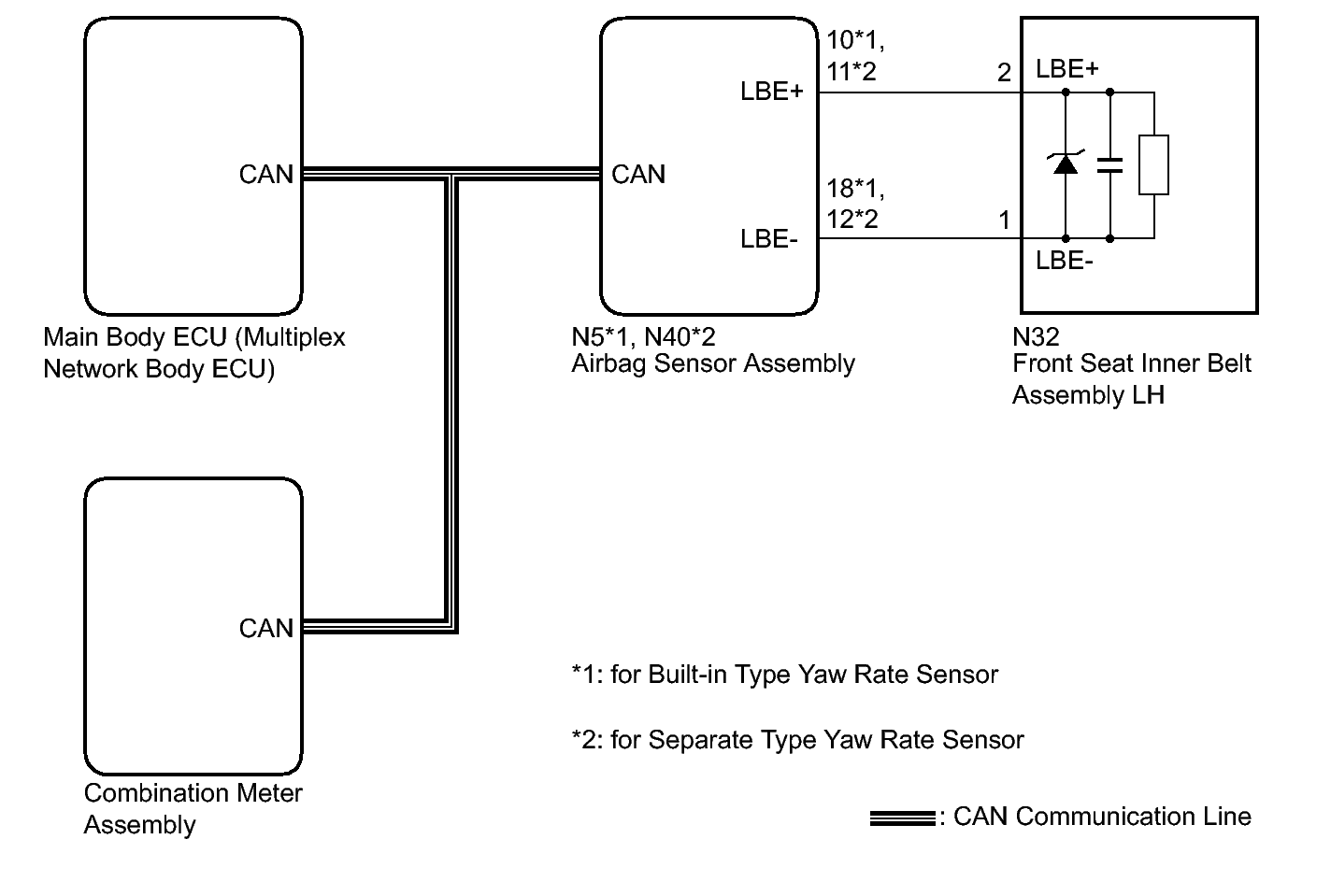

Fig 1: Driver Side Seat Belt Warning Light Circuit - Wiring Diagram

GTY323059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
