Parts Location: Illustration

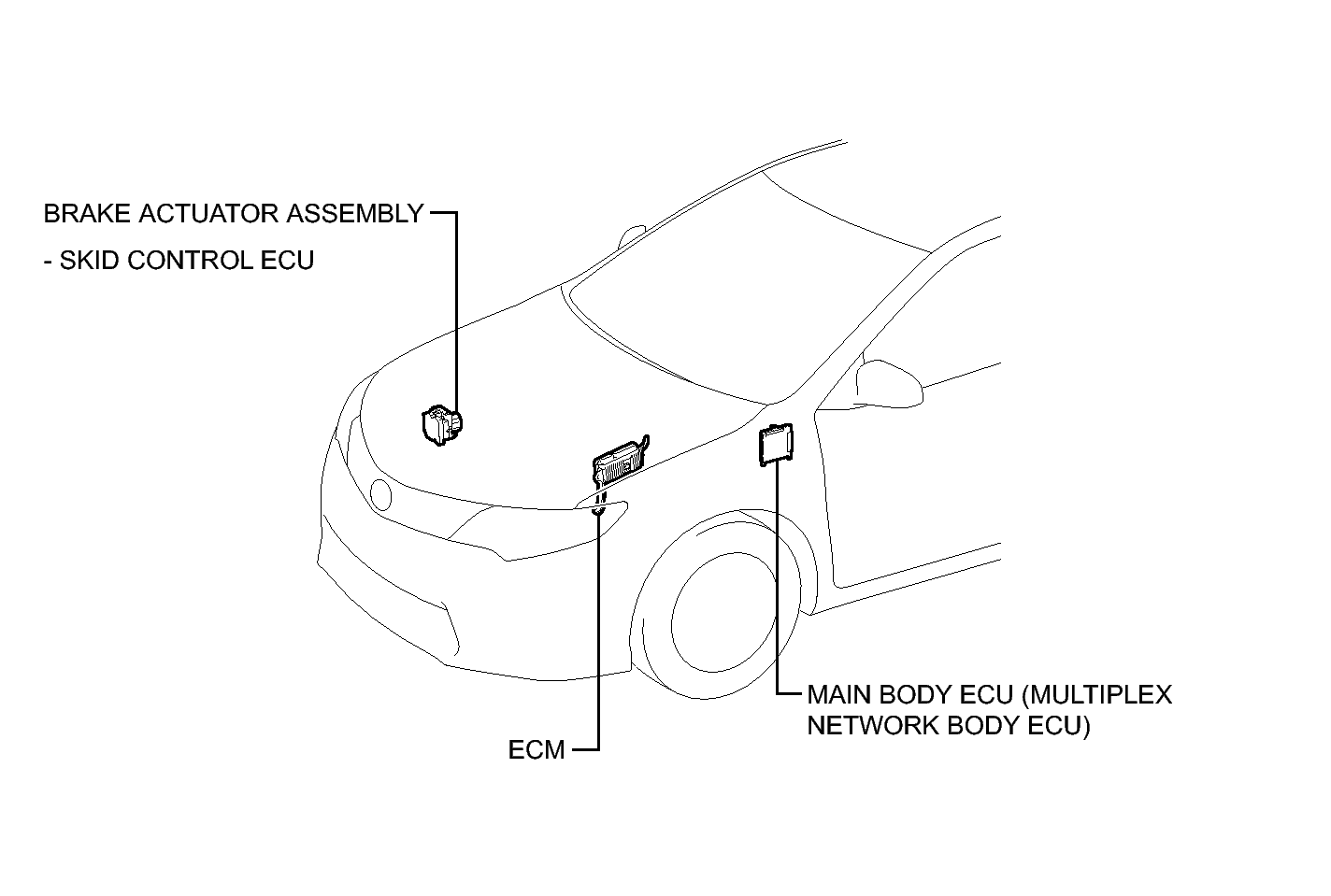

Fig 1: Identifying Seat Belt Warning System Components Location (1 Of 3)
GTY314706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

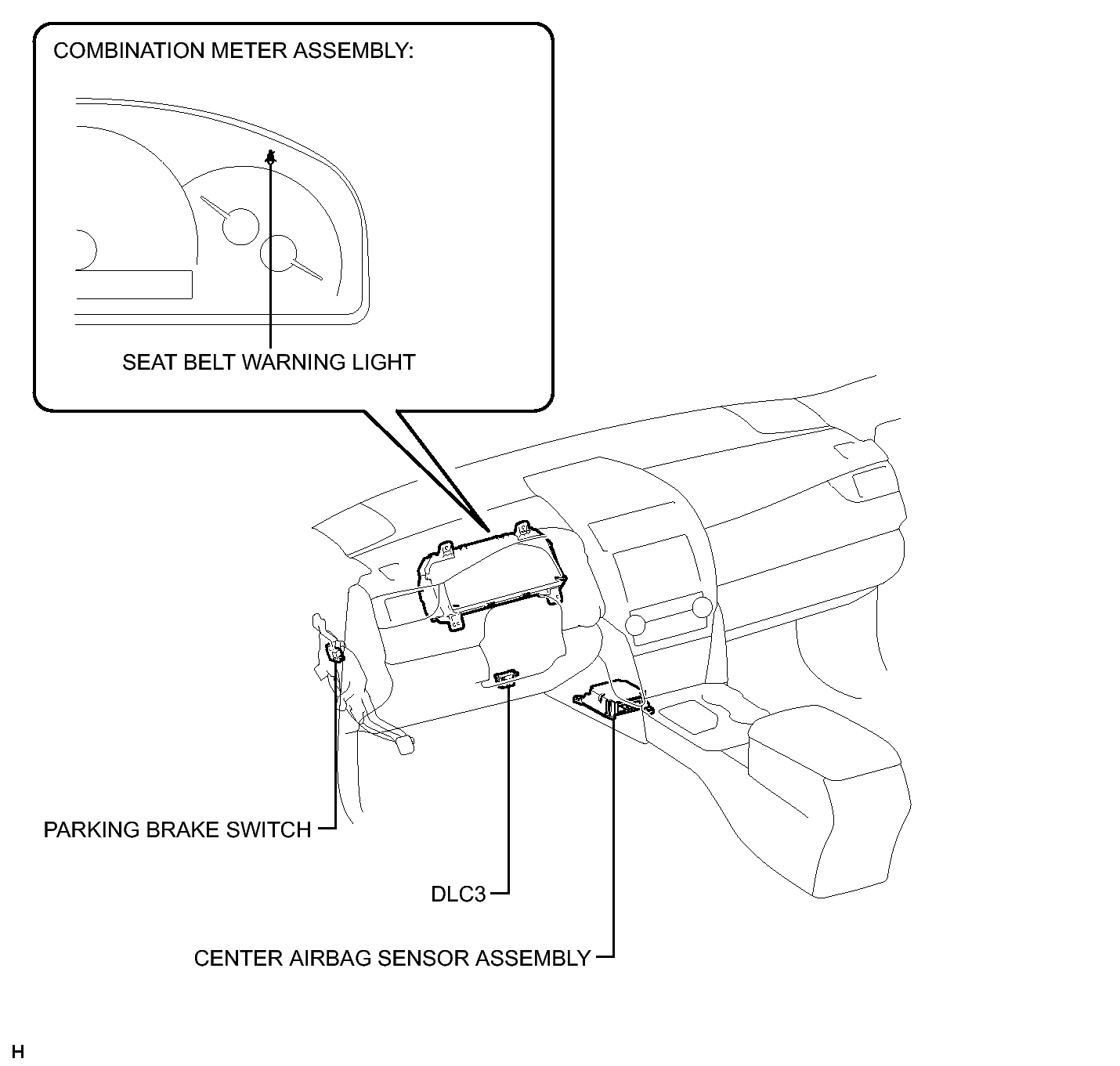

Fig 1: Identifying Seat Belt Warning System Components Location (2 Of 3)
GTY315243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

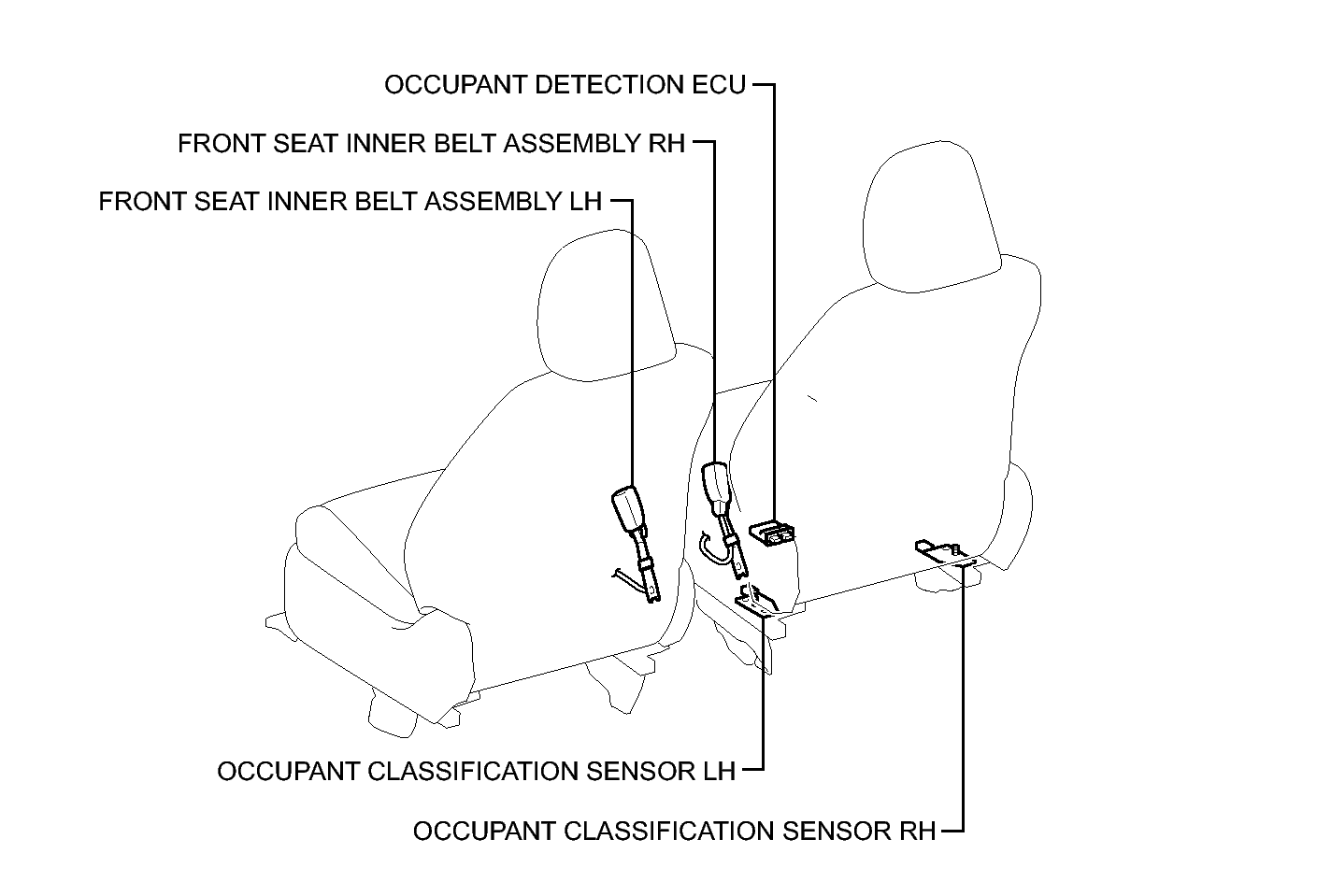

Fig 1: Identifying Seat Belt Warning System Components Location (3 Of 3)
GTY321265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
