Parts Location: Illustration

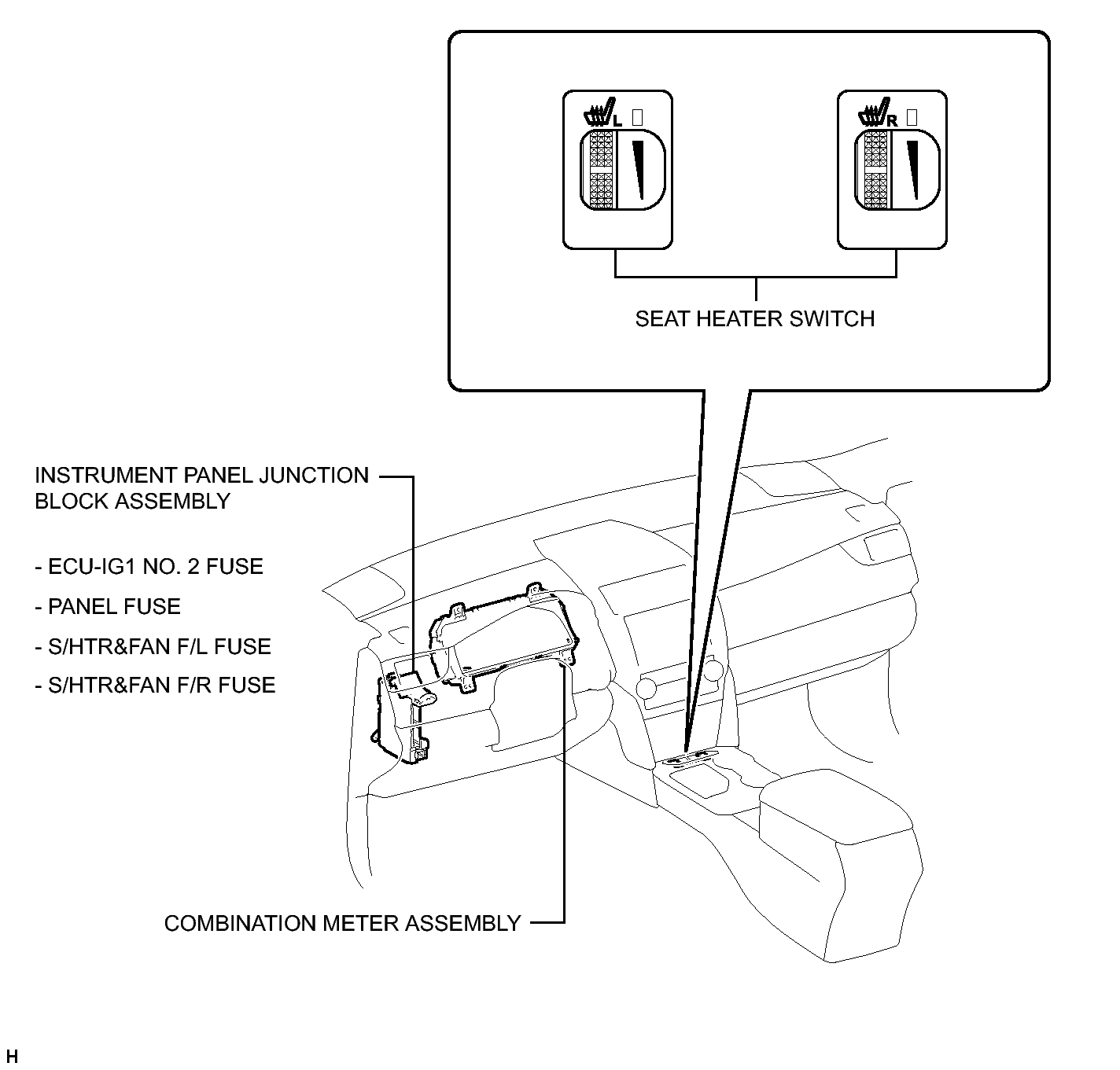

Fig 1: Identifying Seat Heater System Components Location
GTY320361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

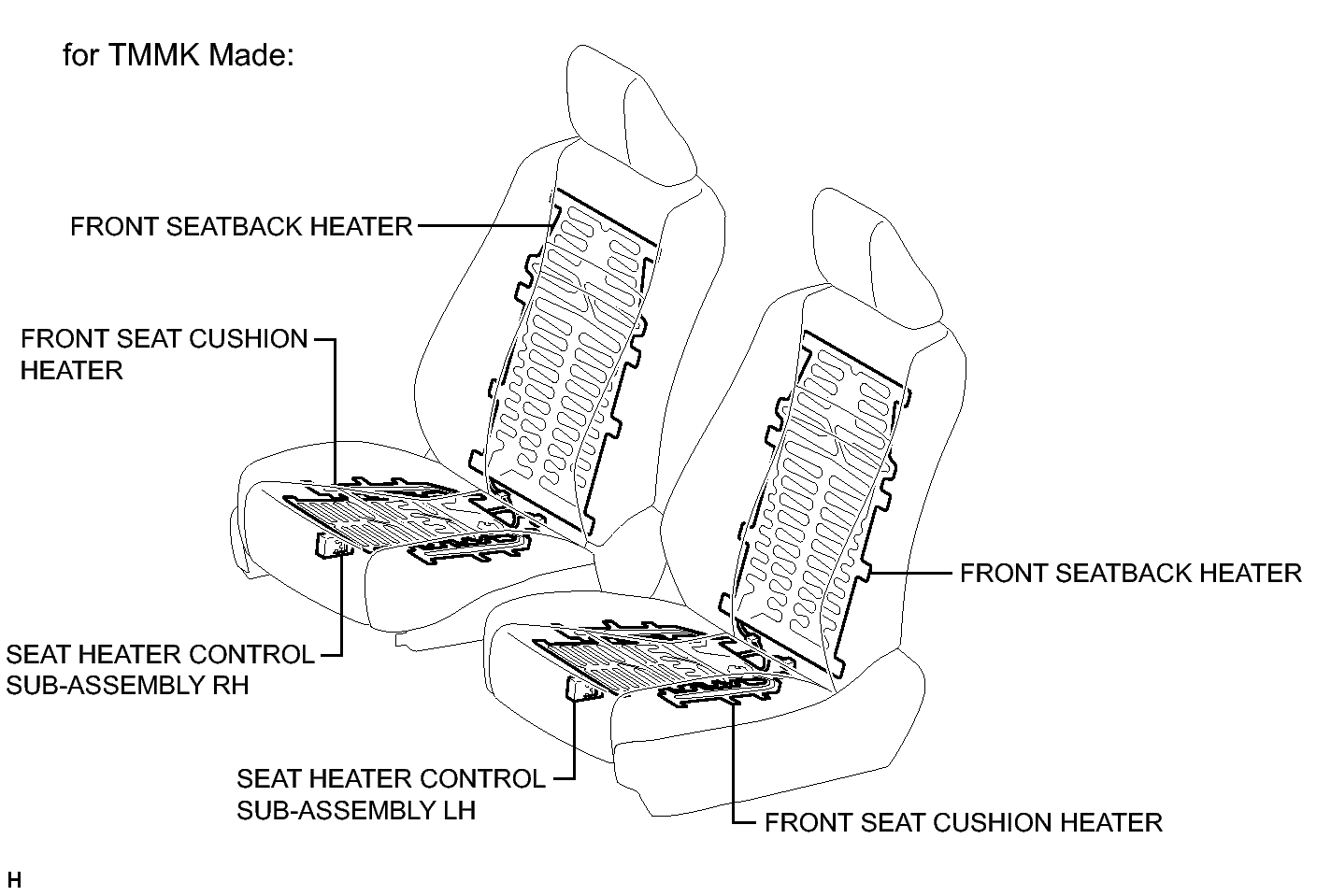

Fig 1: Identifying Seat Heater System Components Location (For TMMK Made)
GTY318223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

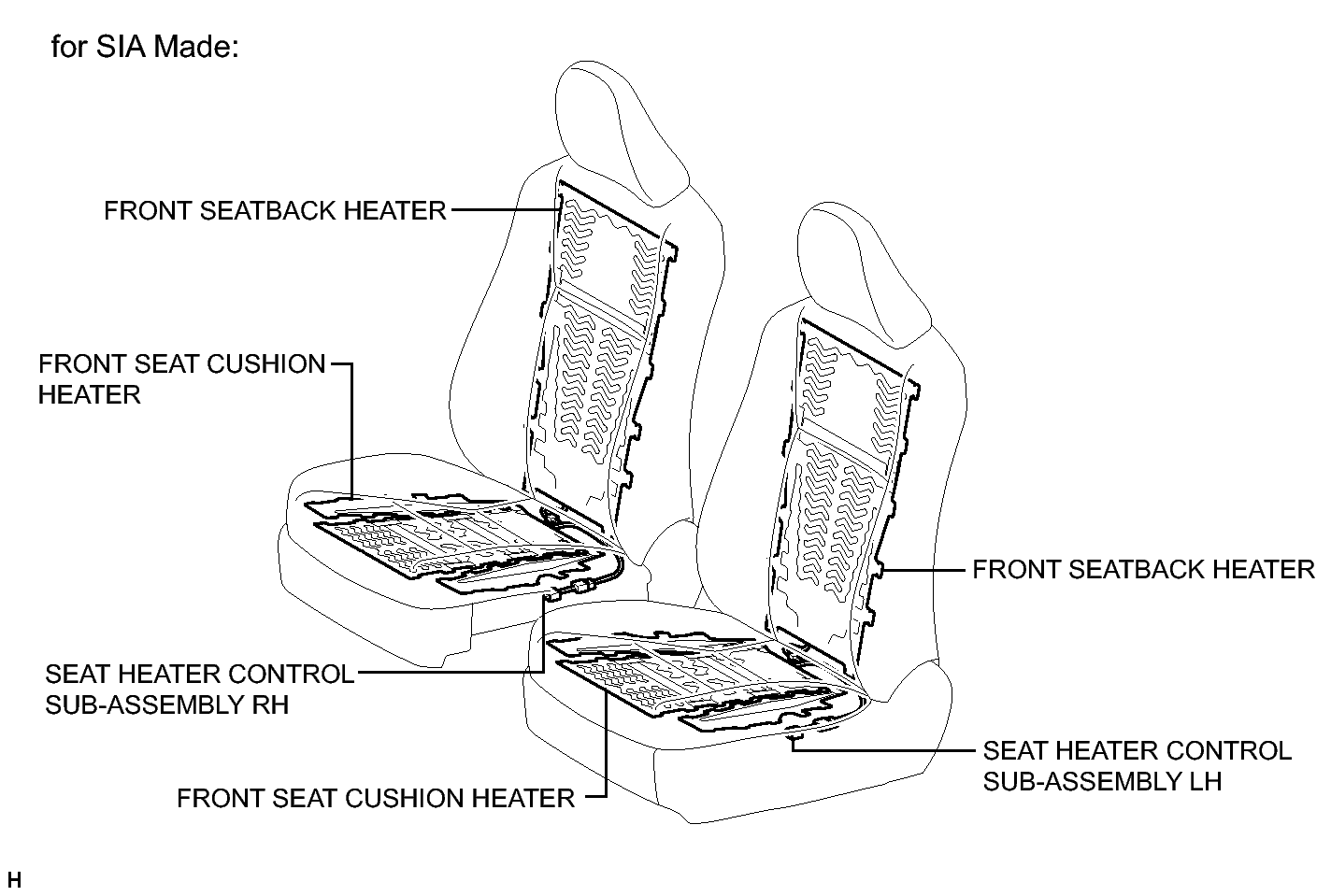

Fig 1: Identifying Seat Heater System Components Location (For SIA Made)
GTY321409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
