DTC B15C5: Manual Button Malfunction: Wiring Diagram

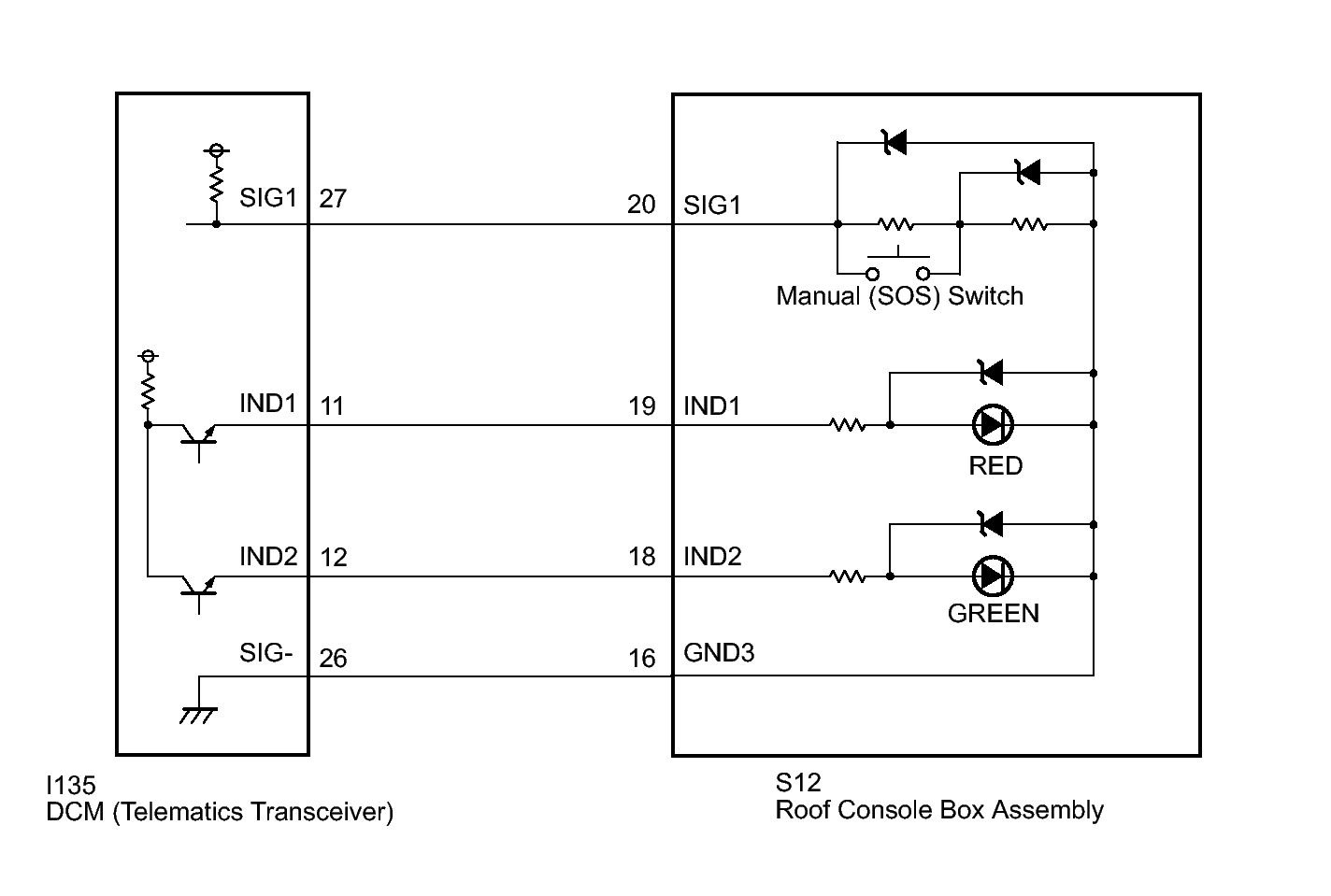

Fig 1: Manual (SOS) Switch Circuit - Wiring Diagram

GTY319436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
