Meter / Gauge / Display (Service Information) (Except Hybrid): Clock: Removal: Removal

REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY . Refer to REMOVAL - Step 23
REMOVE CLOCK ASSEMBLY
1. Remove the 2 screws and clock assembly with instrument cluster finish panel cover from the No. 1 center instrument cluster finish panel.

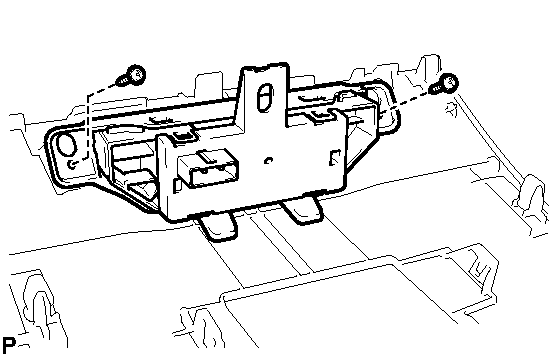

  Fig 1: Identifying Clock Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 4 claws and remove the clock assembly.

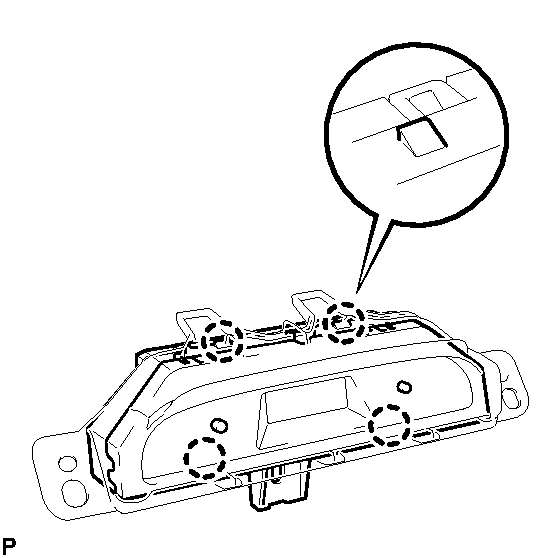

  Fig 2: Identifying Clock Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
