DTC P0A84-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit Low: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

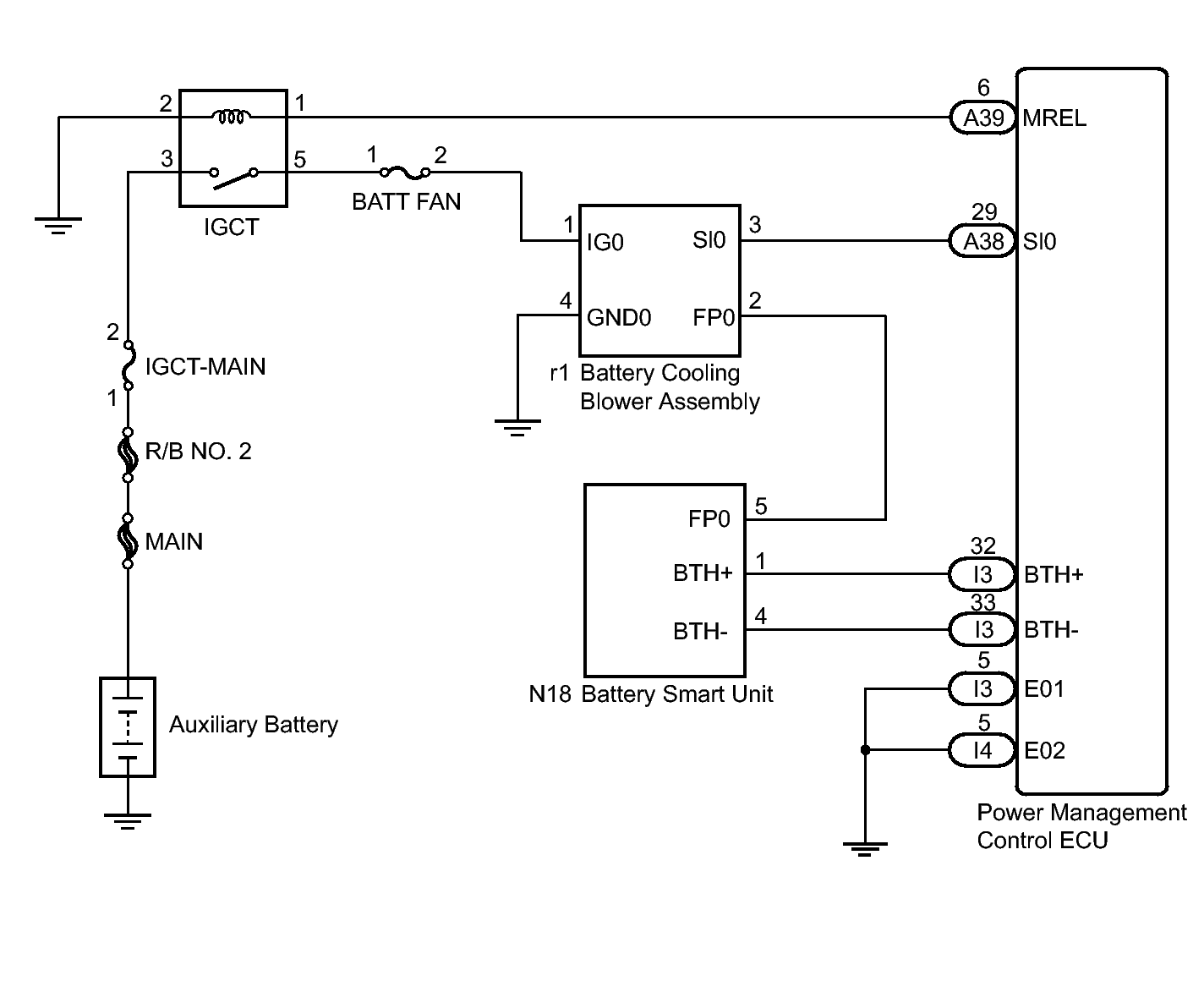

Fig 1: Hybrid Battery Pack Cooling Fan 1 Circuit - Wiring Diagram
GTY321413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
