Glossary Of Terms And Symbols

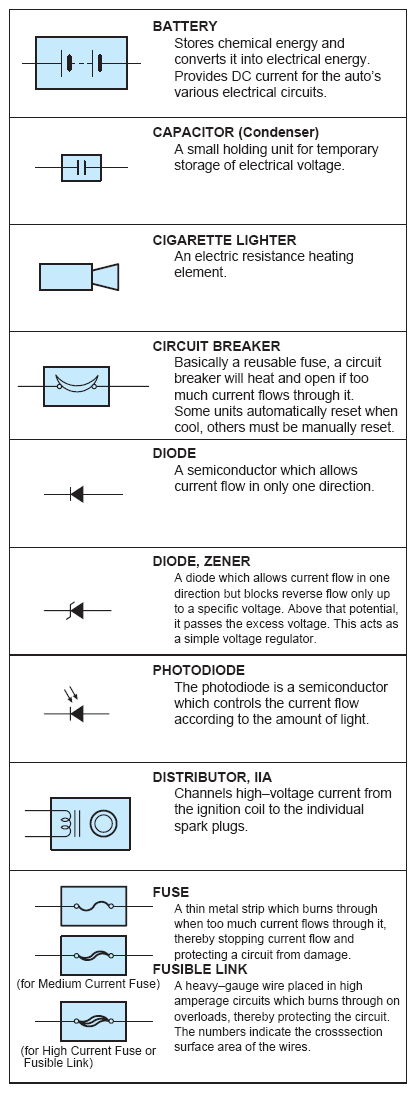

Fig 1: Glossary Of Terms And Symbols (1 Of 4)
G08792114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

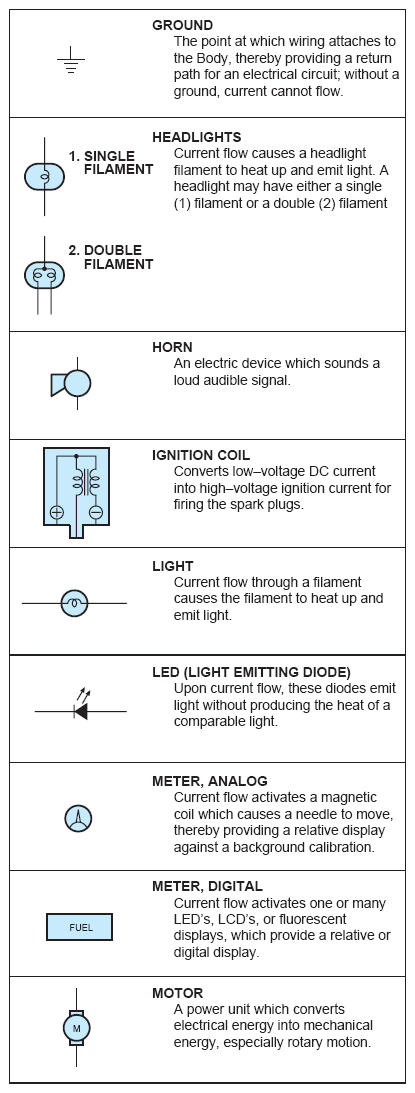

Fig 2: Glossary Of Terms And Symbols (2 Of 4)
G08792115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

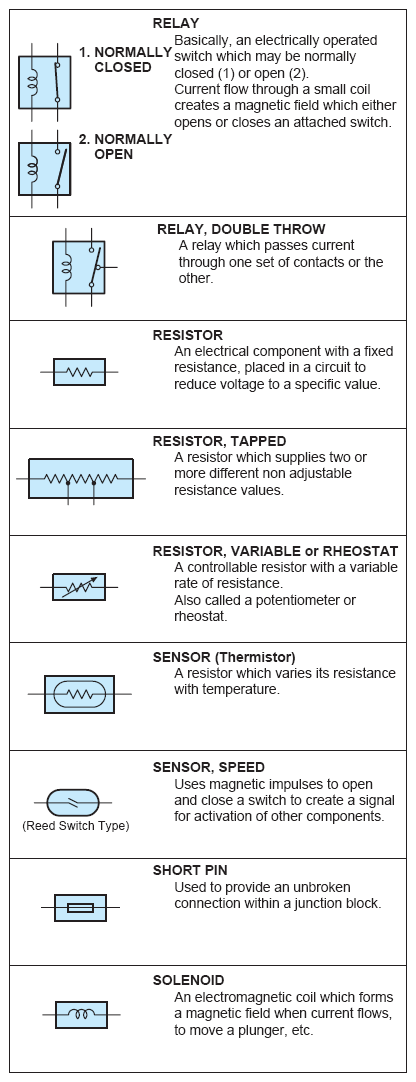

Fig 3: Glossary Of Terms And Symbols (3 Of 4)
G08792116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

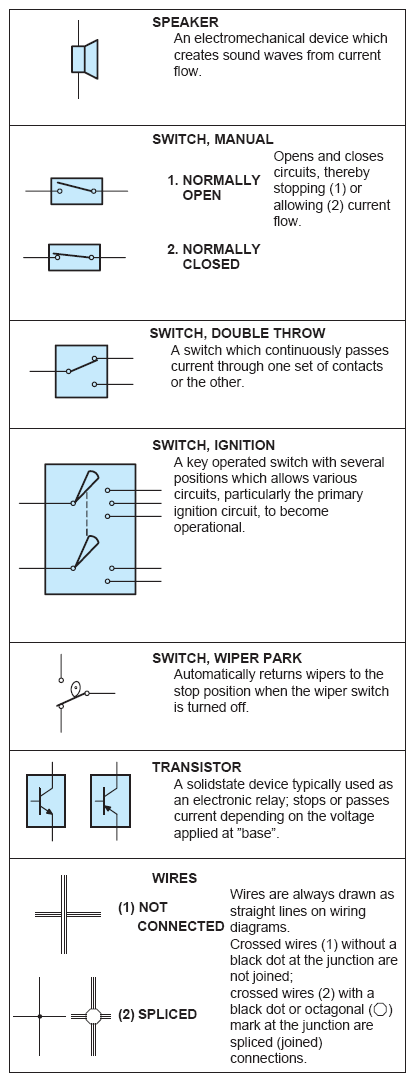

Fig 4: Glossary Of Terms And Symbols (4 Of 4)
G08792117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
