Brake Pedal: Components: Illustration

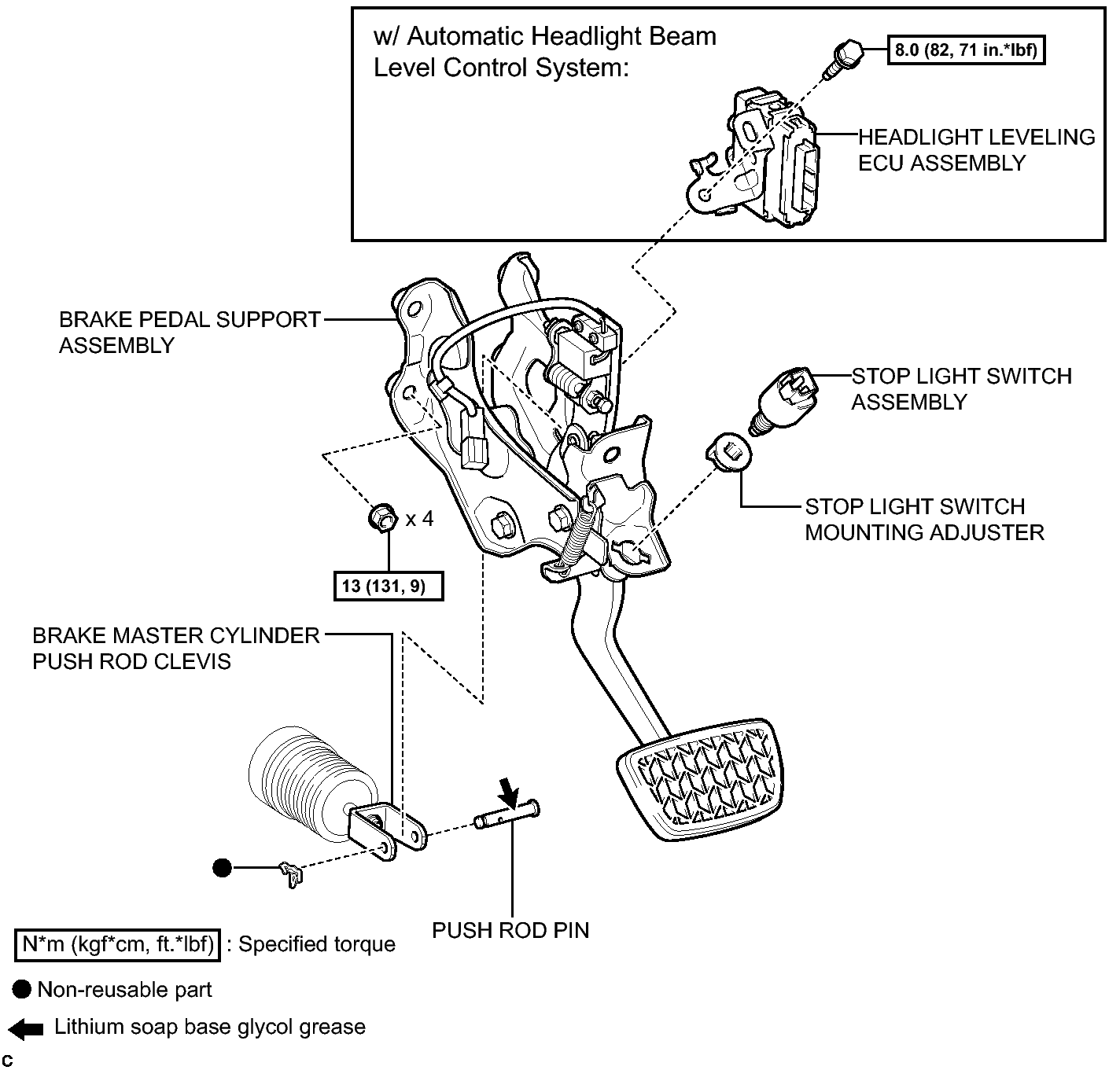

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (1 Of 2)
GTY317734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

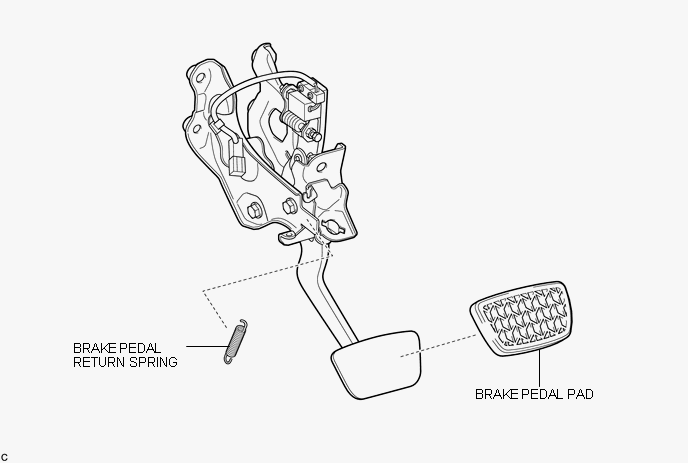

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
GTY319877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
