Brake Pedal: Adjustment: Adjustment

  1. INSPECT AND ADJUST BRAKE PEDAL HEIGHT
    1. Check the brake pedal height.
      1. Turn back the carpet.
      2. Turn back the dash panel insulator assembly from the slit provided on the dash panel insulator assembly.
      3. Measure the shortest distance between the brake pedal pad surface and floor panel.

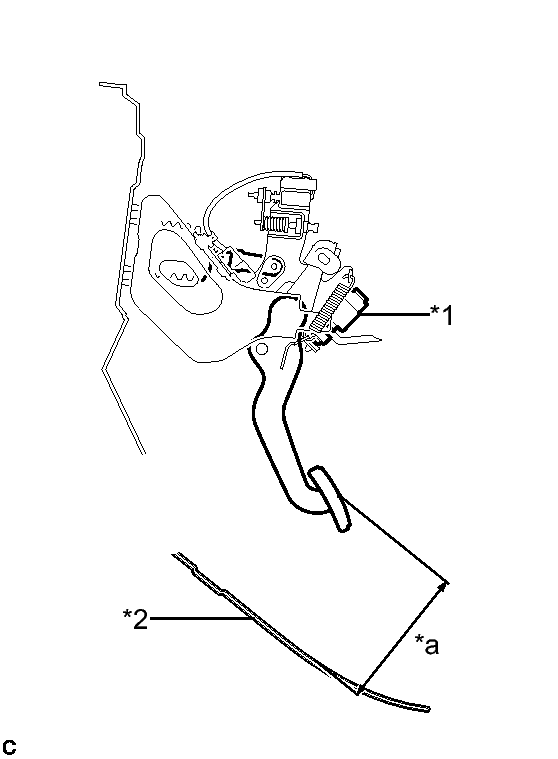

        Fig 1: Identifying Stop Light Switch Assembly, Floor Panel And Brake Pedal Height
        GTY318550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Stop Light Switch Assembly
        *2 Floor Panel
        *a Brake Pedal Height

        Pedal height from floor panel

        138.5 to 148.5 mm (5.46 to 5.84 in.)

        If pedal height is incorrect, inspect and adjust the push rod length according to the procedure below.

    2. Adjust the push rod length.
      1. Remove the stop light switch assembly. Refer to REMOVAL - Step 1 .
      2. Remove the brake booster assembly. Refer to REMOVAL .
      3. Loosen the lock nut and adjust the push rod length shown in the illustration by turning the brake master cylinder push rod clevis to achieve the correct length.

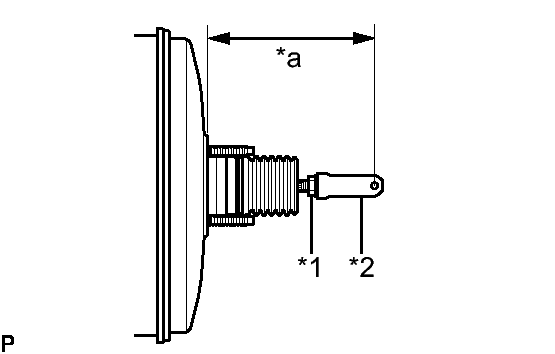

        Fig 2: Identifying Lock Nut And Brake Master Cylinder Push Rod Clevis
        GTY322125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Lock Nut
        *2 Brake Master Cylinder Push Rod Clevis
        *a Push Rod Length

        Push rod length

        148.6 to 149.6 mm (5.86 to 5.88 in.)

      4. Tighten the lock nut.

        Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

      5. Install the brake booster assembly. Refer to INSTALLATION .
        • If the pedal height is incorrect even when the push rod length is adjusted, check the brake pedal support assembly and floor panel.
        • If necessary, replace the brake pedal support assembly.
      6. Install the stop light switch assembly. Refer to INSTALLATION - Step 1 .
    3. After adjusting the pedal height, check the brake pedal free play.
  2. INSPECT BRAKE PEDAL FREE PLAY
    1. Stop the engine and firmly depress the brake pedal several times until no vacuum is left in the booster.
    2. Depress the pedal until a slight resistance is felt. Measure the distance as shown in the illustration.
      Fig 3: Identifying Brake Pedal Free Play
      GTY275213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Brake Pedal Free Play

      Pedal free play

      1.0 to 6.0 mm (0.0394 to 0.236 in.)

      If the pedal free play is not as specified, check the stop light switch clearance. Refer to INSTALLATION - Step 1 . If the pedal free play is as specified, proceed to the Inspect Brake Pedal Reserve Distance procedure in step  3.

  3. INSPECT BRAKE PEDAL RESERVE DISTANCE

    HINT:

    Measure the distance at the same point used for the brake pedal height inspection.

    1. Release the parking brake.
    2. With the engine running, depress the brake pedal and measure the pedal reserve distance.

      Pedal reserve distance from the floor panel at 500 N (51 kgf, 112 lbf)

      More than 96.0 mm (3.78 in.)

      If the distance is not as specified, troubleshoot the brake system. Refer to PROBLEM SYMPTOMS TABLE .
