Rear Wheel House Plate: Removal: Removal

  1. REMOVE FRONT ROCKER PANEL MOULDING END COVER
    1. Remove the 2 screws and front rocker panel moulding end cover.

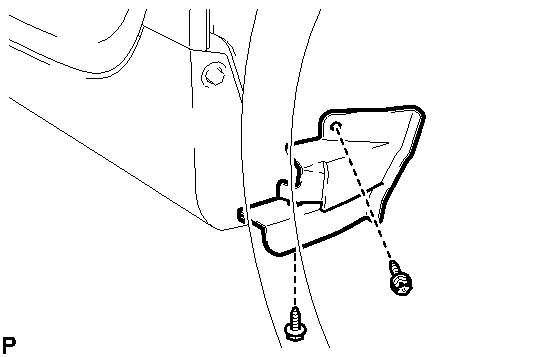

      Fig 1: Identifying Front Rocker Panel Molding End Cover Screws
      GTY316286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
