Rear Spoiler: Components: Illustration

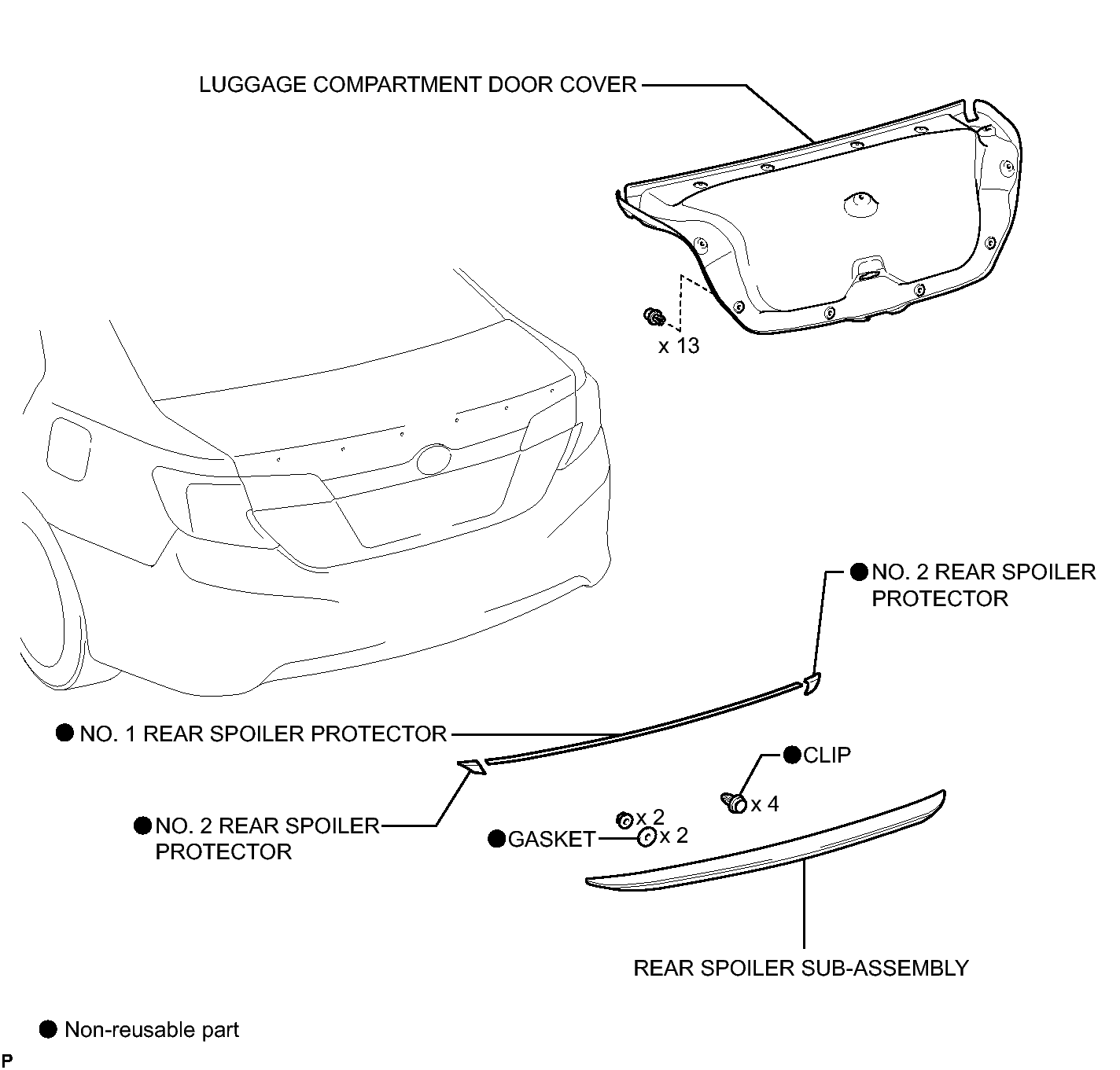

Fig 1: Identifying Rear Spoiler Replacement Components (1 Of 2)
GTY321362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

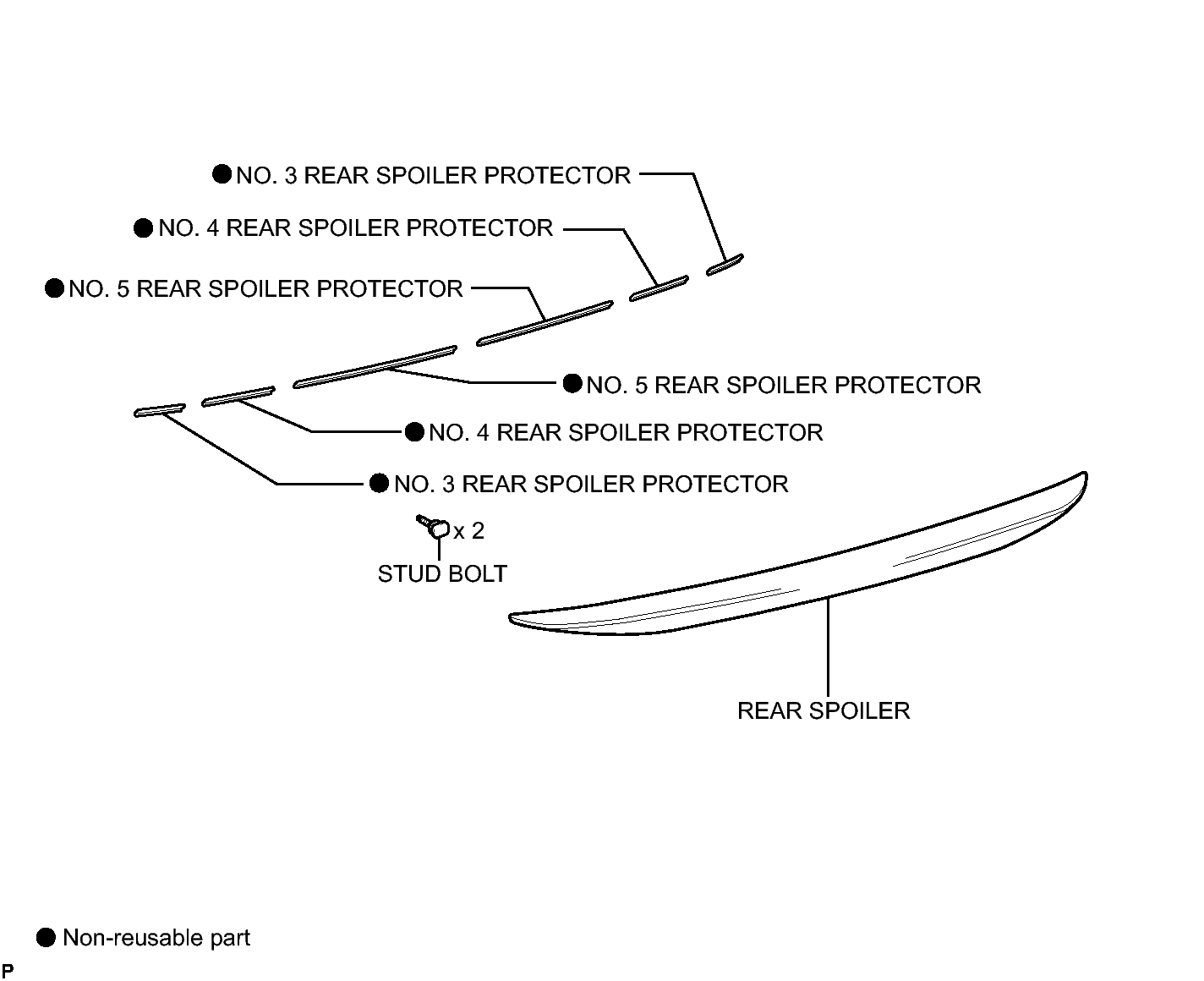

Fig 1: Identifying Rear Spoiler Replacement Components (2 Of 2)
GTY322875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
